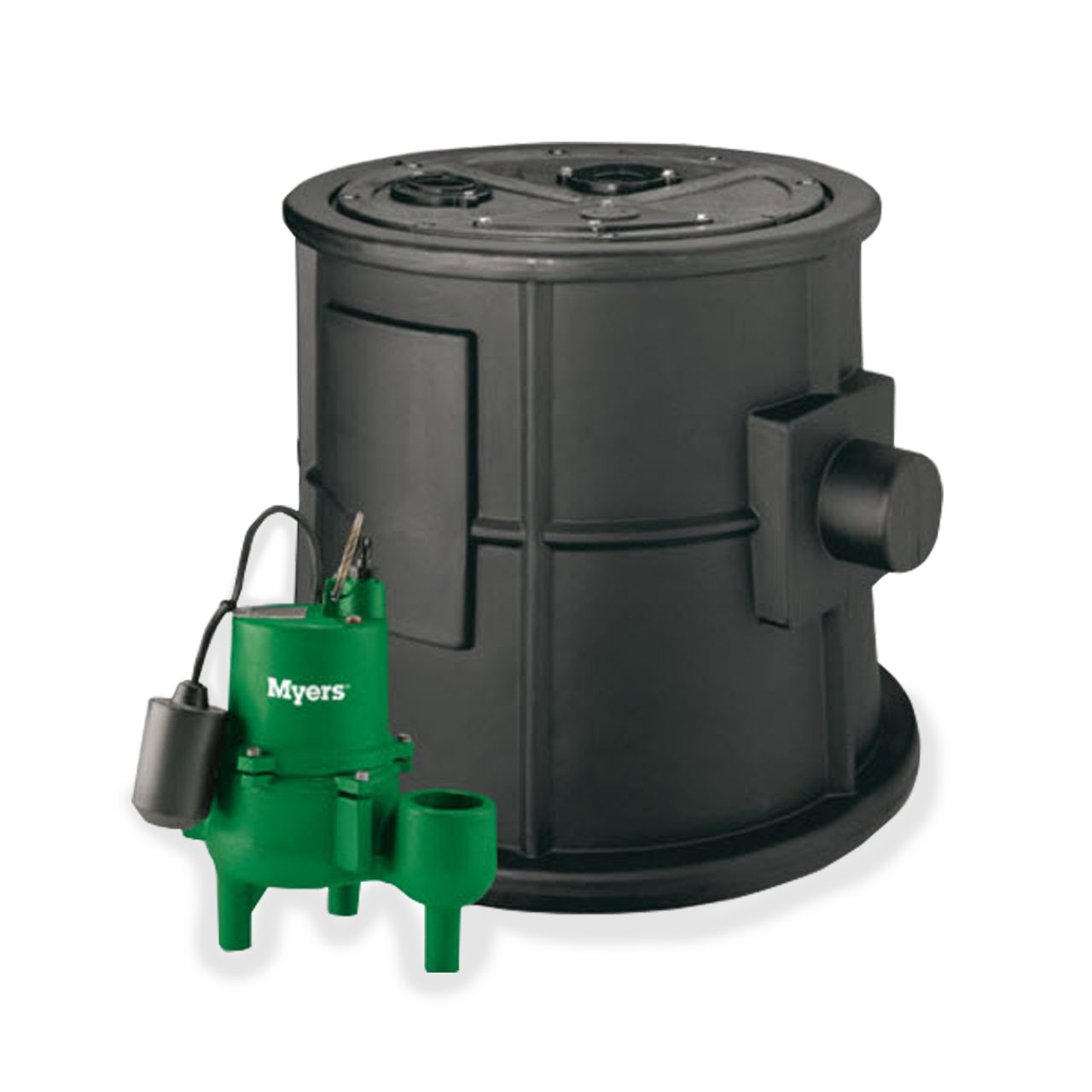

Myers SRM-BP-SA1 Packaged Sewage System 0.4 HP 115V 20' Cord
Myers SRM-BP-SA1 Packaged Sewage System 0.4 HP 115V 20' Cord
SKU : MYRSRMBPSA1
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
ITEM HAS BEEN DISCONTINUED, SEE REPLACEMENT: Myers SB24SRM Packaged Sewage System 0.4 HP 115V 20' Cord
Myers SRM-BP Sewage Basin Pro Package Description
The Myers SRM-BP BasinPro Packaged Sewage System is an ideal choice for new construction or retrofit. Installer-friendly features include a 360° Top Grip for easy installation. The E-Z Switch Rod lets you easily remove the float switch without affecting the basin lid, pump or plumbing. Available with a 4/10 HP high endurance motor, with 2” solidshandling capacity. Passive radon protection provided by gas-tight seal between structural foam lid and basin.
Myers SRM-BP Typical Applications
- Sewage
- High-Capacity Sump
- Effluent
Myers SRM-BP Features
- Fully Assembled Pump SRM4P is pre-installed in basin, with integral torque stops to ensure stability
- Power for versatile applications
- Residential septic tank sewage
- Large sumps
- Long-lasting performance
- Rotary shaft seal has carbon and ceramic faces for positive seal
- Thermal overload protection with automatic reset
- Oil-filled motor for maximum heat dissipation and continuous bearing lubrication
- Recessed vortex impeller for free flow of liquids, solids up to 2 in. diameter
- Available with alarm
Specifications
Specifications
Myers SRM4P Sewage Pump Specifications
- BODY CONSTRUCTION: Pump: Cast Iron / Basin: Structural Foam
- HORSEPOWER: 0.4 HP
- MAXIMUM HEAD: up to 19'
- MAXIMUM CAPACITY: up to 95 GPM
- FLOW AT 10' LIFT: 60 GPM
- SWITCH TYPE: Tethered
- DISCHARGE PIPE SIZE: 2.0" NPT
- MAXIMUM SOLIDS HANDLING SIZE: 2.0"
- CORD LENGTH: 20'
- AMP DRAW (full load): 12.0
- VOLTAGE: 1ø, 115V, 60 Hz
- MAXIMUM LIQUID TEMPERATURE: 140°F
Myers SRM4P Performance Data
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Myers SRM-BP Product Resources
Download Myers SRM-BP Specification Data
