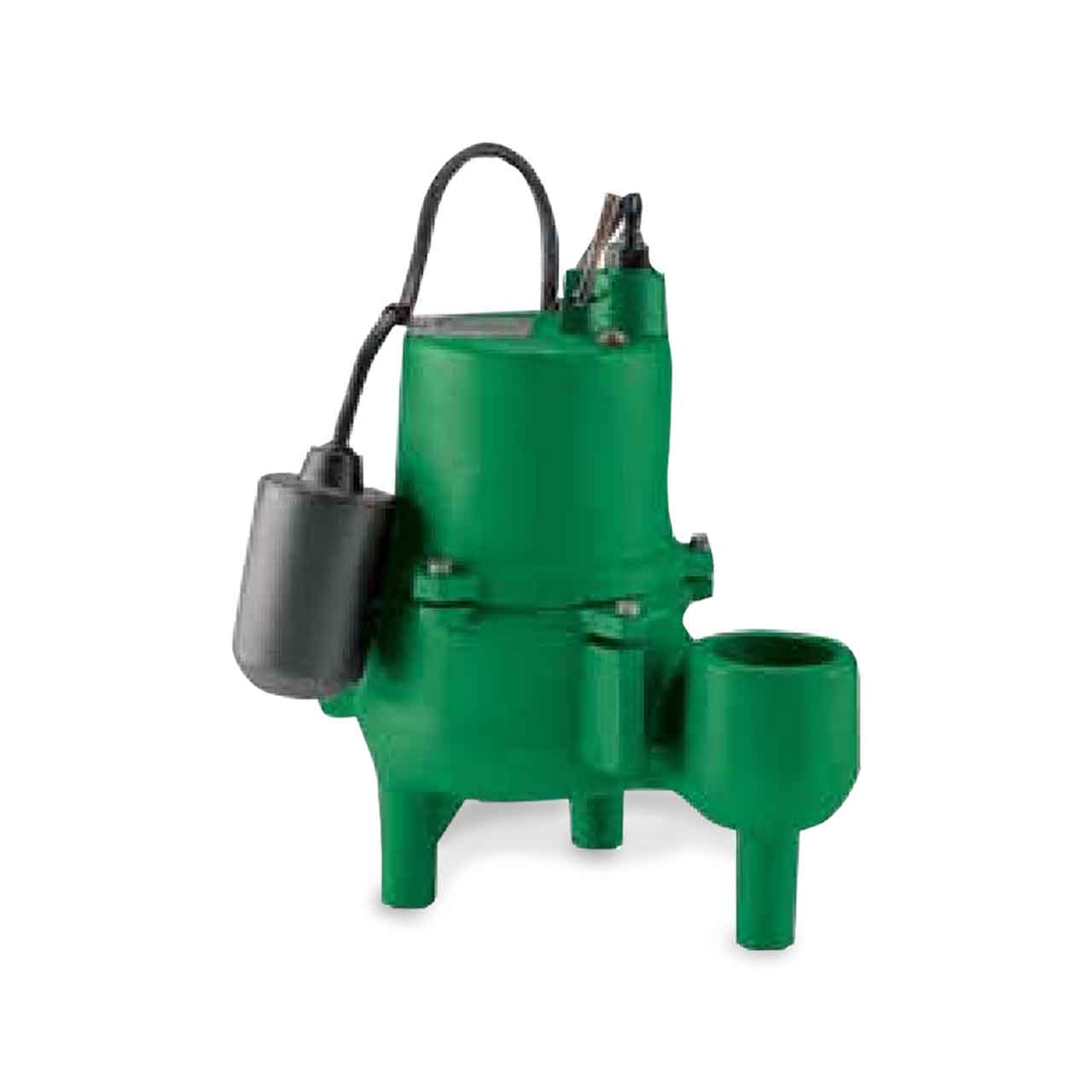

Myers SRM4 Series Sewage Pump Description

The Myers SRM4 Series residential sewage pumps are considered by industry pros to be extremely reliable. The specially designed recessed impeller allows 2" solids to easily pass through without jamming. The cast iron housing and volute case handle the harshest conditions and will provide years of service. Automatic and Manual models available.

Myers SRM4 Series Sewage Pump Typical Applications

• Sewage
• High-Capacity Sump
• Effluent

Myers SRM4 Series Sewage Pump Features

• Versatile Applications: Effective and Efficient Performance in Septic Tank Sewage, Effluent and High-Capacity Sump Applications.
• Handles the Heat: High-Endurance, Oil-Cooled Motor for Continuous Bearing Lubrication and Critical Heat Dissipation.
• Powerful Torque: High-Torque, Permanent Split Capacitor (PSC) Motor; No Starting Switches or Relays to Wear Out.
• Motor Protection: Long-Life Carbon/Ceramic Seal Provides Extra Protection Against Water Leaks.
• Excess Heat Detection: Internal Heat Sensor Provides Overload Protection; Automatically Resets when Motor Cools to a Safe Operating Temperature.
• Free-Flow Design: Recessed Impeller Design also Improves the Free Flow of Solids up to 2".
• Longer Bearing Life: Recessed Impeller Reduces Radial Bearing Loads, Increasing Bearing Life.
• Automatic and Manual: Automatic Tethered, Vertical or Diaphragm Switch Models (with piggyback plug) or Manual Operation Models.
• CSA Listed

Myers SRM4PC-1 Series Sewage Pump Specifications

• VOLTAGE: 1ø, 115V, 60Hz
• HORSEPOWER: 0.4 HP
• AMP DRAW (full load): 12.0
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 1650
• MAXIMUM HEAD: up to 18'
• MAXIMUM CAPACITY: up to 95 GPM
• SWITCH TYPE: Tethered Switch w/ Piggyback Plug
• DISCHARGE PIPE SIZE: 2.0" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 2.0"
• IMPELLER TYPE: Thermoplastic, Recessed
• CORD LENGTH: 20'
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)

Myers SRM4 Series Sewage Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers SRM4 Series Sewage Pump Product Resources

Download Myers SRM4 Series Sewage Pump Data Sheet

Download Myers SRM4 Series Sewage Pump Brochure

Download Myers SRM4 Series Sewage Pump Installation & Service Manual
