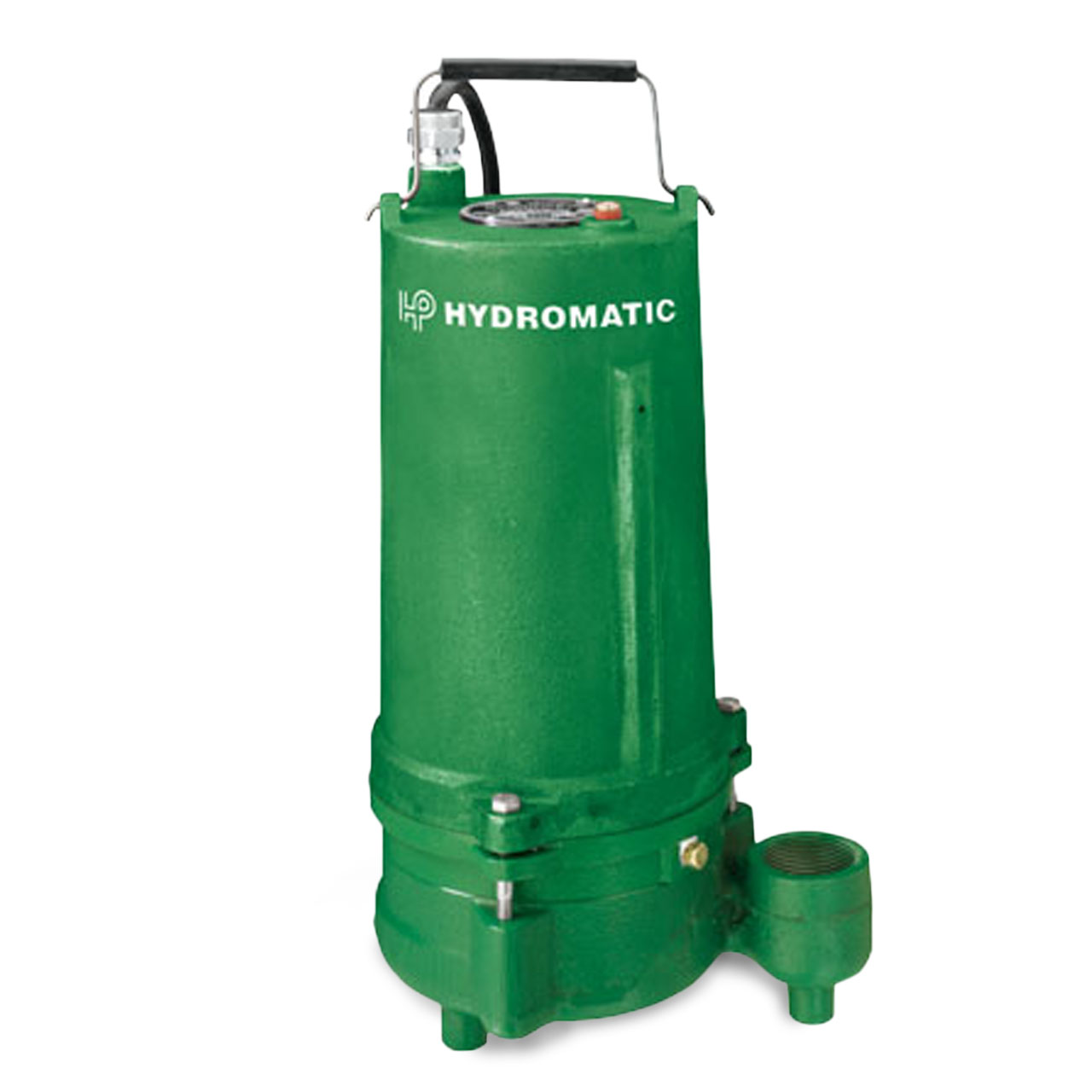

Hydromatic SKHD150M5 Sewage Effluent Pump 1.5 HP 575V 3 PH Manual 20' Cord Seal Failure Sensor
Hydromatic SKHD150M5 Sewage Effluent Pump 1.5 HP 575V 3 PH Manual 20' Cord Seal Failure Sensor
SKU : HTC517500157
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Commercial/Municipal/Industrial Supplier for Idaho. Commercial Supplier for Washington and Oregon.
Item Discontinued, See Similar Replacement: Myers P102 Effluent Pump 1.0 HP 230V 1 PH Double Seal 20' Cord
Hydromatic SKHD150 Description
The Hydromatic SKHD150 submersible pump is specifically designed to meet the demands of septic tank effluent and industrial sump applications that require a “high-head,” dual-sealed pump.
Hydromatic SKHD150 Typical Application
- Septic Tank Effluent
- High-Head Dewatering
- High-Head Sump
Hydromatic SKHD150 Superior Features
- Two (2) carbon/ceramic type 21 mechanical seals mounted in tandem
- Oil-filled motor w/automatic reset thermal overload for maximum protection (single phase models only)
- Upper & lower ball bearing construction
- Seal Failure Probe Warns of Seal Leak
- Capacitor start for increased starting torque (single phase models only)
Specifications
Specifications
Hydromatic SKHD150M5 Technical Details
- BODY CONSTRUCTION: Class 30 Cast Iron
- HORSEPOWER: 1.5 HP
- RPM: 3450
- MAXIMUM HEAD: up to 125'
- MAXIMUM CAPACITY: up to 54 GPM
- DISCHARGE PIPE SIZE: 1.5" NPT
- MAXIMUM SOLIDS HANDLING SIZE: 3/4"
- AMP DRAW (full load): 2.0
- CORD LENGTH: 20'; Type SJTW / STW-A
- VOLTAGE: 3ø, 575V
- MAXIMUM LIQUID TEMPERATURE: 140°F
- MOTOR: Split Phase Motor with Solid State Switch, Start Capacitor with Thermal Overload Protection
- IMPELLER CONSTRUCTION: Engineered Thermoplastic
Hydromatic SKHD150 Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hydromatic SKHD150 Product Resources
Download Hydromatic SKHD150 Sales Brochure
