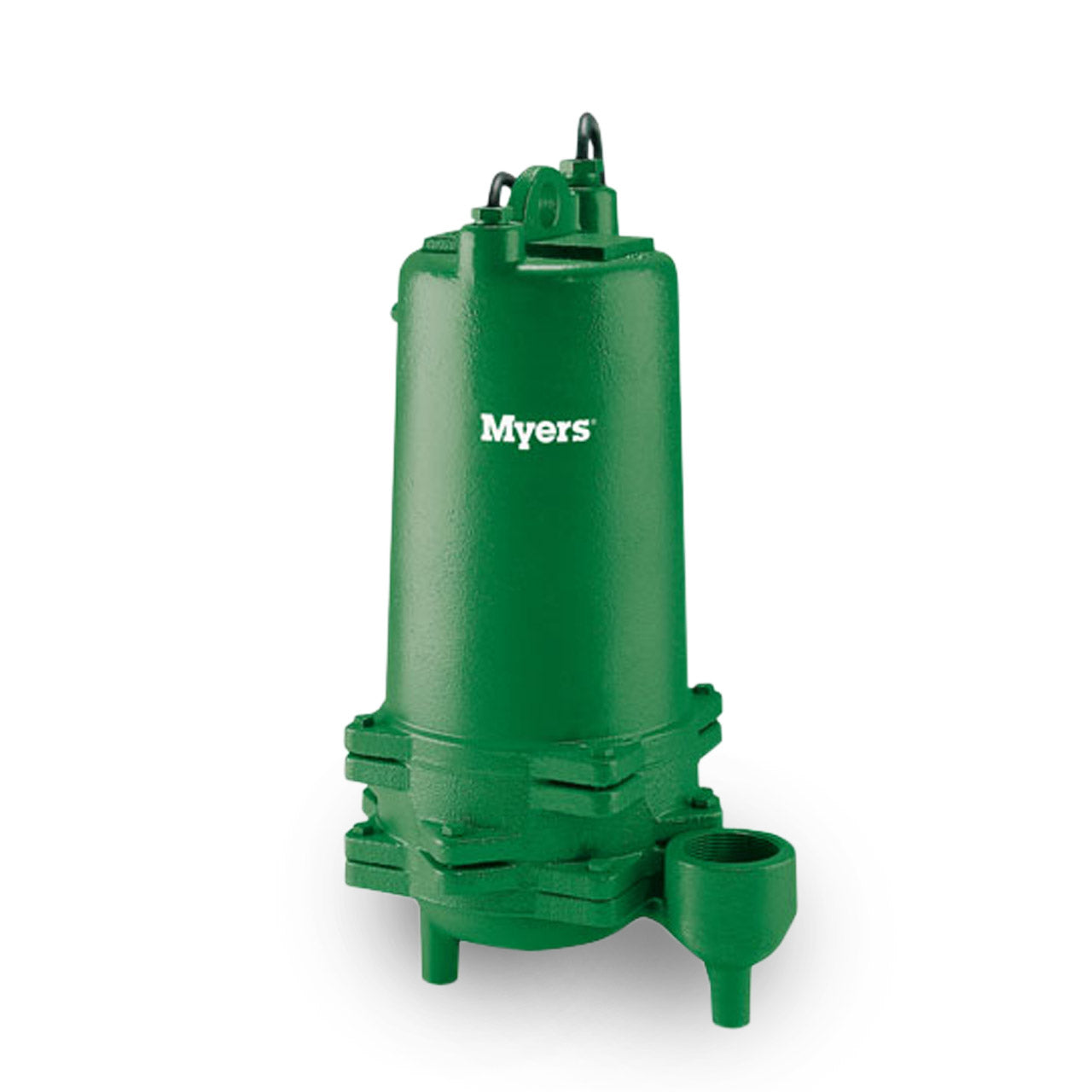

Myers P100 Series Cast Iron Effluent S.T.E.P. Pump Description

The Myers P Series Effluent Pumps are designed specifically for multi-pump pressure collection, septic tank effluent pumping (S.T.E.P) and high head drainage applications. The high efficiency, single-vane, enclosed impellers provide steep, non-overloading performance curves, which are ideal for these applications. These pumps deliver more capacity at higher heads than most pumps in this class. The combination of the most rugged materials ensure years of trouble-free, dependable service.

Myers P100 Series Cast Iron Effluent S.T.E.P. Pump Typical Applications

• Effluent Removal
• Trench and Mount Pressure Dose Systems
• Sump Drainage
• Water Transfer
• Flood Control

Myers P100 Series Cast Iron Effluent S.T.E.P. Pump Features

• P Series Effluent Pumps are Designed for Years of Maintenance-Free Operation
• Single-vane, Enclosed Impeller Provides Steep, Non-Overloading Performance Curve for Pressure Collection and ST.E.P. Systems; Outperforms Most Pumps in its Class
• Enclosed Impeller Eliminates the Possibility of Jamming or Corrosion Between Impeller and Volute
• Passes 3/4" Spherical Solids
• Durable Motor will Deliver Many Years of Reliable Service
• Oil-Filled Motor for Maximum Heat Dissipation and Continuous Bearing Lubrication
• High-Torque, Permanent Split Capacitor (PSC), Single-Phase Motors; no Starting Switches or Relays to Wear Out
• Double Tandem Seal Configuration for Extra Motor Protection, Tough Effluent Pumping Applications
• Optional Seal Leak Probes Warn of Seal Leak Condition; Helps Prevent Costly Motor Damage
• On-Winding Current and Temperature-Sensitive Overload to Protect Against Costly Burnout
• Volute Seal Ring is Replaceable; Restores Pump to Original Performance if Wear Should Occur
• Motor is Held in Place by 4 Screws; Easily Removed if Service is Ever Needed
• Does Not Include Seal Leak Detector Probes

Myers P102 Cast Iron Effluent S.T.E.P. Pump Specification

• VOLTAGE: 1ø, 230V, 60 Hz
• HORSEPOWER: 1.0 HP
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 3450
• MAXIMUM HEAD: 124'
• MAXIMUM CAPACITY:59 GPM
• SWITCH TYPE: Manual
• MINIMUM SUMP DIAMETER: Simplex: 24” Duplex: 36”
• DISCHARGE PIPE SIZE: 1-1/2" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 5/8"
• IMPELLER TYPE: Engineered Thermoplastic, Enclosed Single-Vane
• CORD LENGTH: 20'
• CORD SIZE: 14/3; Type: SJOW, SJOW-A
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)

Myers P Series Cast Iron Effluent S.T.E.P. Pump Performance Data
