Item Discontinued, See Replacement: Myers S50HTPC1 High Temperature Effluent Pump 0.5 HP 115V 20' Cord Automatic

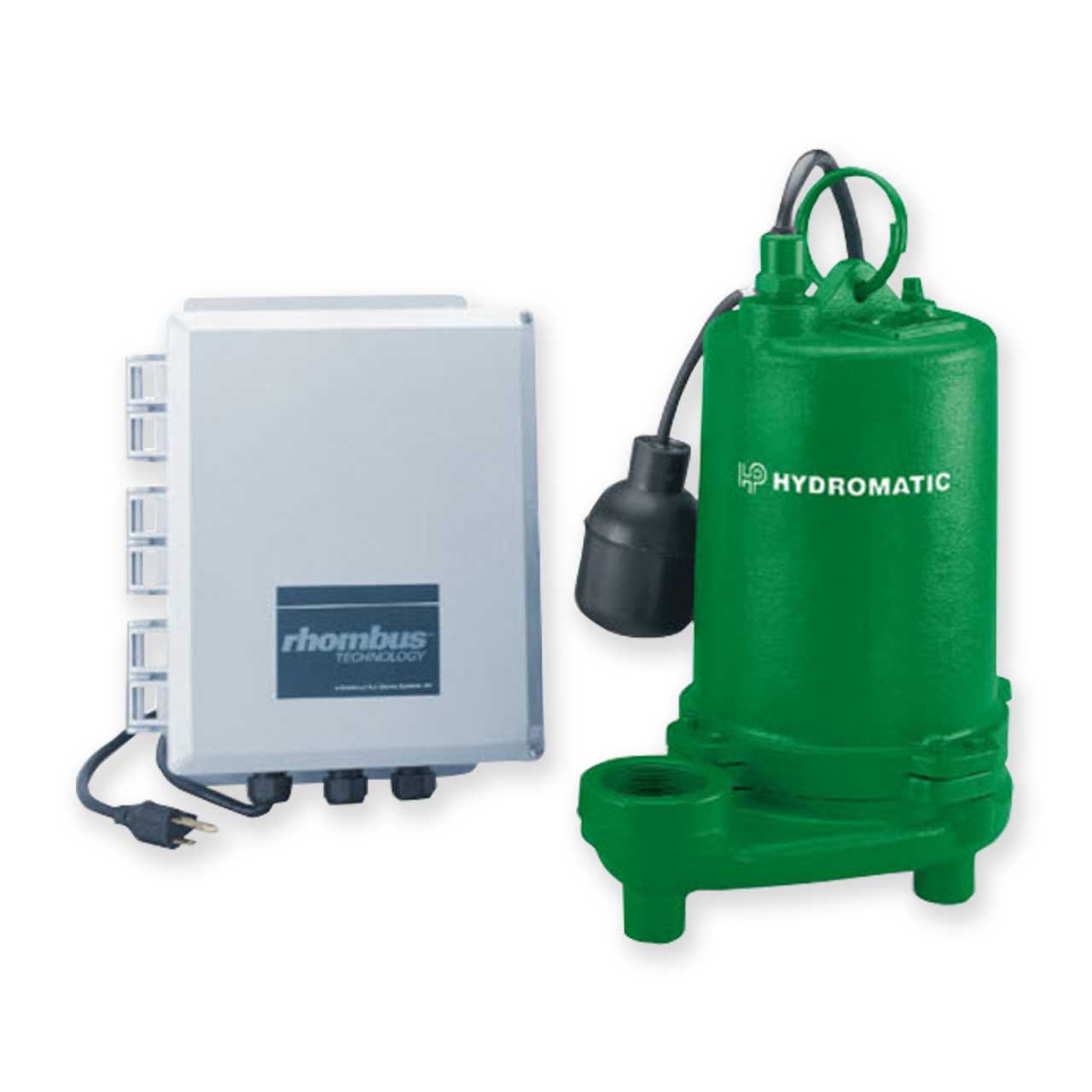

Hydromatic HTS50A1 Description

The HTS50 Series Pump is a rugged, submersible, cast iron pump with a non-clog vortex impeller and solids handling capability to 3⁄4". This unit has 1/2 HP, 115 Volt, single-phase motor and 2" NPT vertical discharge.

Hydromatic HTS50A1 Typical Application

• Boiler Blow Down Kits
• Condensate Pits
• Hot Water Sumps

Hydromatic HTS50A1 Superior Features

• Designed for High Temperature Use -- up to 200 degrees F
• Easily Field Serviceable
• Oil Filled Motor for Bearing Lubrication and Better Heat Dissipation
• Thermal Overload Protection
• Heavy Cast Iron Motor Housing for Cooler Operation - Extends Unit Life
• Maintenance-Free Operation
• Includes high temperature vertical float switch

Hydromatic HTS50A1 Technical Details

• BODY CONSTRUCTION: Cast Iron
• HORSEPOWER: 0.5 HP
• RPM: 1550
• MAXIMUM HEAD: up to 45'
• MAXIMUM CAPACITY: up to 64 GPM
• DISCHARGE PIPE SIZE: 2" NPT Discharge
• MAXIMUM SOLIDS HANDLING SIZE: 3/4"
• CORD LENGTH: 20'; Type SJOOW-A/SJOW
• VOLTAGE: 1ø, 115V
• MAX LOAD AMPS: 12.0
• MAXIMUM LIQUID TEMPERATURE: 200°F
• MOTOR: Oil-filled, Built-in Thermal Overload Protection with Automatic Reset
• IMPELLER CONSTRUCTION: Cast Iron

Hydromatic HTS50A1 Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Hydromatic HTS50A1 Product Resources

Download Hydromatic HTS50A1 Sales Brochure

Download Hydromatic HTS50A1 Installation & Service Manual
