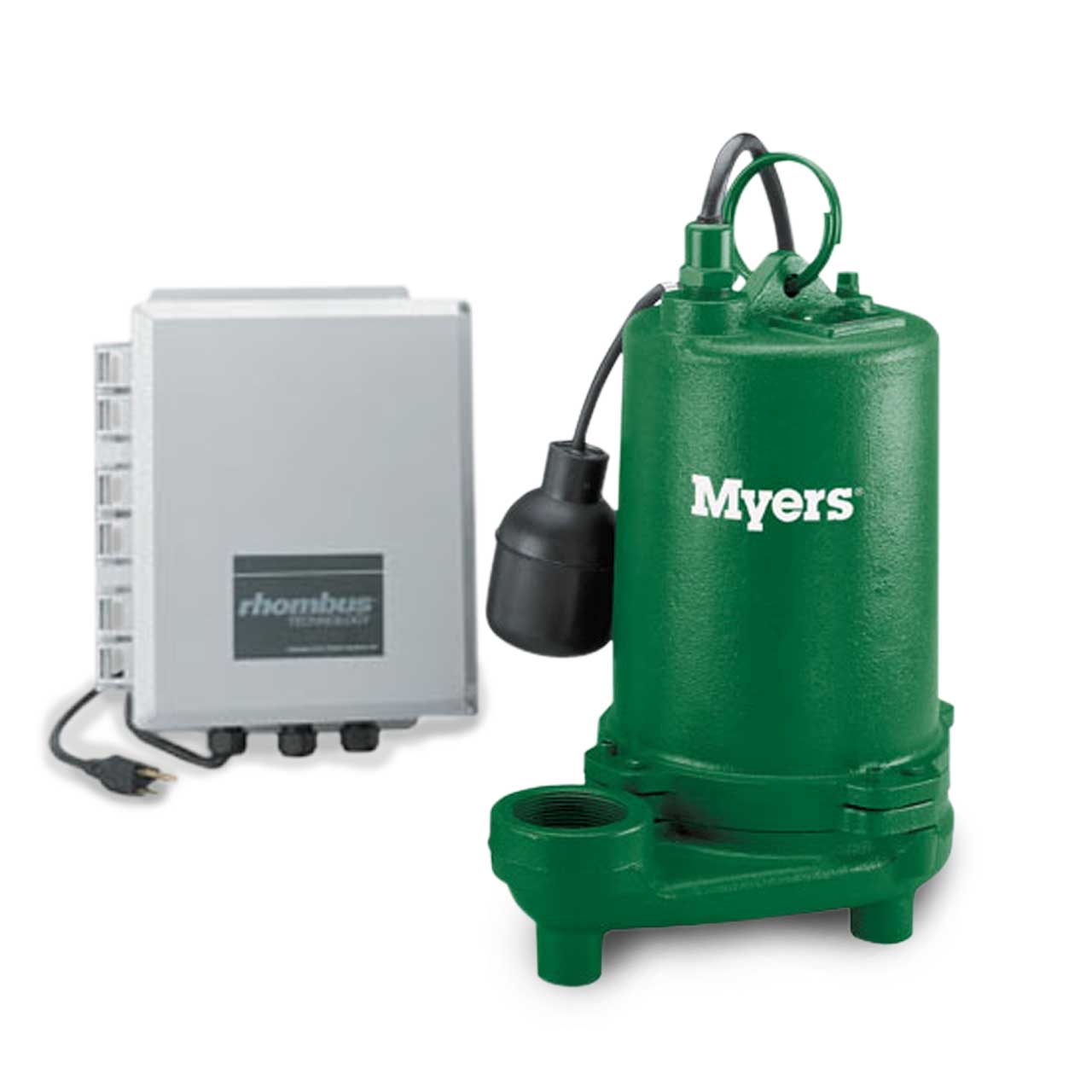

Myers S50HT Series High-Temperature Effluent Pump Description

The Myers ^® S50HT Series High-Flow Pump is designed for dependability in demanding environments. All cast iron construction and special features to protect the motor make this a pump for the long haul. The S50HT in a boiler blow-down application can withstand liquid temperatures up to 200°F. The non-clogging , semi-open impeller ensures unimpeded flow for high-capacity sump operation.

Myers S50HT Series High-Temperature Effluent Pump Typical Applications

• Boiler Blow-Down Pits
• Condensate Pits
• Hot Water Sumps

Myers S50HT Series High-Temperature Effluent Pump Features

• All Cast Iron Housing, Volute Case, and Impeller Resists the Most Extreme Corrosive Environments
• Stainless Steel Motor Shaft, Impeller Lock Nut and External Hardware
• Heat Sensor Overload Protection with Automatic Reset when Motor Cools to a Safe Operating Temperature
• Semi-Open Impeller is Designed to Resist Clogging
• Oil-Filled Motor Provides Continuous Bearing Lubrication and Maximizes Heat Dissipation
• Fully Lubricated Ball Bearings and Shaft Seal for Longer Service Life
• 2” (50 mm) NPT Discharge
• Legs are Drilled and Tapped with 1/2” NPT Threads to Allow Pump Height Adjustment
• Float Switch Included
• PW217-280 Simplex or 27400A245 Duplex Control Panel Required (SOLD SEPERATELY)

Myers S50HT High-Temperature Effluent Pump Specifications

• VOLTAGE: 1ø, 115V, 60 Hz
• HORSEPOWER: 0.5 HP
• AMP DRAW (full load): 12.0
• MOTOR TYPE: Thermal Overload Protection
• RPM: 3450
• MAXIMUM HEAD: 50'
• MAXIMUM CAPACITY: 100 GPM
• SWITCH TYPE: Tethered w/Piggyback Plug
• SWITCH 'ON' LEVEL: 17.8” (452 mm)
• SWITCH 'OFF' LEVEL: 8.8” (224 mm)
• MINIMUM SUMP DIAMETER: Simplex 24" Duplex 36"
• DISCHARGE PIPE SIZE: 2.0" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 3/4"
• IMPELLER TYPE: Cast Iron, Three-Vane, Semi-Open
• CORD LENGTH: 20'
• CORD SIZE: 16/4; Type: SOOW, SOOW-A
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 200°F (93°C)

Myers S50HT Series High-Temperature Effluent Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers S50HT High-Temperature Effluent Pump Product Resources

Download Myers S50HT Series High-Temperature Effluent Pump Specification Data

Download Myers S50HT Series High-Temperature Effluent Pump Installation & Service Manual
