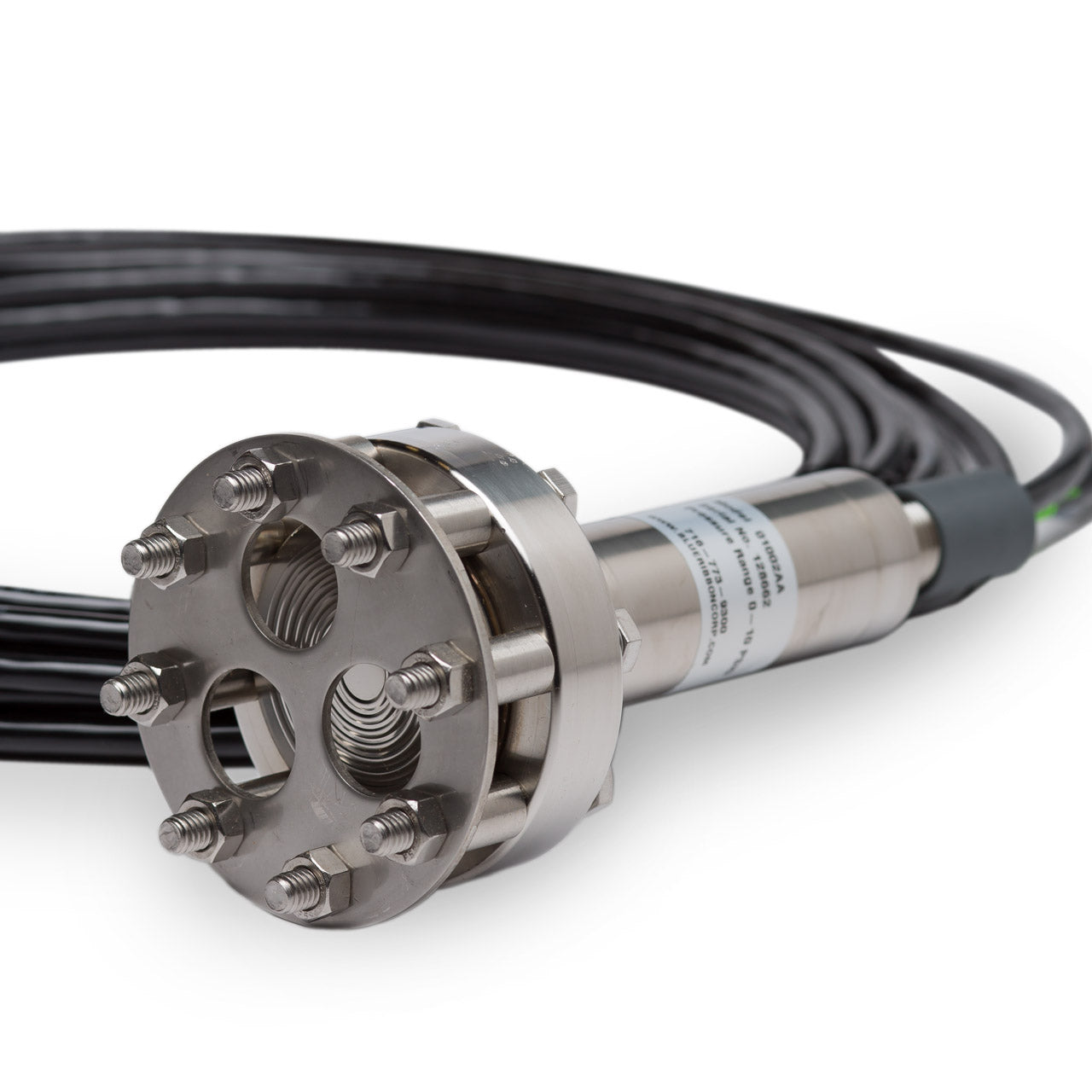

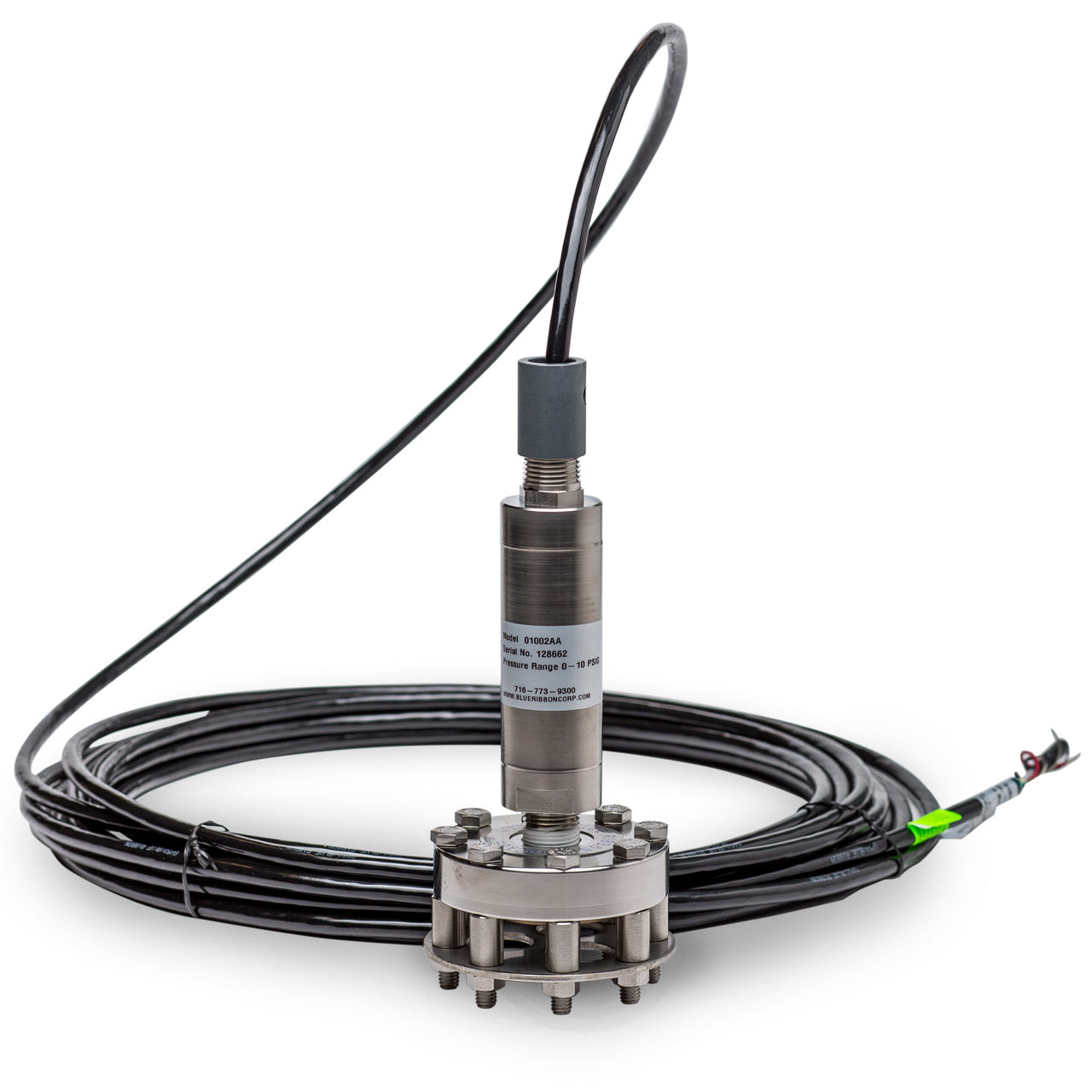

Blue Ribbon Model BC001 Birdcage Submersible Level Transmitter 0-10 PSI 40' Cord
Blue Ribbon Model BC001 Birdcage Submersible Level Transmitter 0-10 PSI 40' Cord
SKU : BRN01002AA
In Stock Quantity:5
:
Regular price
$956.80 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Blue Ribbon BC001 Birdcage Description
The Model BC001 Birdcage Submersible Level Transmitter is a highly accurate level transmitter designed specifically for sludge monitoring level and pump lift stations. Its all stainless steel design incorporates a 3-inch diameter clog-resistant sensing diaphragm and corrosion resistant protective baffle plate.
Blue Ribbon BC001 Birdcage Typical Applications
- Submersible Pump Lift Station Level Monitoring
- Wet Wells
- Process Sumps
- Water Tanks and Reservoirs
- Process Sludge (including heavy sludge)
- Water and Wastewater Level Monitoring
Blue Ribbon BC001 Birdcage Features
- 3-Inch Diameter Sensing Diaphragm Resists Clogging
- Protective Baffle Plate, Reduces Risk of Sensor Damage
- Corrosion Resistant, All Stainless Steel Construction
- Submersible to 1,100 feet (335 meters) WC
- Surge Protection from Lightning Strikes and Voltage Spikes
- Ranges from 0-10 thru 0 to 1,100 FTWC (0-3 to 0-335 mWC)
- Life-Time Surge Warranty Replacement Program when Partnered with the BCP3000 Surge Protector (sold seperately)
Specifications
Specifications
Blue Ribbon BR311BPZ2CJ Specifications
- Output (at 70°F): 4-20mA 9.0-36 VDC Excitation
- Accuracy: Static Accuracy 0.5% FSO BFSL, 1 Yr. Stability 0.20% FSO, Error Band (with temp.) 1.0% BFSL FSO
- Pressure Ranges: 0-10 PSI
- Zero Balance (at 70°F): ±1% FSO
- Range Calibration Signal: Internal Calibration Resistor set to 100 ±0.5% FSO unless otherwise specified
- Insulation Resistance: >10 megohms @ 50 VDC & @70°F
- Temperature Limits: Compensated ±35°F to 125°F, Operating 0°F to 140°F, Storage -40°F to 250°F
- Temperature Compensation (Standard): Zero/Span less than ±2% FSO/100°F at FSPR and/or URL
- Electricals: Load Impedance 1350 ohms maximum at 36 VDC and 750 ohms maximum at 24 VDC, RFI protection, voltage surge suppression, lightning protection
- Electrical Connection: Polyurethane or Tefzel reinforced cable with integral vent tube and hydrophobic filter (40 ft.)
- Mechanicals: Proof Pressure 3X FSPR(or URL) Burst Pressure 5X FSPR(or URL)
- Pressure Response: ≤5 ms to 90%
- Weight: 5.5 lbs.
- Wetted Material: Case 316 Stainless Steel 2.75" diameter sensing diaphragm - 316 SS, Cable Polyurethane or Tefzel reinforced cable with integral vent tube and hydrophobic filter
- Accessories: BCP3000 Surge Protector,BCH2000 Cable Hanger
