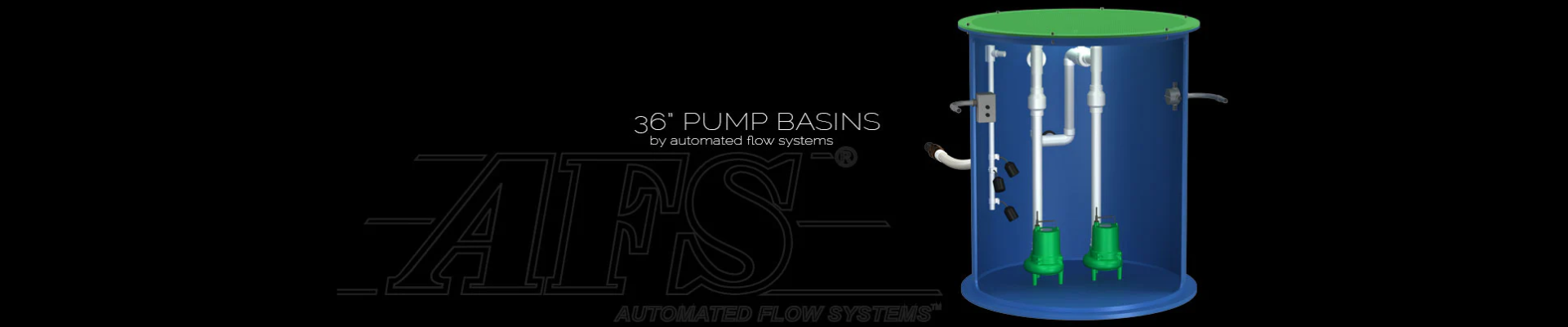

AFS 36" pump basins are built to be reliable, serviceable and extremely easy to install. Designed to be located either inside or outside a home or commercial building for simplex or duplex applications. At 50 gallons per foot. AFS 36" pump stations provide a noncorrosive and superior alternative to steel or heavy concrete sump systems where higher capacities are needed.

Applications

• residential or commercial dewatering
• residential or commercial sewage and sump
• commercial grinder applications
• septic effluent pumping

Features

• durable fiberglass basin construction
• secure fiberglass lid provided

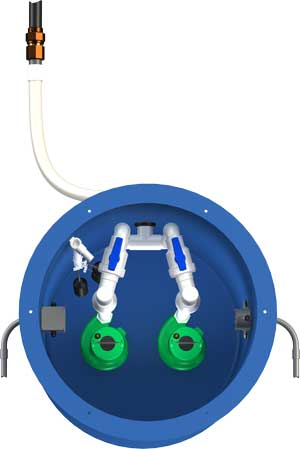

• AFS Discharge Assembly provides integrated PVC piping, check and ball valve elevated to provide access from basin opening
• elevated gauge port to provide easy field pump performance and design assessment/verification
• removable float tree
• internal, external, or explosion proof splice box options available
• multiple pump brands and types to ensure correct pump selection
• controls available to match pump
• side or top discharge options available

Includes

• fiberglass basin construction
• fiberglass lid
• AFS discharge assembly with integrated PVC piping, check and ball valve
• removable float tree bracket
• 4" inlet grommet (field installed)

Documents
