AFS 30" pump basins are built to be reliable, serviceable, and extremely easy to install. Designed to be located outside the home or building structure. AFS 30" pump stations provide a superior alternative to messy in-basement sump systems.

Applications

• residential dewatering
• residential sewage and sump
• residential grinder applications
• septic effluent pumping

Features

• durable PVC basin construction
• secure fiberglass lid provided

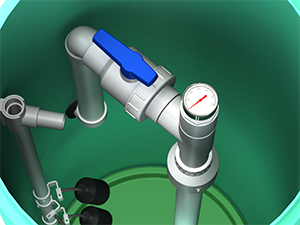

• AFS Discharge Assembly provides integral PVC piping, check and ball valve elevated to provide access from basin opening
• elevated gauge port to provide easy field pump performance and design assessment/verification
• removable float tree
• internal or external splice box options available
• multiple pump brands and types to ensure correct pump selection
• controls available to match pump system design requirements
• discharge height set to 30" from top-of-tank to prevent piping freezing

Includes

• PVC basin with epoxy bonded fiberglass bottom
• fiberglass lid
• AFS discharge assembly with integrated PVC piping, check and ball valve
• float tree bracket
• 4" inlet grommet (field installed)
