Zoeller Model G268 Sewage/Effluent or Dewatering Pump 0.5 HP 460V 3PH 15' Cord Nonautomatic
Zoeller Model G268 Sewage/Effluent or Dewatering Pump 0.5 HP 460V 3PH 15' Cord Nonautomatic
SKU : ZLRG268
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

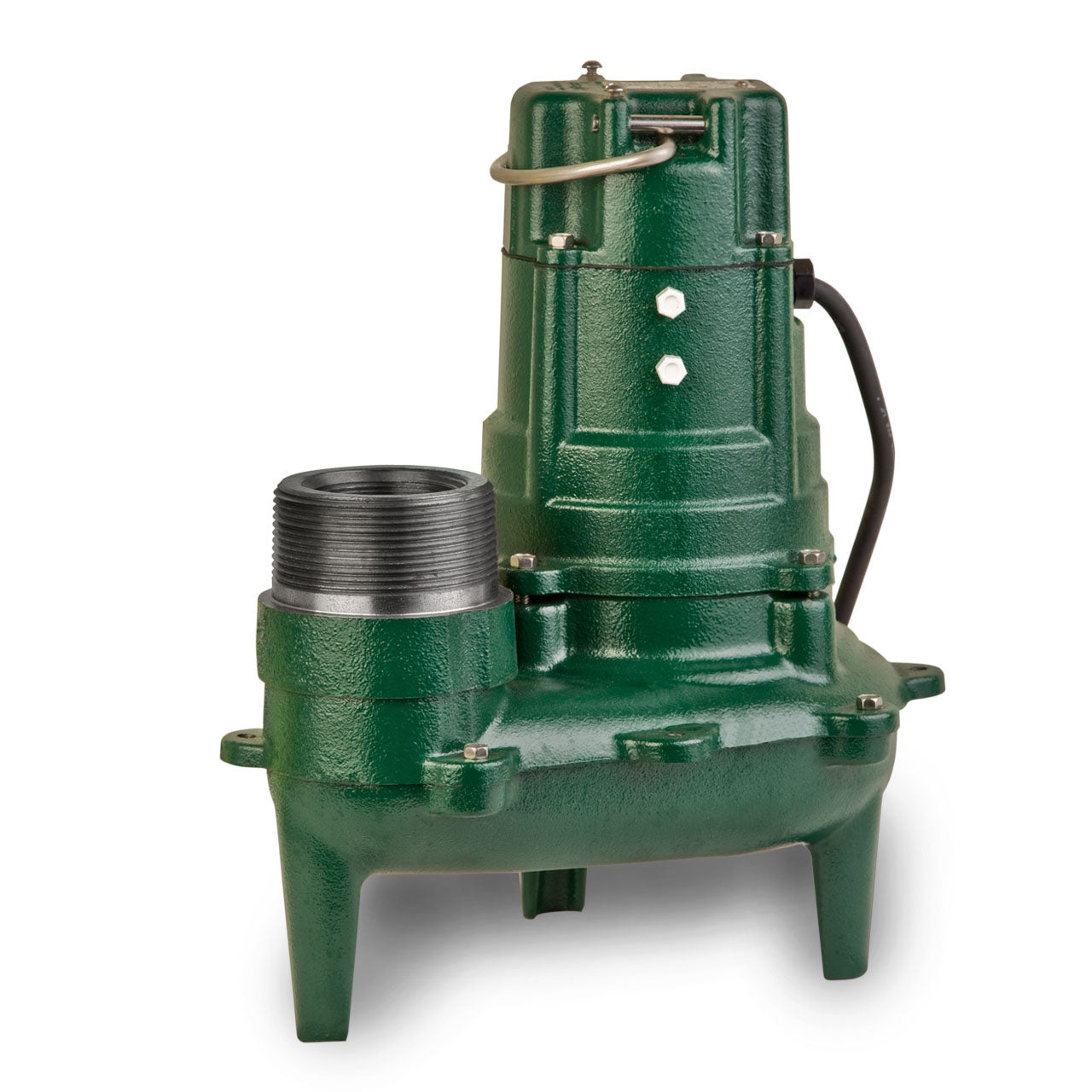

Zoeller Model G268 Submersible Pump Description
Discontinued or no longer available -Zoeller - Zoeller 267-0041 Model G267 Sewage Pump 0.5 HP 460V 3PH 15' Cord Nonautomatic #ZLR267-0041
The "Waste-Mate" series of submersible pumps is designed for use in residential or light commercial dewatering and wastewater applications and can be used to transfer groundwater, effluent or raw sewage. The innovative vortex impeller design reduces the risk of clogging and allows each pump to pass 2" (50 mm) spherical solids. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance!
Zoeller Model G268 Submersible Pump Features and Benefits
-
Float operated, submersible (NEMA 6) 2-pole mechanical switch
-
Durable cast construction, ASTM Class 25 cast iron, switch case and pump housing
-
Cast iron base on models 267 and 268
-
Engineered plastic base on model 266
- Non-Clogging Vortex Impeller Design. Engineered plastic impeller with metal inserts on models 266, 267 & 268 (1 PH).
- Model 267 available with cast iron impeller option. (Cast iron impeller standard on 3 Ph models)
-
Not affected by materials normally found in drainage and sewage pumps
-
Stainless steel screws, bolts, handle, guard and arm and seal assembly
-
Neoprene square ring & gasket
-
Oil filled, hermetically sealed motor
-
Oil lubricated bearings
-
Carbon and ceramic shaft seal
-
Passes 2” (50mm) spherical solids
-
2” female and 3" NPT male discharge
-
Model 268 contains combination 2” NPT female 3” NPT male discharge
-
On point: 12” (30 cm) (automatic units)
-
Off point: 4” (10 cm) (automatic units)
-
Corrosion-resistant, powder coated epoxy finish
-
Completely submersible
-
Watertight and dust tight
-
Non-automatic models available
-
Models available packaged with a piggyback variable level float switch
-
Automatic reset thermal overload protection (1 Phase only)
Zoeller Model G268 Submersible Pump Specifications
HERTZ: 60 HzHORSE POWER: 1/2 HPVOLTAGE: 200 VPHASE: 3 PhRPM: 1750 RPMTYPE: Split phase or 3 phaseINSULATION: Class BAMPS: 1.5OPERATION: Nonautomatic AUTO ON/OFF POINTS: 12" /4" DISCHARGE SIZE: 2" NPT SOLIDS HANDLING: 2" spherical solidsCORD LENGTH: 15'CORD TYPE: UL Listed, 4-wire neoprene cordMAX HEAD: 21.5'MAX FLOW RATE: 128 GPMMAX OPERATING TEMP: 130° F (43° C)COOLING: Oil filledMOTOR PROTECTION: Auto reset thermal overloadMOTOR HOUSING: Cast iron PUMP HOUSING: Cast iron BASE: Cast iron UPPER BEARING: Sleeve bearingLOWER BEARING: Sleeve bearingMECHANICAL SEALS: Carbon and ceramicIMPELLER TYPE: Non-clogging vortexIMPELLER: Engineered plastic w/metal insert HARDWARE: Stainless steel MOTOR SHAFT: AISI 1215 cold rolled steel GASKET: Neoprene
Zoeller Model G268 Performance Curve
Zoeller Model G268 Product Resources
Download Zoeller 260 Series Catalog Sheet FM0390
Download Zoeller Model 260 Catalog Sheet FM0390 Ea
Download Zoeller Model 268 Parts List FM0518
Download Zoeller Installation Instructions, 3 - year warranty FM2676
Download Zoeller Sewage Specs, Simplex Systems FM0600
