Zoeller 98-0020 Model BE98 Sump Pump 0.5 HP 230V 1PH 15' Cord Automatic

Zoeller 98-0020 Model BE98 Sump Pump 0.5 HP 230V 1PH 15' Cord Automatic

Usually ships within 3 weeks

SKU : ZLR98-0020

In Stock Quantity:0

:
Brand : Zoeller
$491.25 USD
Shipping calculated at checkout.

Description

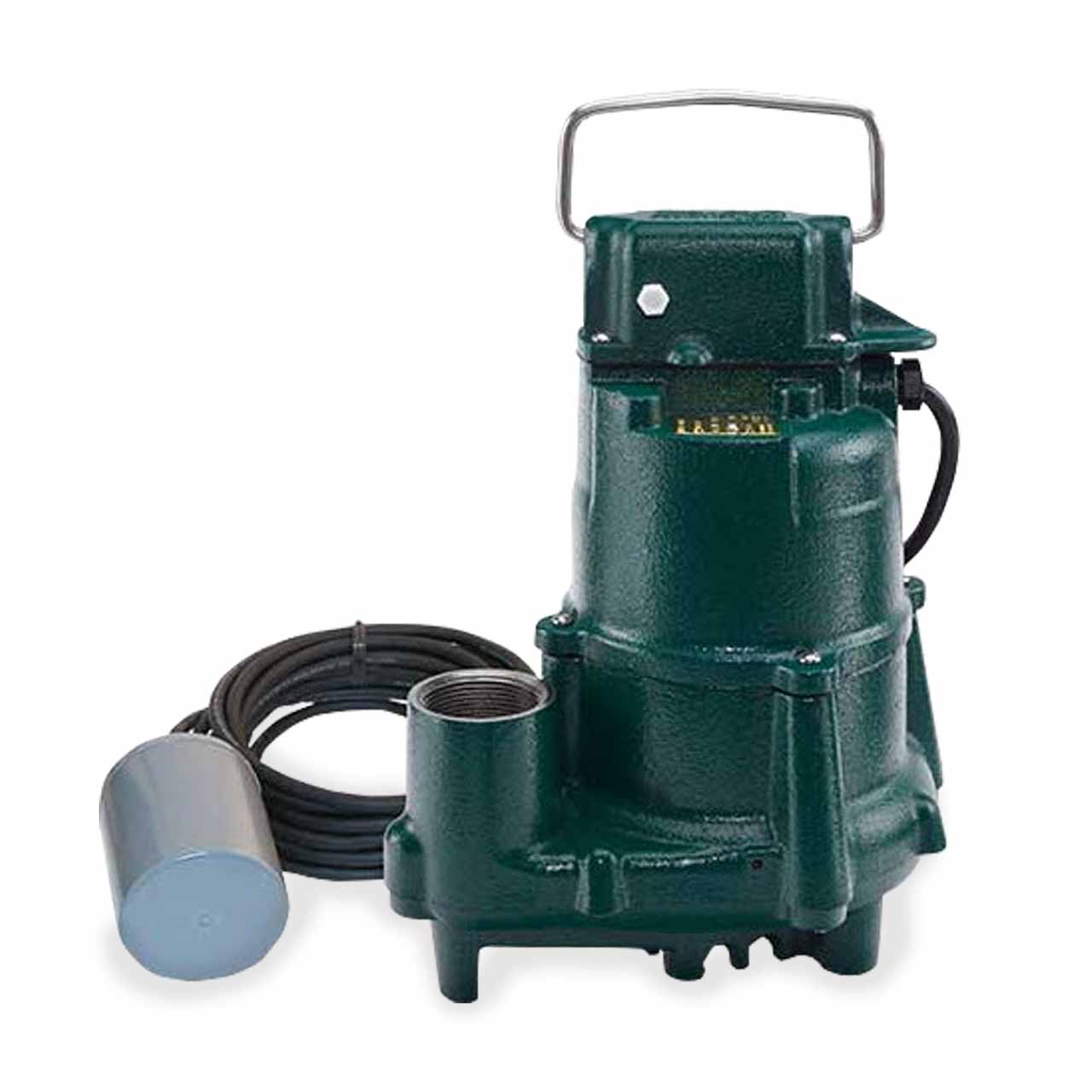

Zoeller Model 98 Sump Pump Description

Our Model BE98 Effluent Pump is designed to remove unwanted water in sump or septic effluent applications. It is an ideal choice in high pressure or high flow applications. The professional-grade, 1/2 HP Model 98 is known for its dependability. The BE98 is a nonautomatic pump equipped with a single piggyback float switch. The piggyback float switch allows you to set the on and off point of the pump in the field. This is ideal in an application with a deep sump pit or pump tank.

The Model 98’s switch case, motor housing, and pump housing are each constructed of cast iron. The corrosion resistant engineered plastic vortex impeller has a smooth surface allowing water and solids to pass freely through the pump. The pump’s identification tag, handle, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 98 is able to withstand the most demanding applications.

Zoeller Model 98 Sump Pump Features and Benefits

  • Oil-Filled for Optimal Heat Dissipation: This Design Minimizes Concerns about the Pump Overheating and Breaking Down due to Extreme Heat Generation During Extended-Use Applications
  • A Versatile Nonautomatic Pump that Comes with a Single Piggyback Float Switch that is Ideal for Applications where the On and Off Points May Vary Depending on the Depth of the Dose Tank on the Site
  • Non-Clogging, Engineered Thermoplastic Vortex Impeller Design that Allows Free Passage of Solids to Prevent Clogging
  • The Single Piggyback float Switch Turns a Nonautomatic Pump into an Automatic Pump and also Allows you to Isolate the Pump from the Switch Making it Easier to Troubleshoot Issues in the Field
  • Durable, Cast Iron Construction for Long-Lasting Corrosion and Heat Resistance
  • Powder-Coated Epoxy Finish Provides Corrosion-Resistance and Extends Life in Harsh Environments
  • Stainless Steel Screws, Switch Arm, Handle and Hardware to Prevent Rust and Corrosion over the Life of the Pump
  • 100% Factory Tested: Our Factory-Tested Effluent Pumps Ensure Reliable Performance in Challenging Applications with Fewer Concerns about Mechanical Failures
  • 3-Year Limited Warranty: This Model Comes with Warranty Coverage from Zoeller Pump Company, Giving You Protection Over Your Investment and the Peace of Mind you Expect in a Quality Product

Specifications

Zoeller 98-0020 Sump Pump Specifications

  • VOLTAGE: 1ø, 230V, 60Hz
  • HORSEPOWER: 0.5 HP
  • AMP DRAW (full load): 9.4
  • MOTOR TYPE: Permanent Split Capacitor (PSC)
  • RPM: 1725 RPM
  • MAXIMUM HEAD: 23'
  • MAXIMUM CAPACITY: 72 GPM
  • SWITCH TYPE: Piggyback Variable Level Float Switch
  • DISCHARGE PIPE SIZE: 1-1/2" NPT
  • MAXIMUM SOLIDS HANDLING: 1/2" Spherical Solid
  • IMPELLER TYPE: Engineered Plastic, Non-Clogging Vortex
  • CORD LENGTH: 15'
  • BODY CONSTRUCTION: Cast Iron
  • MAXIMUM OPERATING TEMPERATURE: 130°F (54C)

Zoeller Model 98 Sump Pump Performance Curve



WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Zoeller Model 98 Sump Pump Product Resources


Download Zoeller Model 98 Sump Pump Brochure FM3012

Download Zoeller Model 98 Sump Pump Technical Data Sheet FM2779

Download Zoeller Model 98 Sump Pump Installation Instructions FM2676

Download Zoeller Model 98 Sump Pump Parts List FM1032

Download Zoeller Model 98 Specifications Effluent Duplex FM530

Download Zoeller Model 98 Specifications Effluent Simplex FM0531

Download Zoeller Long Cycle Kit - Model 10-0001 FM0359
