Zoeller N152 Oil Guard Pump System 940 Description

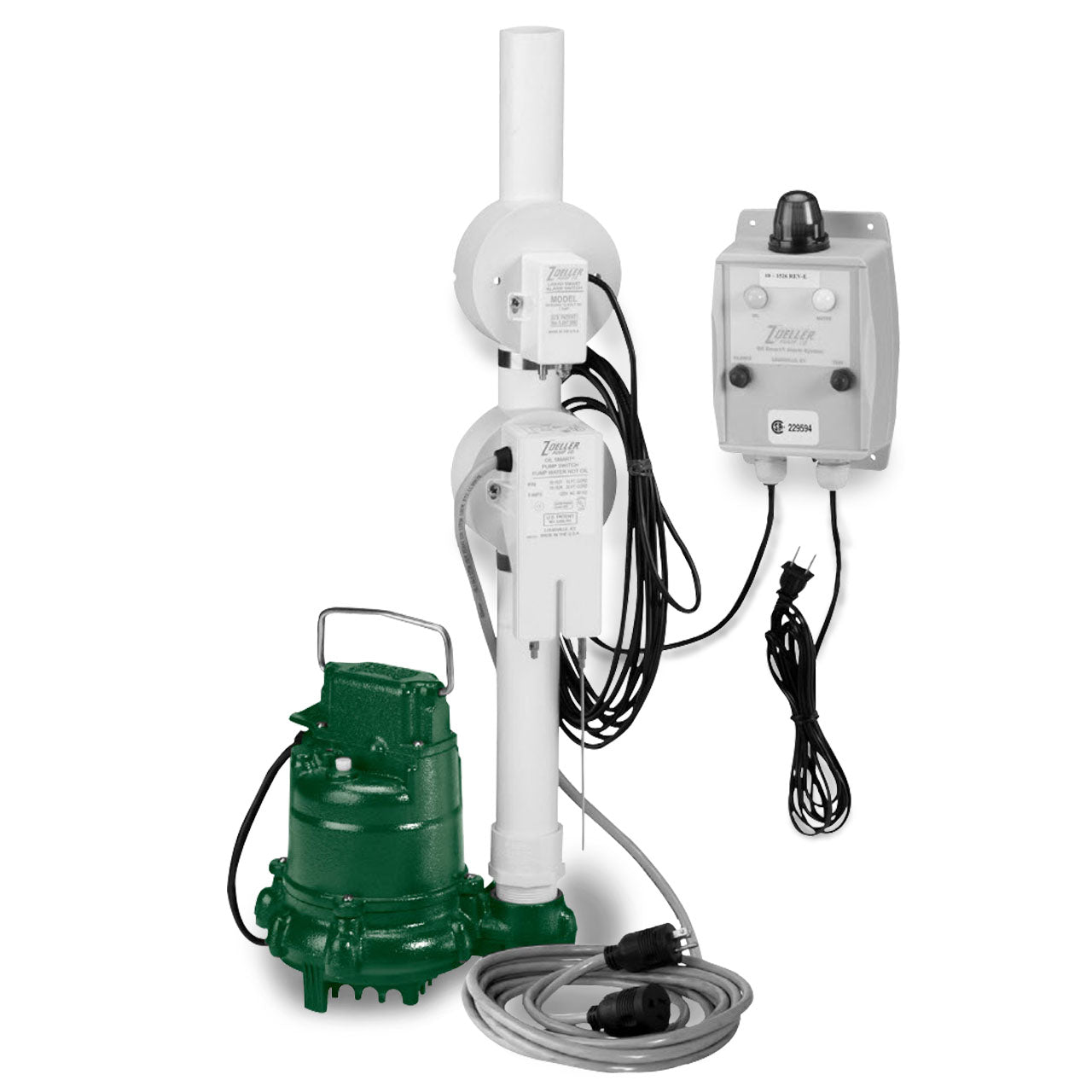

Our Model 940 Oil Guard® is a complete system for elevator sump applications. It is designed to protect the environment from oil contamination by removing water from the basin but not oil. This 940 system includes a Model 152 is a nonautomatic pump rated for 1/4 HP and 115 V. The Model 152’s switch case, motor housing, and pump housing are each constructed of cast iron. The pump’s identification tag, handle, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 152 is able to withstand the most demanding applications. This system also includes an Oil Smart® pump switch, and alarm. Making it a convenient plug-and-play system for the installer.

The Oil Smart® Pump Switch is an industrial quality piggyback switch listed as UL508. The sensor probes are made of high quality 304 stainless steel and able to distinguish between oil and water. The probes call for the pump to run when they sense water and turn off when sensing oil or air. The Oil Smart® Pump Alarm is a NEMA 4X enclosure that will sound an audible alarm if the liquid level becomes too high. Simultaneously, a red beacon will illuminate as an early warning of a problem and 1 of 2 other indicator lights will illuminate. On the face of the alarm panel either a yellow light will illuminate for high oil or a white light for high water. There are dry contacts for each of these lights. The Oil Smart Alarm includes a 20′ power cord to be plugged into an 115 V outlet.

Zoeller N152 Oil Guard Pump System 940 Features and Benefits

• NEMA-4X Alarm Panel Enclosure
• Audible, Light Alarms and Dry Contacts
• Preset ‘on’ and ‘off’ Points Differentiates Between Oil and Water and Alerts Maintenance Personnel of High water or Oil Detected Conditions
• 20 ft. Piggyback Electrical Supply Cord
• 20 Amp Internal Relay
• Alarm Test and Silence Switches
• 304 Stainless Steel Probes
• UL508 Approved Switch

Pump features:

• Durable, Cast Iron Construction
• Powder Coated Epoxy Finish
• All Stainless Steel Fittings

Simplex Panel features:

• Oil Smart® Pump Switch (10-1528)
• 115 Volts, Single Phase
• NEMA 4X Watertight Enclosure With Lockable Latch
• 30 Amp Motor Start Relay
• Pump HOA Switch
• Top Mounted Red Alarm Beacon Light
• 81-84 Decibel Rated Alarm Horn
• Horn Silence and Alarm Test Switches
• Alarm Automatically Resets
• Dry Auxiliary Alarm Contacts
• Separate Circuit Protection for Alarm
• Circuit Breaker Protection

Duplex Panel features:

• Oil Smart® Pump Switch (10-1528)
• 115 Volts, Single Phase
• NEMA 4X Watertight Enclosure with Lockable Latch
• Two 30 Amp Motor Start Relays
• Pump HOA Switch
• Top Mounted Red Alarm Beacon Light
• 81-84 Decibel Rated Alarm Horn
• Horn Silence and Alarm Test Switches
• Alarm Automatically Resets
• Dry Auxiliary Alarm Contacts
• Separate Circuit Protection for Alarm

Zoeller N152 Oil Guard Pump System 940 Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Zoeller Oil Guard System 940 Product Resources

Download Zoeller Oil Guard System Sales Sheet FM3064

Download Zoeller Oil Smart System Catalog Sheet FM2675

Download Zoeller Oil Guard Technical Sheet FM2809

Download Zoeller Oil Smart Alarm System Installation Instructions FM2192

Download Zoeller Oil Smart Pump Switch Installation Instructions FM2367

Download Zoeller Oil Smart Panel, Pump, & Alarm Installation Instructions FM2468

Download Zoeller Oil Smart Quick Mount Bracket Float Tree Retrofit Installation Instructions FM2364

Download Zoeller Oil Smart Pump Switch Spec Sheet FM2242
