Zoeller 940-0005 Model N57 Pump w/Oil Guard Switch Assembly 0.3 HP 115V 15' Cord
Zoeller 940-0005 Model N57 Pump w/Oil Guard Switch Assembly 0.3 HP 115V 15' Cord
SKU : ZLR940-0005
In Stock Quantity:0
:
Brand
:
Regular price
$2,911.50 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

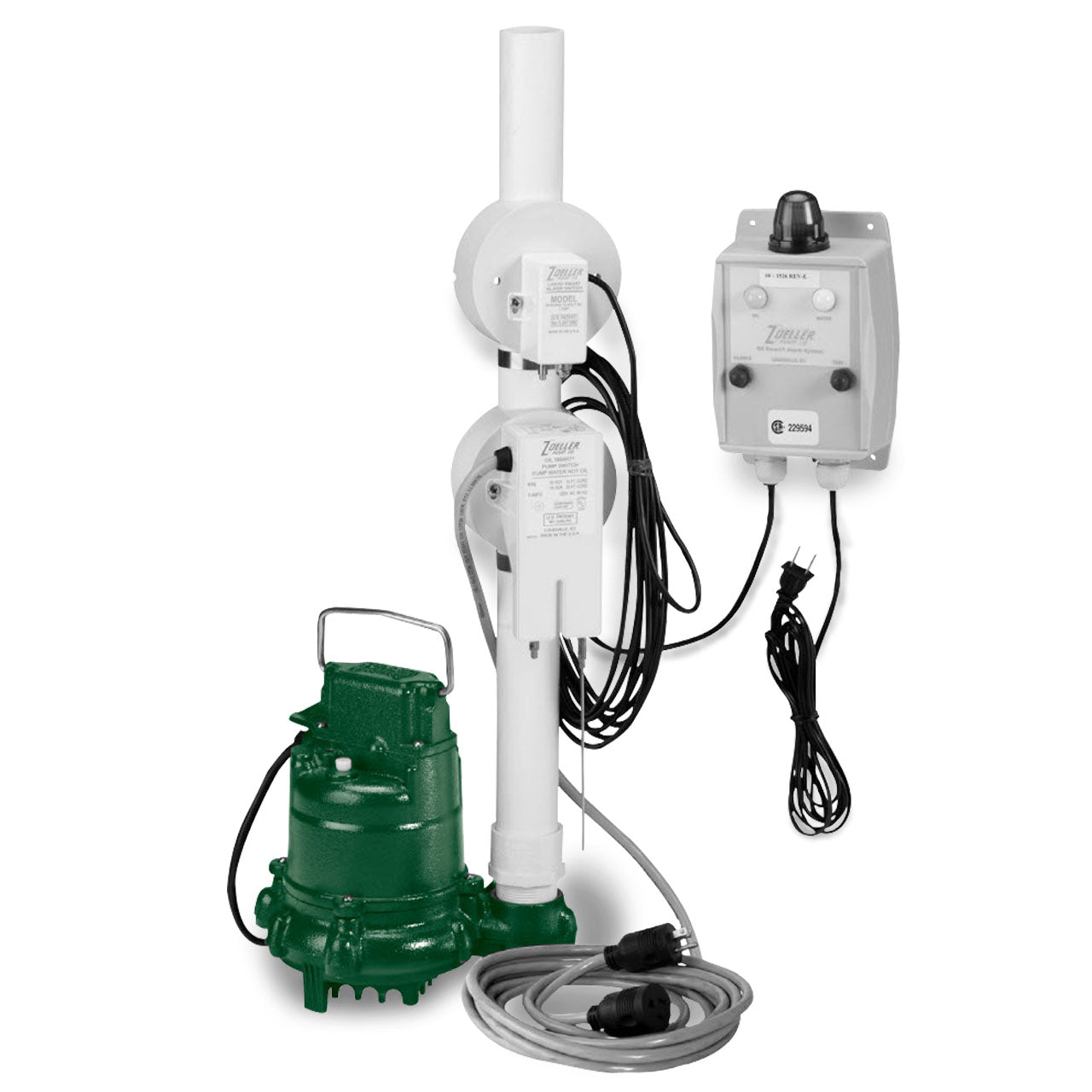

Zoeller N57 Oil Guard Pump System 940 Description
The Oil Smart Switch is factory calibrated and set up for immediate installation and operation. The dielectric design is extremely sensitive to variations in dielectric constant of air, water, oil and/or hydrocarbons. Designed to help protect the environment and equipment from the dispersion of oils and/or hydrocarbons. Applications include elevator sumps, transformer vaults and manufacturing facilities.
Zoeller N57 Oil Guard Pump System 940 Features and Benefits
- NEMA-4X Alarm Panel Enclosure
- Audible, Light Alarms and Dry Contacts
- Preset ‘on’ and ‘off’ Points Differentiates Between Oil and Water and Alerts Maintenance Personnel of High Water or Oil Detected Conditions
- 20 ft. Piggyback Electrical Supply Cord
- 20 Amp Internal Relay
- Alarm Test and Silence Switches
- 304 Stainless Steel Probes
- UL508 Approved Switch
Pump features:
- Durable, Cast Iron Construction
- Powder Coated Epoxy Finish
- All Stainless Steel Fittings
Simplex Panel features:
- Oil Smart® Pump Switch (10-1528)
- 115 Volts, Single Phase
- NEMA 4X Watertight Enclosure With Lockable Latch
- 30 Amp Motor Start Relay
- Pump HOA Switch
- Top Mounted Red Alarm Beacon Light
- 81-84 Decibel Rated Alarm Horn
- Horn Silence and Alarm Test Switches
- Alarm Automatically Resets
- Dry Auxiliary Alarm Contacts
- Separate Circuit Protection for Alarm
- Circuit Breaker Protection
Duplex Panel features:
- Oil Smart® Pump Switch (10-1528)
- 115 Volts, Single Phase
- NEMA 4X Watertight Enclosure with Lockable Latch
- Two 30 Amp Motor Start Relays
- Pump HOA Switch
- Top Mounted Red Alarm Beacon Light
- 81-84 Decibel Rated Alarm Horn
- Horn Silence and Alarm Test Switches
- Alarm Automatically Resets
- Dry Auxiliary Alarm Contacts
- Separate Circuit Protection for Alarm
Specifications
Specifications
Zoeller N57 Oil Guard Pump System 940 Specifications
- HORSEPOWER: 0.3 HP
- VOLTAGE: 115V
- HERTZ: 60 Hz
- PHASE: 1 Ph
- RPM: 1550 RPM
- AMPS: 9.7
- CORD LENGTH: 15'
- MAX HEAD: 19.25'
- MAX FLOW RATE: 43 GPM
- IMPELLER TYPE: Non-clogging vortex
Zoeller N57 Oil Guard Pump System 940 Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Oil Guard System 940 Product Resources
Download Zoeller Oil Guard Catalog Sheet FM2193
Download Zoeller Model 50 Catalog Sheet FM0493
Download Zoeller Oil Smart System Catalog Sheet FM2675
Download Zoeller Oil Smart Alarm System Installation Instructions FM2192
Download Zoeller Oil Smart Pump Switch Installation Instructions FM2367
Download Zoeller Oil Smart Panel, Pump, & Alarm Installation Instructions FM2468
Download Zoeller Oil Smart Quick Mount Bracket Float Tree Retrofit Installation Instructions FM2364
