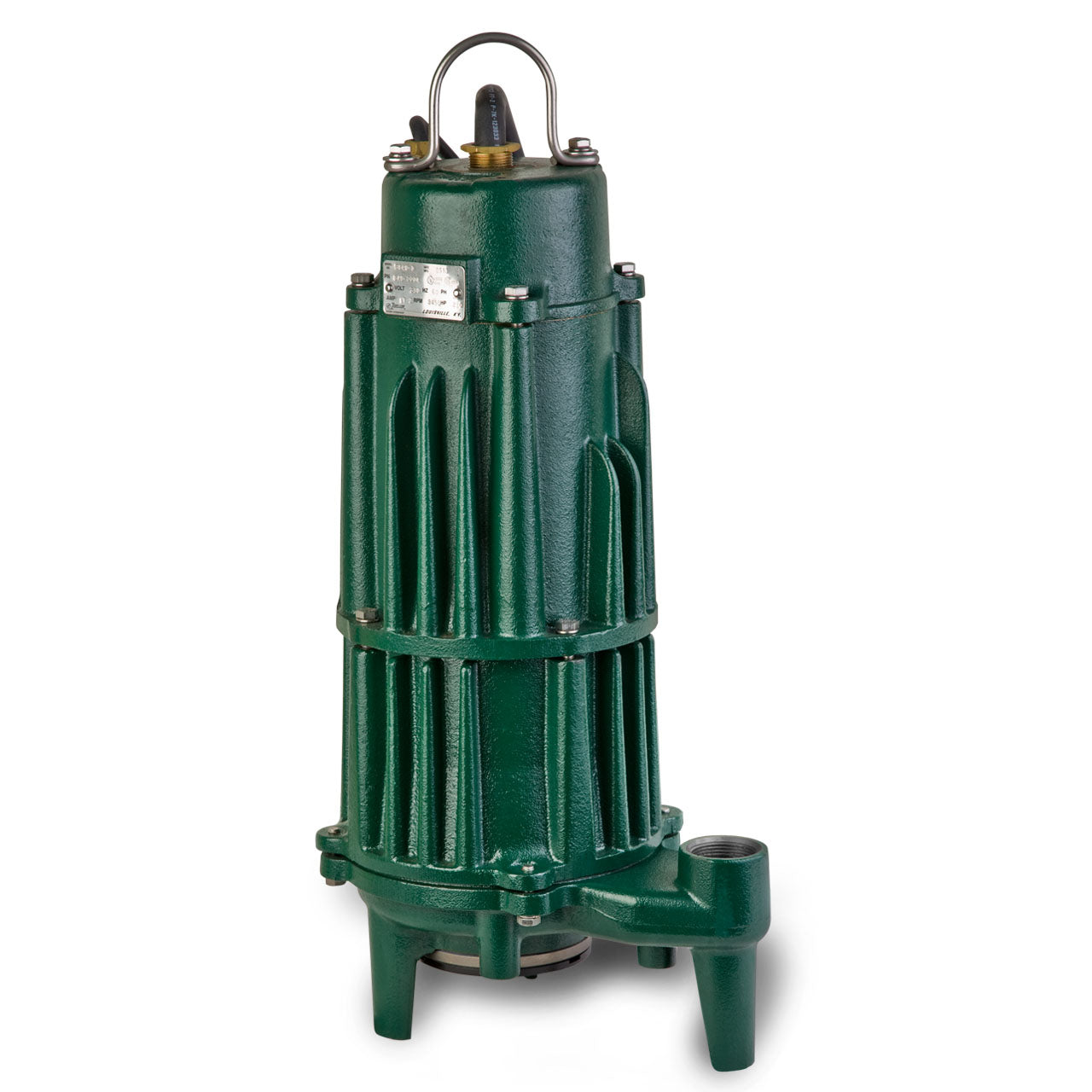

Zoeller Model J841 Grinder Pump Description

The Shark® series of submersible grinder pumps is designed for use in residential or commercial wastewater applications and can be used to transfer raw sewage. Each pump features an innovative cutting mechanism, allowing it to grind solids into fine particles. When used in conjunction with a properly equipped control panel, the Model 840 utilizes an automatic reversing cutter, which doubles the service life of a single-direction grinder and prevents clogging. The uniform consistency of the discharged material reduces the risk of clogs in the pipe, yielding less down time and fewer service calls. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion, and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller® pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance! This attention to detail is an inherent feature of every pump in this series, making it one of the most reliable in the industry.

Zoeller Model J841 Grinder Pump Features and Benefits

• Finned, Class 30 Cast Iron Construction
• Corrosion-Resistant, Powder Coated Epoxy Finish
• 1-1/4" NPT Discharge
• Hardened Stainless Steel Cutter and Disc, Rockwell C55-60
• Cutters Protected from Abrasive Solids
• Bronze Vortex Impeller
• Stainless Steel Screws, Bolts and Lifting Bail
• Easily Adapts to Many Existing Competitors’ Rail Systems
• Dual Mechanical Seals with Leak Detection
• Legs Provide for Free Standing Installation
• Pre-Assembled Systems Available

• VOLTAGE: 3ø, 200V, 60Hz
• HORSEPOWER: 2.0 HP
• AMP DRAW (full load): 12.3
• MOTOR TYPE: 3 Phase
• RPM: 3450
• MAXIMUM HEAD: 125'
• MAXIMUM CAPACITY: 61 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 1-1/4" NPT Vertical
• IMPELLER TYPE: Ductile Iron, Non-Clogging Vortex
• CORD LENGTH: 20' Type SOW or SOOW Multi-Wire Neoprene
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 130°F (54C)

Zoeller Model J841 Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Zoeller Model J841 Product Resources

Download Zoeller 841, 842 Series Catalog Sheet FM2190

Download Zoeller Model 841 Technical Data FM2799

Download Zoeller Model 841 Parts List FM2180

Download Zoeller Model 841 Installation Instructions FM1239

Download Zoeller Model 840, 841, 842 Owner's Manual FM2168

Download Zoeller Model 840 "Indoor/Outdoor" Simplex Grinder System FM1530

Download Zoeller Model 840 "Outdoor" Simplex/Duplex Grinder System FM1508

Download Zoeller Grinder Pump Sizing Information FM1326
