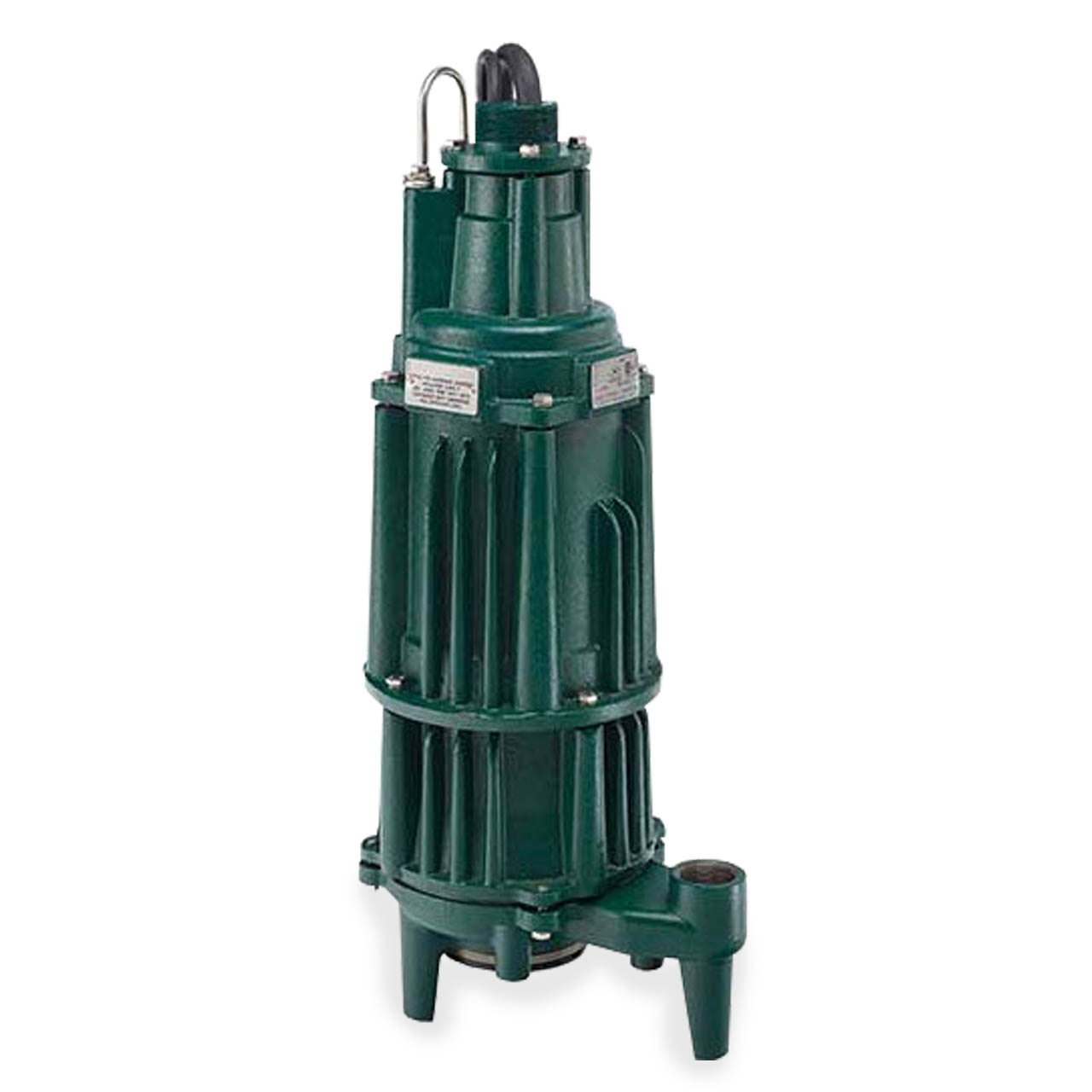

Zoeller 840-0081 Model GX840 "Shark" Reversing Grinder Pump Explosion Proof 2.0 HP 460V 3PH 50' Cord Nonautomatic
Zoeller 840-0081 Model GX840 "Shark" Reversing Grinder Pump Explosion Proof 2.0 HP 460V 3PH 50' Cord Nonautomatic
SKU : ZLR840-0081
In Stock Quantity:0
:
Brand
:
Regular price
$5,523.20 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Zoeller Model GX840 Grinder Explosion Proof Pump Description
"The Shark". This series of submersible grinder pumps is designed for use in residential or commercial wastewater applications in Class I, Division 1, Groups C and D environments. Each pump is FM/CSA approved and features innovative motor and electrical enclosures that are designed to reduce the risk of vapor ignition both inside and outside the pump. Should vapors inside the electrical enclosures become ignited, the enclosures are engineered to contain the event and prevent escalation. Each pump is constructed of hardware that will allow it to operate safely and efficiently in extreme conditions.
Zoeller Model GX840 Grinder Explosion Proof Pump Features and Benefits
- Corrosion-Resistant, Powder Coated Epoxy Finish.
- Oil-Filled, Hermetically Sealed Motor with Class F Insulation.
- Hardened Stainless Steel Cutter and Disc Rockwell C55-60.
- Stainless Steel Screws, Bolts and Lifting Bail.
- Dual Mechanical Seals with Leak Detection.
- Thermal Sensor Protection.
- Legs Provide for Free Standing Installation.
- Preassembled Systems Available.
- Threaded Conduit Connection on Pump Cap to Provide Protection to Power Cord and Sensor Wires.
- 1-1/4" NPT Vertical Discharge
- Requires Circuit in Control Panel to Function. Reversible Feature only Available on X840 Models.
Specifications
Specifications
Zoeller Model GX840 Grinder Explosion Proof Pump Specifications
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 2.0 HP
- AMPS: 5.5
- MOTOR TYPE: 3 Phase
- RPM: 3450 RPM
- MAX HEAD: 104'
- MAX FLOW RATE: 45 GPM
- DISCHARGE SIZE: 1¼" NPT Vertical
- IMPELLER TYPE: Ductile Iron, Non-Clogging Vortex
- CORD LENGTH: 50'
- CORD TYPE: UL listed, SOOW
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 104°F (40C)
Zoeller Model GX840 Performance Curve
