Discontinued - 840 Reversing Grinder Pump

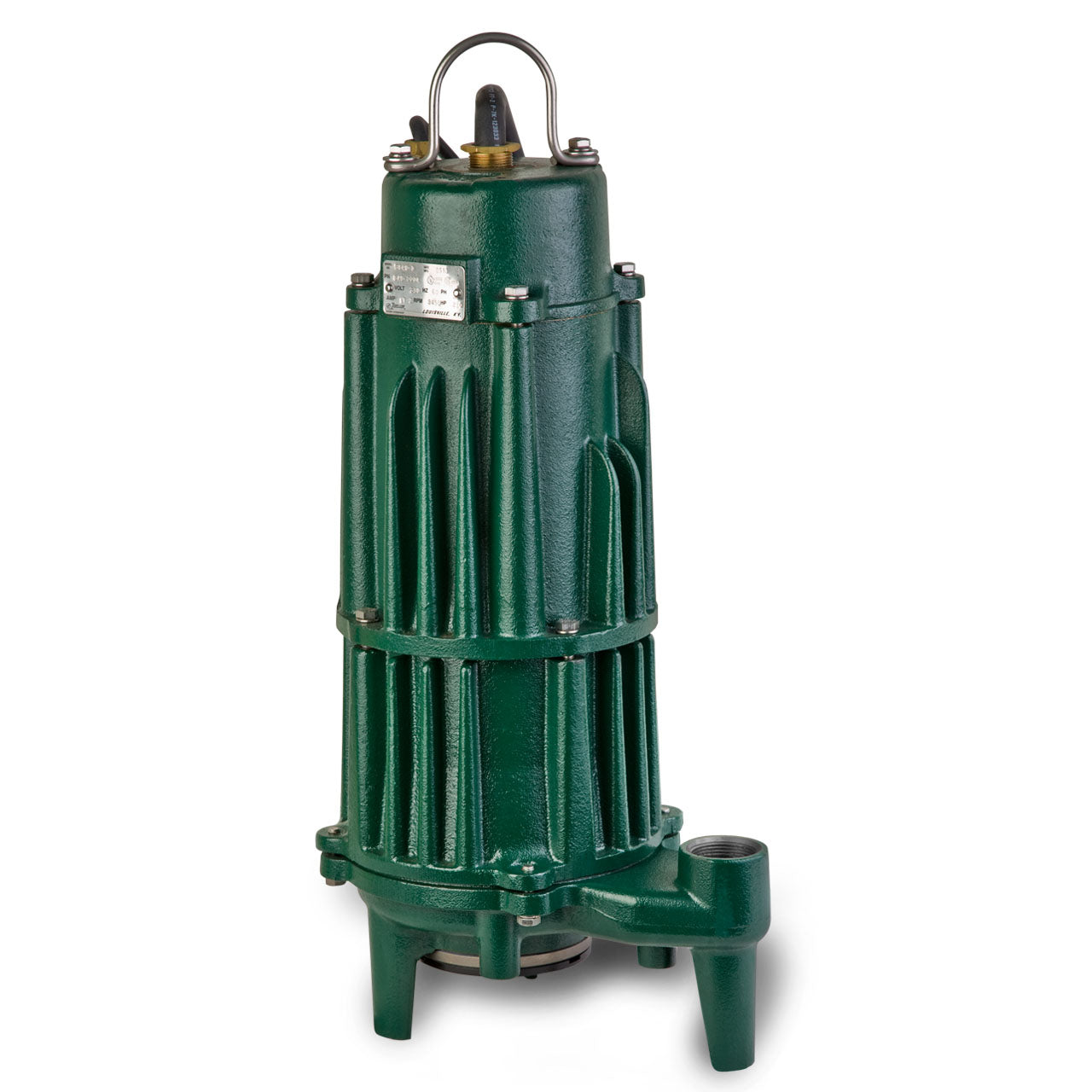

Zoeller Model BA840 Grinder Pump Description

The Shark® series of submersible grinder pumps is designed for use in residential or commercial wastewater applications and can be used to transfer raw sewage. Each pump features an innovative cutting mechanism, allowing it to grind solids into fine particles. When used in conjunction with a properly equipped control panel, the Model 840 utilizes an automatic reversing cutter, which doubles the service life of a single-direction grinder and prevents clogging. The uniform consistency of the discharged material reduces the risk of clogs in the pipe, yielding less down time and fewer service calls. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion, and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller® pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance! This attention to detail is an inherent feature of every pump in this series, making it one of the most reliable in the industry.

Zoeller Model BA840 Grinder Pump Features and Benefits

• Durable, Heavy-Duty Finned Cast Iron Construction
• Oil-Filled, Hermetically Sealed Motor with Class F Insulation

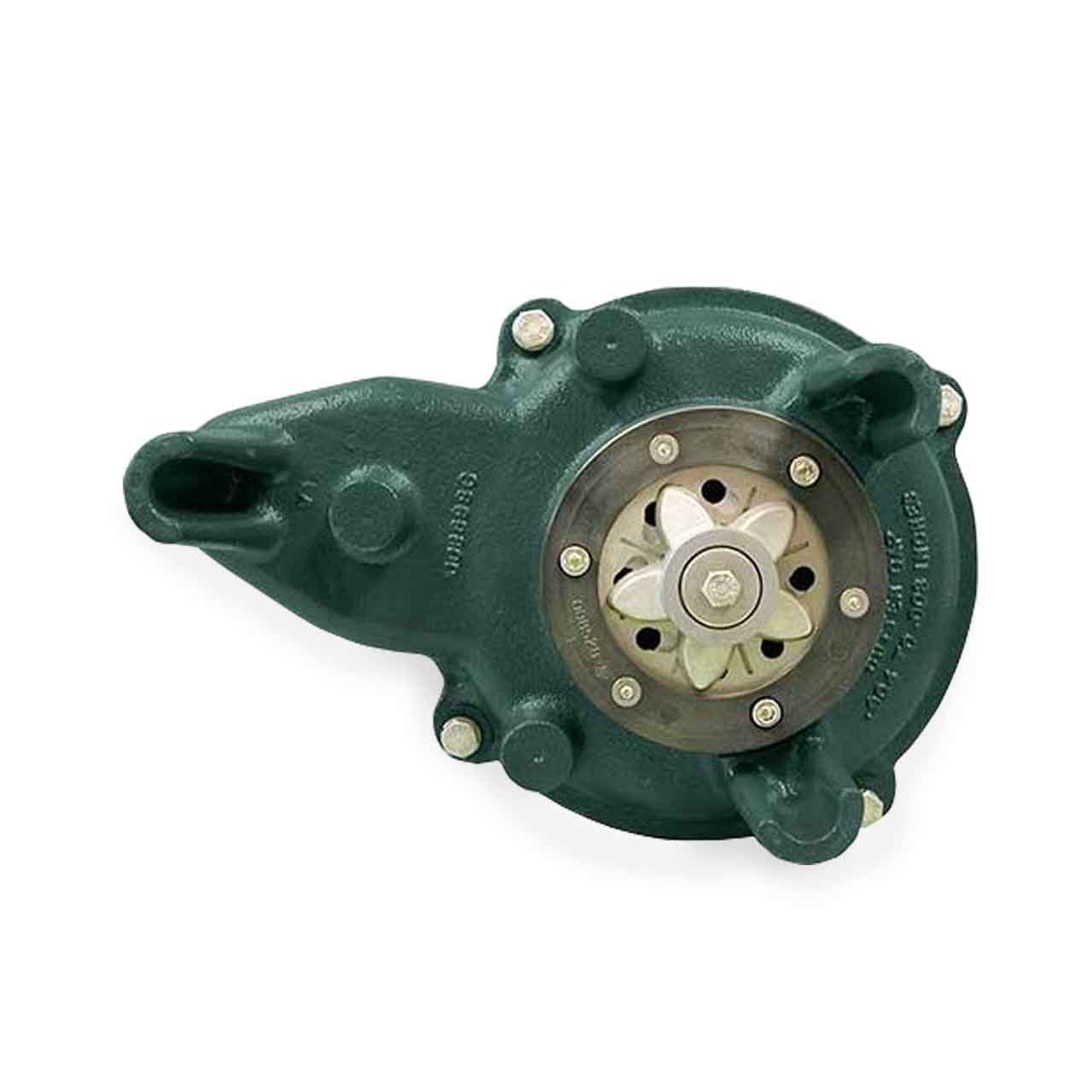

• Hardened Stainless Steel Cutter and Disc
• Cutters Protected from Abrasive Solids
• Cutters can Automatically Alternate Direction to Enhance Blade Life and Free Hang-Ups
• Stainless Steel Screws, Bolts and Lifting Bail
• Easily Adapts to Many Existing Competitors’ Rail Systems
• Tandem Seals with Leak Detection
• Automatic Thermal Overload Protection
• Legs Provide for Free Standing Installation
• Preassembled Systems Available
• Corrosion-Resistant, Powder Coated Epoxy Finish

Standard Features:

• Reversible Cutter Action
• 1-1/4" NPT Vertical Discharge
• Carbon/Ceramic Tandem Seals
• Balanced Ductile Iron Impeller
• Stainless Steel Cutter and Plate (R-C 5560)
• Stainless Steel Shaft
• Stainless Steel Lifting Bail
• Corrosion-Resistant, Powder Coated Epoxy Paint
• 20' Power Cord, 20' (6m) Sensor Cord

• VOLTAGE: 3ø, 575V, 60Hz
• HORSEPOWER: 2.0 HP
• AMP DRAW (full load): 4.5
• MOTOR TYPE: Capacitor Start / Capacitor Run
• RPM: 3450
• MAXIMUM HEAD: 104'
• MAXIMUM CAPACITY: 45 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 1-1/4" NPT Vertical
• IMPELLER TYPE: Ductile Iron, Non-Clogging Vortex
• CORD LENGTH: 20' Type SOW or SOOW Multi-Wire Neoprene
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 130°F (54C)

Zoeller Model BA840 Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Zoeller Model BA840 Product Resources

Download Zoeller Model 840 Sales Sheet FM3184

Download Zoeller Model 840 Technical Data FM2799

Download Zoeller Model 840 Parts List FM1308

Download Zoeller Model 840 Installation Instructions FM1239

Download Zoeller Model 840, 841, 842 Owner's Manual FM2168

Download Zoeller Model 840 "Indoor/Outdoor" Simplex Grinder System FM1530

Download Zoeller Model 840 "Outdoor" Simplex/Duplex Grinder System FM1508

Download Zoeller Model 840 Engineering Specs FM1627

Zoeller Control Panel with Automatic Reversing Circuit Std. Simplex. (840 only) 10-0393

Download Zoeller Grinder Pump Sizing Information FM1326
