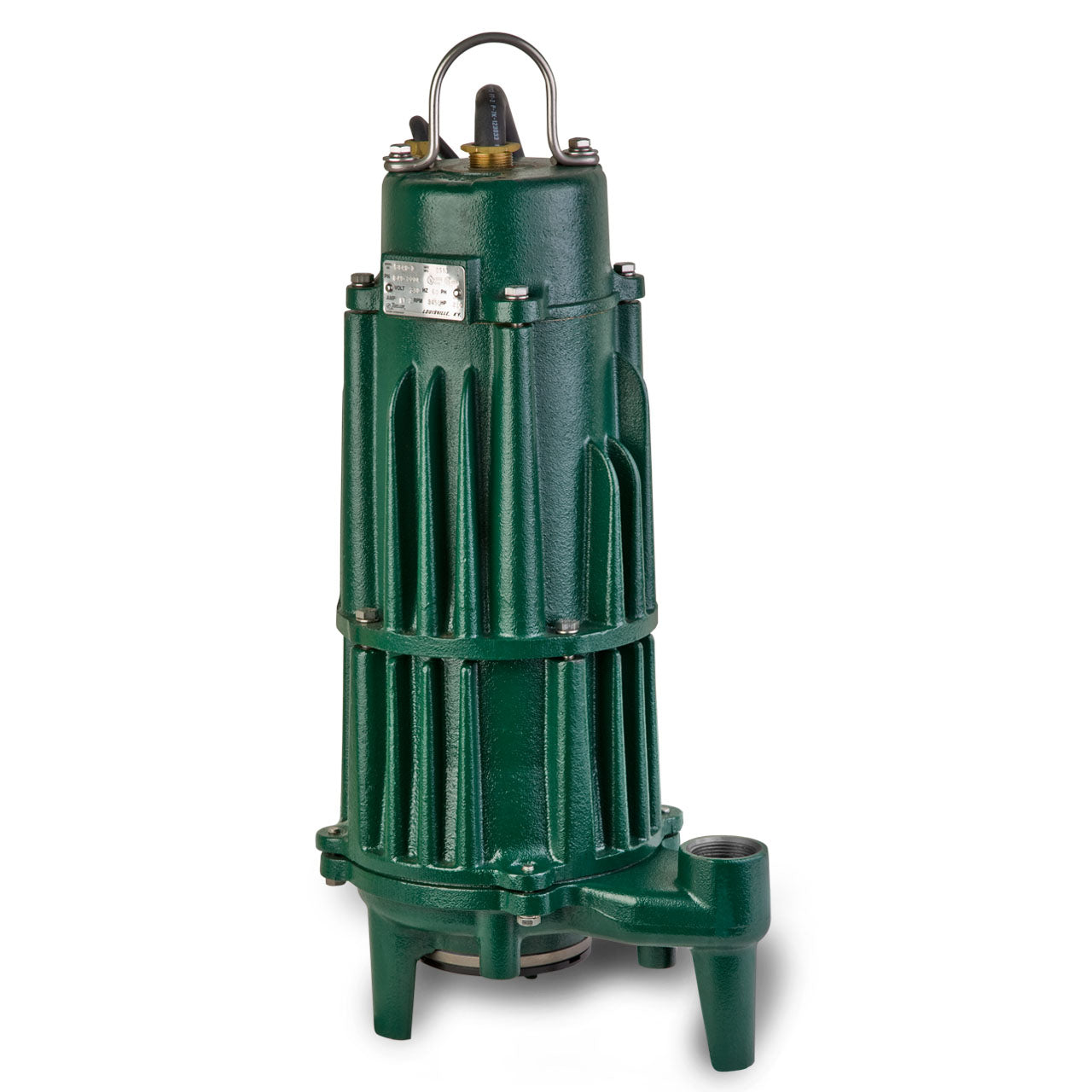

Zoeller Model 840 Auto Reversing Grinder Pump Description

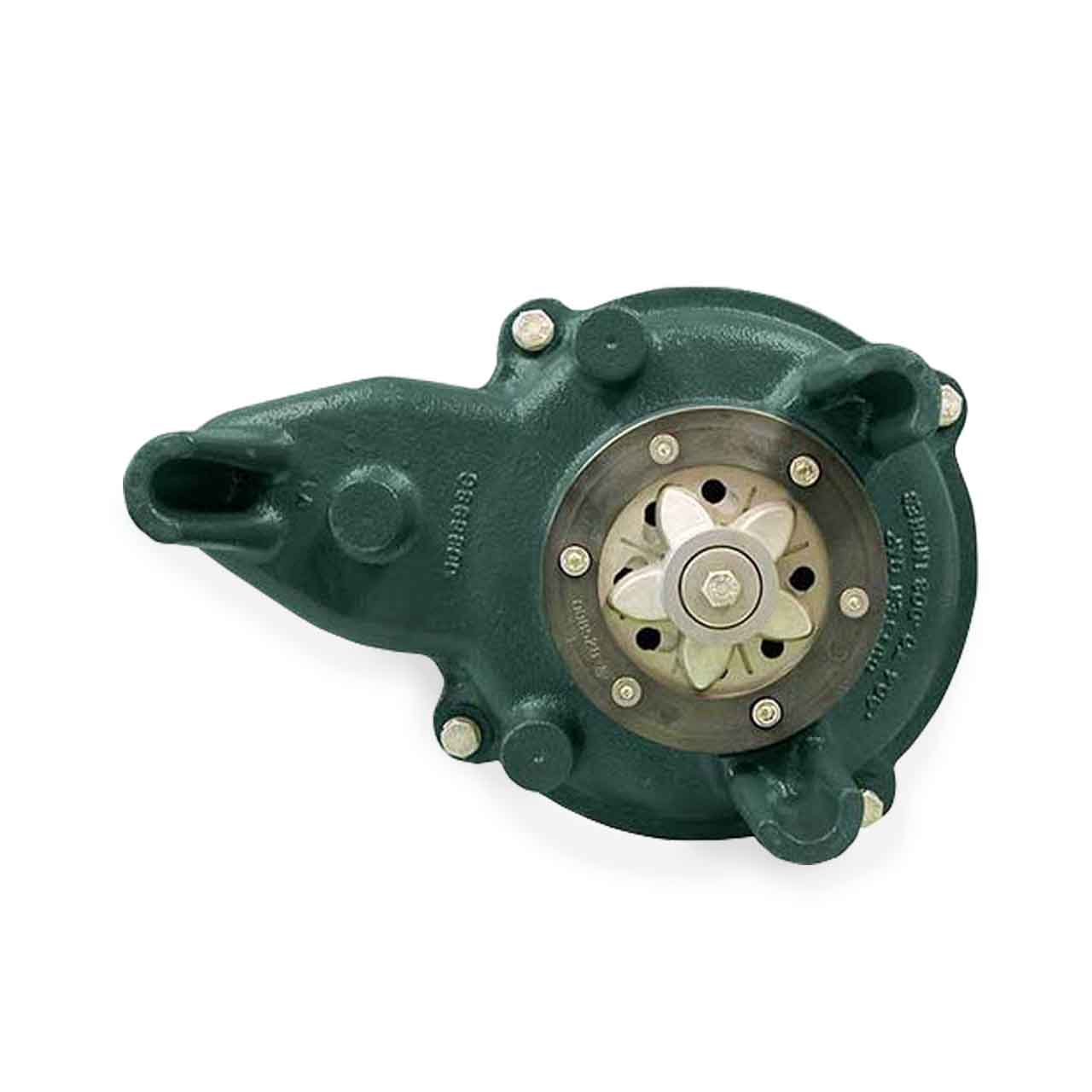

The industry’s only automatic, reversing grinder pump is designed to pump raw sewage in a sewage ejector application. Solids are cut into a slurry using the industry proven “scissor like” Tri-Slice ® cutter technology. This includes a rotating cutter cutting against the stationary cutter plate reducing solids down to 1/8″. The 460 Volt, 2 HP, Model 840 utilizes a vortex impeller. Every time the pump is called to run, the cutter assembly will pump a different direction as the previous rotation. This action reduces the potential of stringy material wrapping around the cutter assembly.

The Shark Series® G840 should use a control panel and control switches allowing it to turn the pump on when called upon. The Model 840 is constructed with a cast iron body, enabling it to withstand the most demanding sewage ejector applications. The pump’s identification tag, handle, and hardware are made of high-quality stainless steel preventing rust and corrosion. Everything about the pump is designed in a way that allows it to hold up in the toughest sewage conditions.

Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.

Zoeller Model 840 Auto Reversing Grinder Pump Features and Benefits

• Oil-Filled Motor and Cast Iron Motor Housing for Optimal Heat Dissipation Which Prevents the Pump from Overheating
• Nonautomatic Grinder Pump Requires the Use of a Control Panel and Control Floats for the On/Off Operation
• Proven Tri-Slice® Cutter Technology: Three Independent Cutting Channels Provide Over 250,000 Cuts Per Minute
• Powder-Coated Epoxy Finish Provides Corrosion-Resistance and Extends the Life of the Pump in Harsh Environments
• Stainless Steel Screws, Handle and Hardware to Prevent Rust and Corrosion Over the Life of the Pump in Harsh Environments
• Stainless Steel Screws, Handle and Hardware to Prevent Rust and Corrosion over the Life of the Pump
• 100% Factory Tested - Every Pump is Submerged in Water and Tested at the Factory to Ensure That it Performs as Expected When You Receive it
• Comes with a 1-Year Limited Warranty Giving You Protection Over Your Investment and the Peace of Mind You Expect in a Quality Product

• VOLTAGE: 3ø, 460V, 60Hz
• HORSEPOWER: 2.0 HP
• AMP DRAW (full load): 5.5
• MOTOR TYPE: Capacitor Start / Capacitor Run
• RPM: 3450
• MAXIMUM HEAD: 104'
• MAXIMUM CAPACITY: 45 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 1-1/4" NPT Vertical
• IMPELLER TYPE: Ductile Iron, Non-Clogging Vortex
• CORD LENGTH: 20' Type SOW or SOOW Multi-Wire Neoprene
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 130°F (54C)

Zoeller Model 840 Auto Reversing Grinder Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Zoeller Model 840 Auto Reversing Grinder Pump Product Resources

Download Zoeller Model 840 Auto Reversing Grinder Pump Sales Sheet FM3184

Download Zoeller Model 840 Auto Reversing Grinder Pump Technical Data FM2799

Download Zoeller Model 840 & 841 Auto Reversing Grinder Pump Owner's Manual FM2168

Download Zoeller Model 840 Auto Reversing Grinder Pump Parts List FM1308

Download Zoeller Model 840 "Indoor/Outdoor" Simplex Grinder System FM1530

Download Zoeller Model 840 "Outdoor" Simplex/Duplex Grinder System FM1508

Download Zoeller Model 840 Auto Reversing Grinder Pump Engineering Specs FM1627

Zoeller Control Panel with Automatic Reversing Circuit Std. Simplex. (840 only) 10-0393
