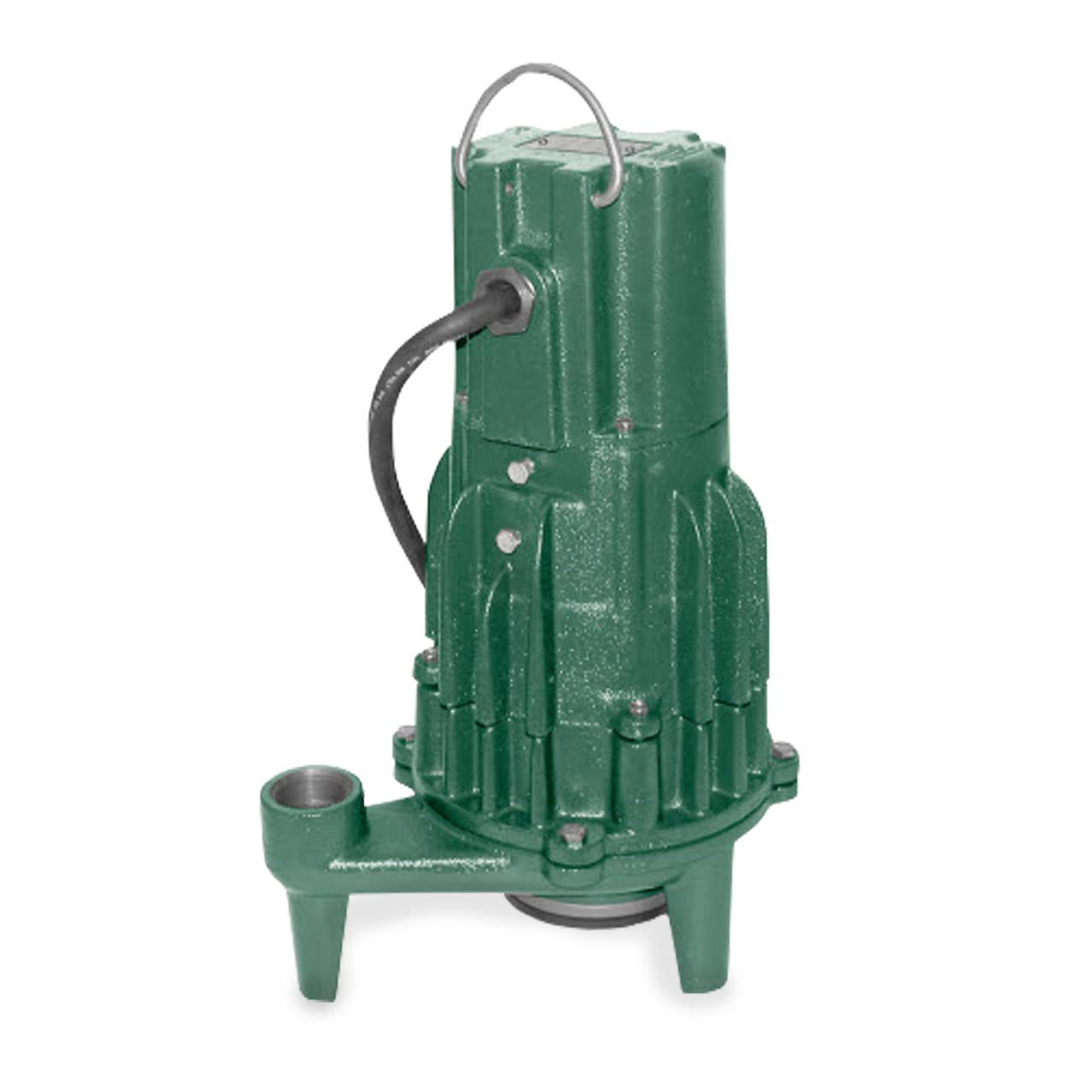

Zoeller 820-0004 Model E820 "Shark" Single Directional Grinder Pump 2.0 HP 230V 1PH 20' Cord Nonautomatic
Zoeller 820-0004 Model E820 "Shark" Single Directional Grinder Pump 2.0 HP 230V 1PH 20' Cord Nonautomatic
SKU : ZLR820-0004
In Stock Quantity:4
:
Brand
:
Regular price
$2,114.40 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Zoeller Model E820 Grinder Pump Description

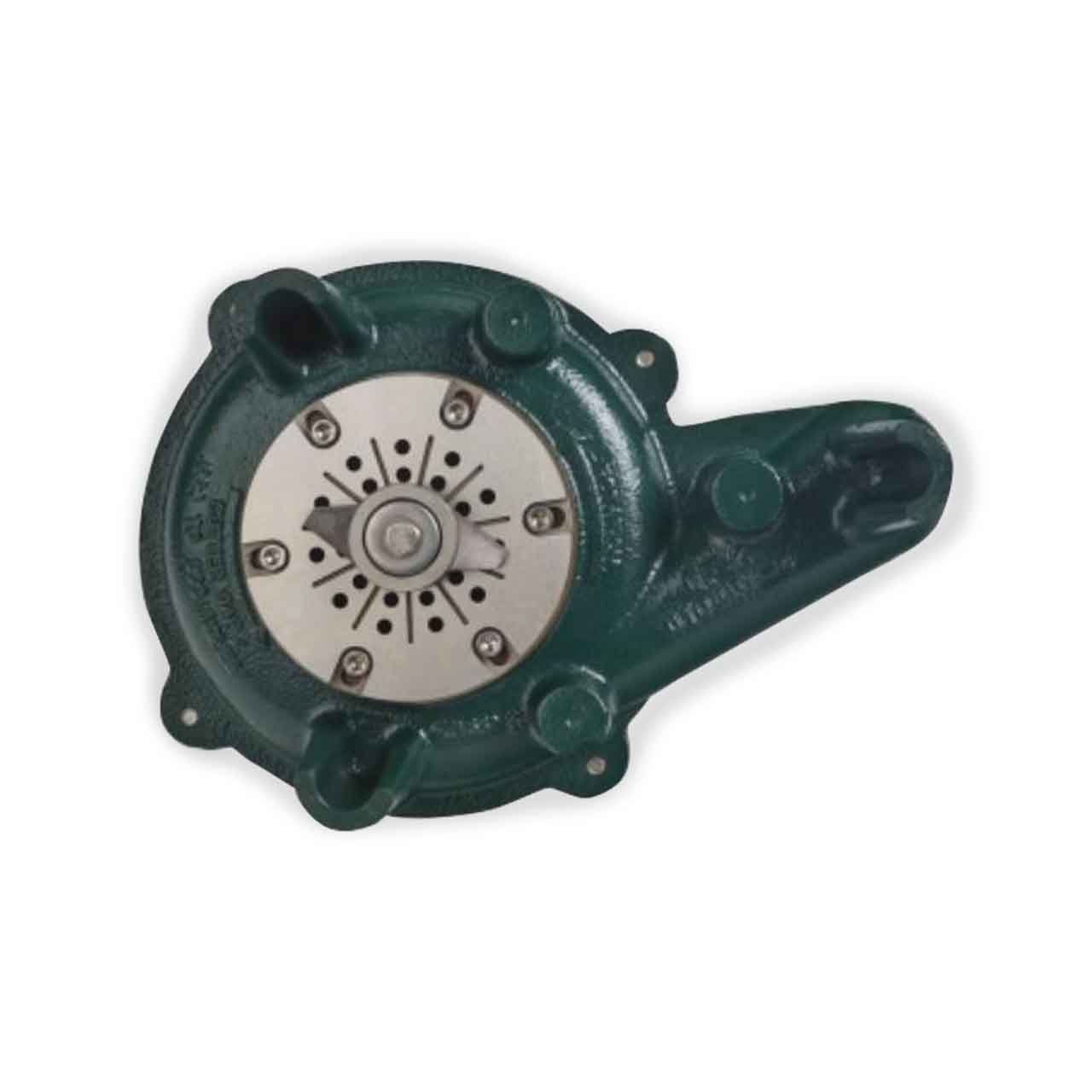

Our Model E820 Sewage Grinder Pump is designed to pump raw sewage in a sewage application. Solids are cut into a slurry using the industry proven “scissor like” Tri-Slice ® cutter technology. This includes a rotating cutter cutting against the stationary cutter plate reducing solids down to 1/8″. The 230 Volt, 2 HP, Model 820 utilizes a vortex impeller.
The E820 should use a control panel and control switches allowing it to turn the pump on when called upon. The Model 820 is constructed with a cast iron body, enabling it to withstand the most demanding sewage ejector applications. The pump’s identification tag, handle, and hardware are made of high-quality stainless steel preventing rust and corrosion. Everything about the pump is designed in a way that allows it to hold up in the toughest sewage conditions.
Zoeller Model E820 Grinder Pump Features and Benefits
- Oil-Filled Motor and Cast Iron Motor Housing for Optimal Heat Dissipation which Prevents the Pump from Overheating
- Nonautomatic Pump (Piggyback Variable Level Float Switch Available Separately)
- Proven Tri-Slice® Cutter Technology: Three Independent Cutting Channels Provide over 250,000 Cuts Per Minute
- Powder-Coated Epoxy Finish Provides Corrosion-Resistance and Extends the Life of the Pump in Harsh Environments
- Stainless Steel Screws, Handle and Hardware to Prevent Rust and Corrosion Over the Life of the Pump
- 100% Factory Tested - Every Pump is Submerged in Water and Tested at the Factory to Ensure That it performs as Expected When You Receive it
- Comes With a 3-Year Limited Warranty Giving You Protection Over Your Investment and the Peace of Mind You Expect in a Quality Product
Specifications
Specifications
Zoeller 820-0004 Grinder Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 2.0 HP
- AMP DRAW (full load): 13.7
- MOTOR TYPE: Capacitor Start / Capacitor Run
- RPM: 3450
- MAXIMUM HEAD: 108'
- MAXIMUM CAPACITY: 47 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 1-1/4" NPT
- IMPELLER TYPE: Engineered Plastic with Stainless Steel Insert, Vortex
- CORD LENGTH: 20' Type SOW or SOOW Multi-Wire Neoprene
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 130°F (54C)
Zoeller Model E820 Grinder Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model E820 Grinder Pump Product Resources
Download Zoeller Model 820 Series Grinder Pump Brochure FM2966
Download Zoeller Model 820 Grinder Pump Technical Data Sheet FM2798
Download Zoeller Model 820 Grinder Pump Owner's Manual FM2167
