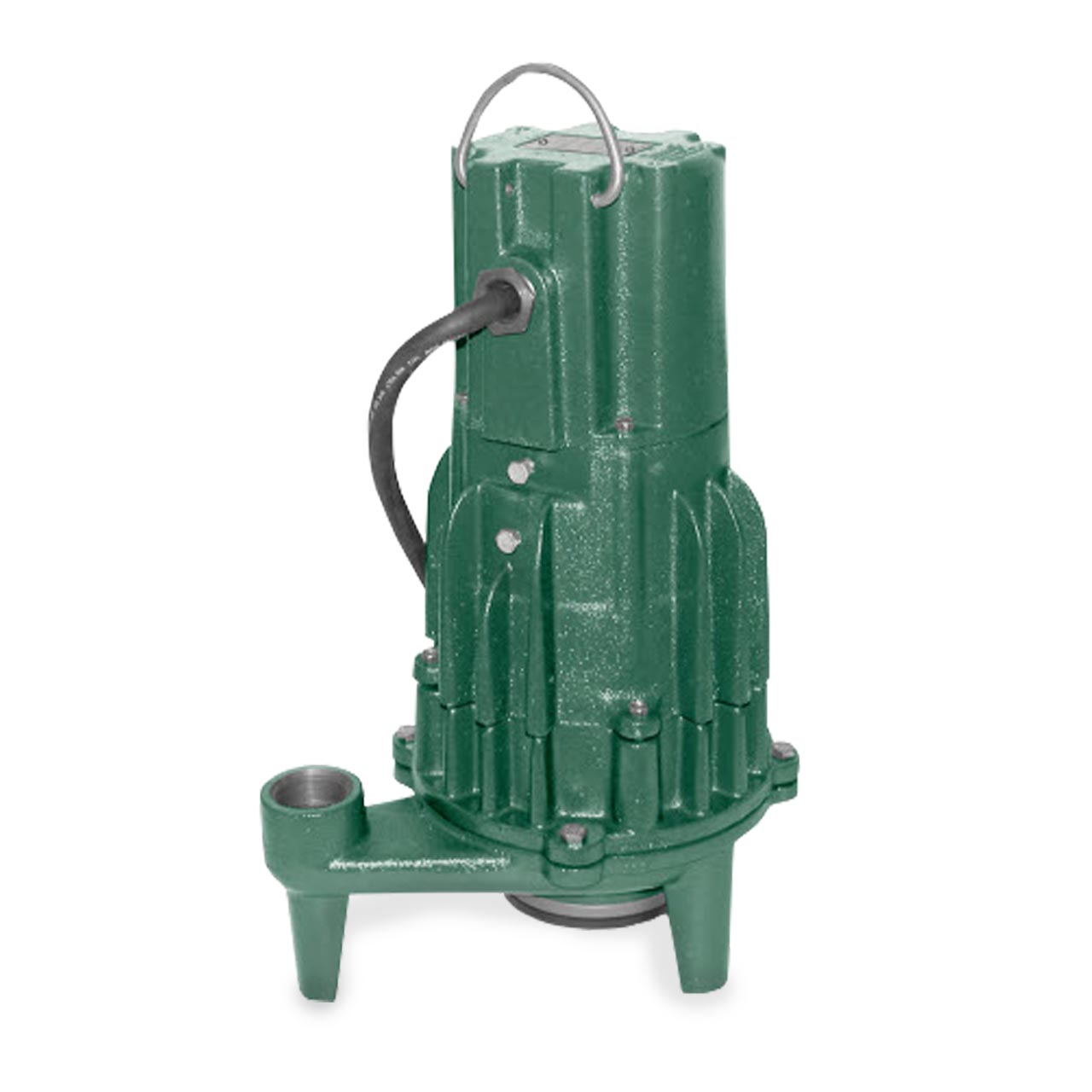

Discontinued -  Zoeller 820-0005 Model WH820 "Shark" Single Directional Grinder Pump 2.0 HP 200V 1PH 20' Cord Automatic

Zoeller Model I819 Grinder Pump Description

This series of submersible pumps is designed for use in residential or commercial wastewater applications and can be used to transfer wastewater or unscreened raw sewage. Each pump features an innovative cutting mechanism allowing it to grind solids into fine particles. The uniform consistency of the discharged material lessens the risk of clogs in the pipe, yielding less down time and fewer service calls. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion, and are designed to provide great heat dissipation from the motor. As with every Zoeller® pump, each one is 100% factory tested to ensure quality and reliability for years of trouble-free performance!

Zoeller Model I819 Grinder Pump Features and Benefits

• Durable Heavy-Duty, Finned Cast Iron Construction
• Legs Provided for Free-Standing Installation
• Oil-Filled, Hermetically Sealed Motor with Class B Insulation, Automatic Reset Thermal Overload Protected

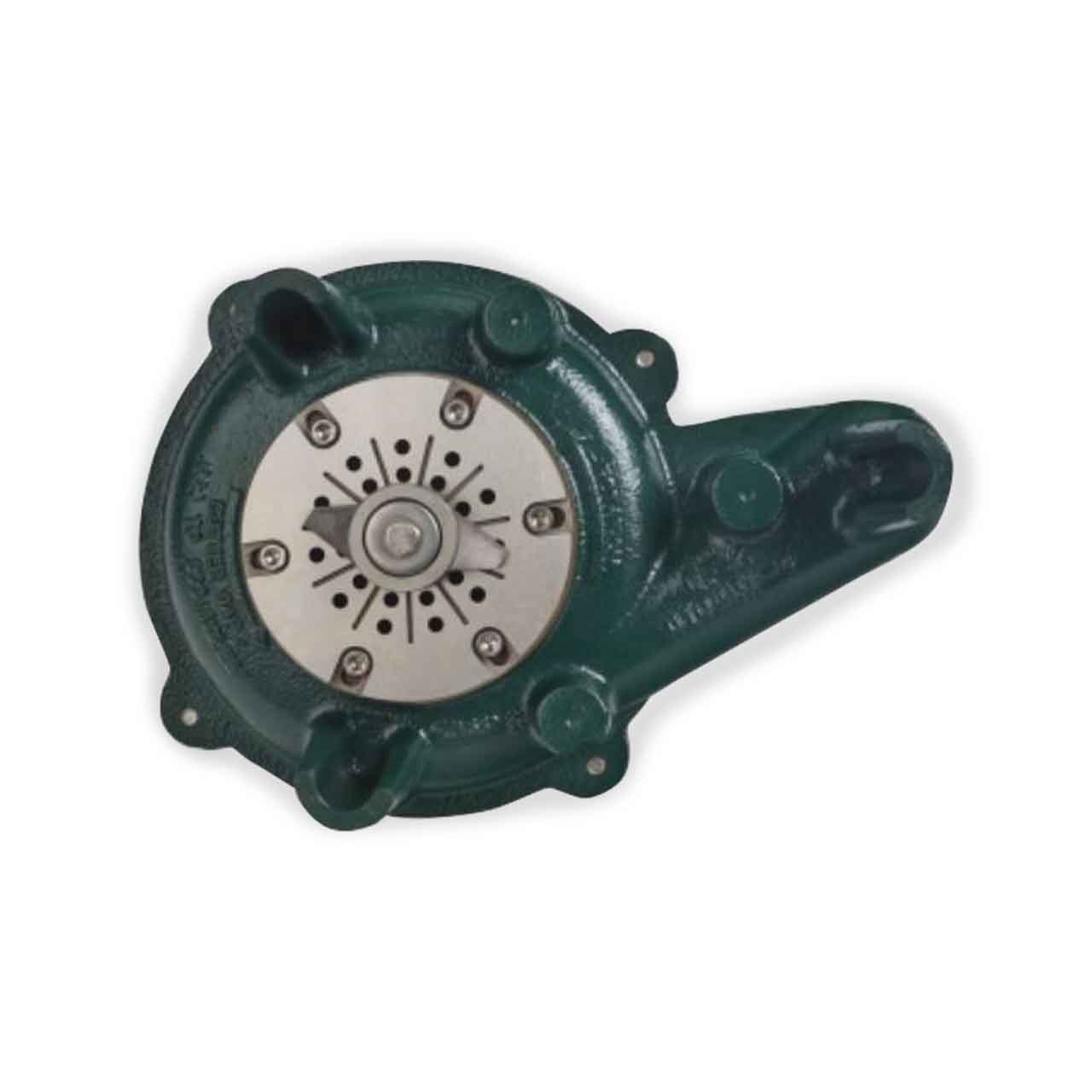

• Hardened Stainless Steel Cutter and Disc
• Cutters Protected from Abrasive Solids
• Stainless Steel Lifting Handle, Screws and Bolts
• Easily Adapts to Rail Systems
• Mechanical Shaft Seal - Carbon/Ceramic
• Control Panels not Required
• Simplex Grinder Package Systems (unassembled and job ready/assembled) available
• Corrosion-Resistant, Powder Coated Epoxy Finish
• Maximum Operating Temperature: 130°F (54°C)

Standard Features:

• 1¼” NPT Vertical Discharge
• Carbon/Ceramic Seals
• Thermal Overload Protection
• Engineered Plastic Impeller
• Stainless Steel Cutter Plate/Cutter
• Stainless Steel Shaft
• Stainless Steel Hardware

• VOLTAGE: 1ø, 200-208V, 60Hz
• HORSEPOWER: 1.5 HP
• AMP DRAW (full load): 12.0
• MOTOR TYPE: Capacitor Start / Capacitor Run
• RPM: 3450
• MAXIMUM HEAD: 81'
• MAXIMUM CAPACITY: 43 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 1-1/4" NPT
• IMPELLER TYPE: Engineered Plastic with Stainless Steel Insert, Vortex
• CORD LENGTH: 20' Type SOW or SOOW Multi-Wire Neoprene
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 130°F (54C)

Zoeller Model I819 Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Zoeller Model I819 Product Resources

Download Zoeller Model 819 Series Brochure FM2966

Download Zoeller Model 819 Technical Data Sheet FM2798

Download Zoeller Model 819 Specifications Sheet FM2397

Download Zoeller Model 819 Owner's Manual FM2167

Download Zoeller Model 819 Parts List FM2993

Download Zoeller Grinder Pump Sizing Information FM1326
