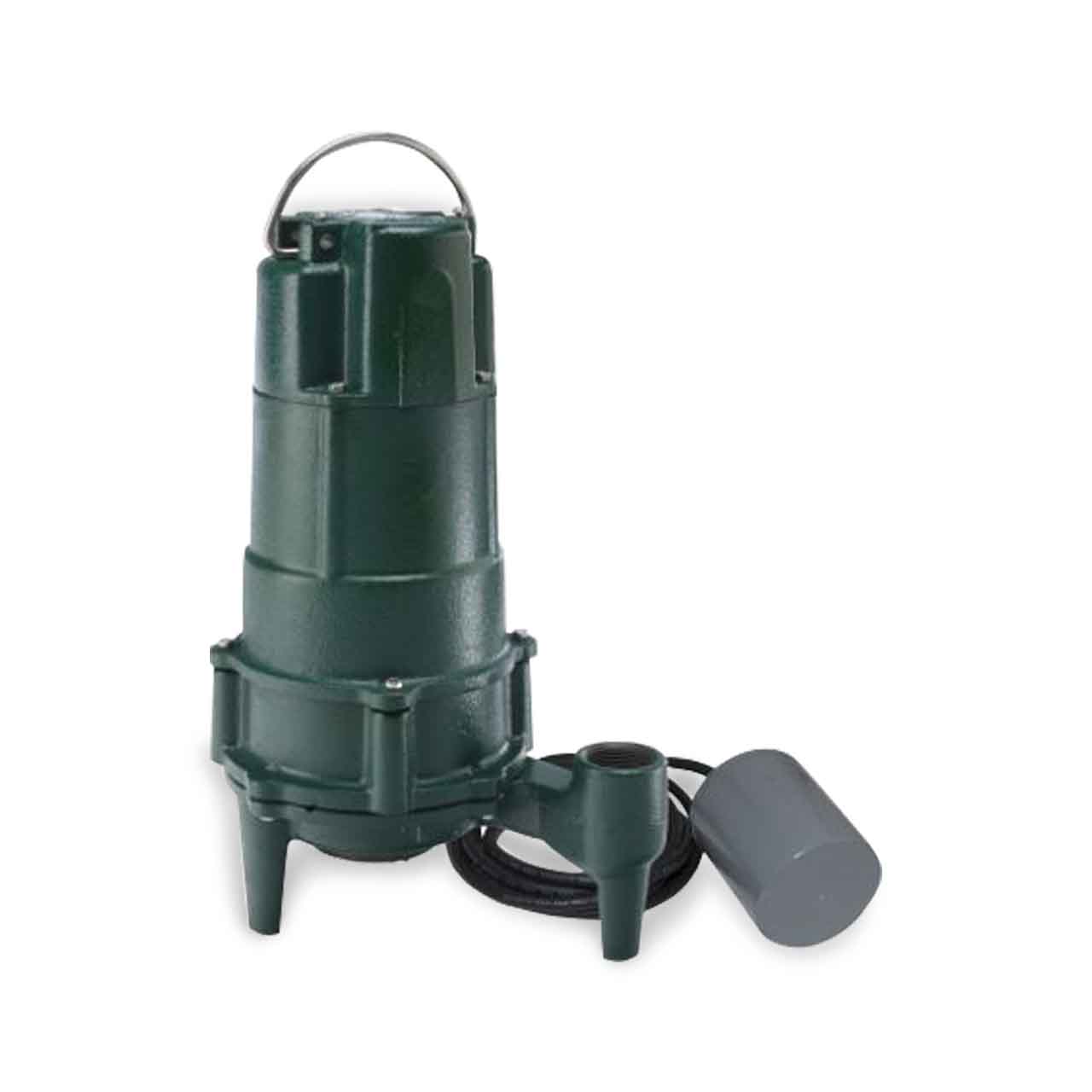

Zoeller Model BE807 Grinder Pump Description

The Shark Series Grinder Pump is designed to remove raw sewage in sewage ejector applications. The professional-grade, 1 HP 807 os a time-tested and reliable grinder pump. The industry proven "scissor like" Tri-Slice cutter technology includes a rotating cutter cutting against the stationary cutter plate reducing solids down to 1/8". The vortex impeller passed the slurry through the pump housing. This combination of features lessens the chance of clogging and downtime.

The Model 807's switch case, motor housing, pump housing and base are each constructed of cast iron. The pumps' identification tag, float guard, handle, switch arm and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 807 is able to withstand the most demanding sewage ejector applications.

Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box

Zoeller Model BE807 Grinder Pump Features and Benefits

• Oil-Filled Motor and Cast Iron Housing for Optimal Heat Dissipation which Prevents the Pump from Overheating
• Automatic Pump with a Time-Tested, Reliable, Preset, Built-In Snap Action that Makes for and Easy Installation
• Proven Tri-Slice Cutter Technology: Three Independent Cutting Channels Provide over 250,000 Cuts Per Minute
• Stainless Steel Float Guard that Prevents Material and Debris from Collecting on the Float Ensuring Proper Operation Every Time
• Solid, Buoyant, Polypropylene Float to Eliminate the Possibility of Water Infiltration Allowing the Float to Remain Buoyant and Functional at all Times
• Powder-Coated Epoxy Finish Provides Corrosion-Resistance and Extends the Life of the Pump in Harsh Environments
• Stainless Steel Screws, Switch Arm, Guard, Handle and Hardware to prevent Rust and Corrosion over the Life of the Pump
• 100% Factory Tested - Every Pump is Submerged in Water and Tested at the Factory to Ensure that it Performs as Expected when you Receive it.
• Comes with a 3-Year Limited Warranty Giving You Protection Over Your Investment and the Peace of Mind you Expect in a Quality Product

• VOLTAGE: 1ø, 230V, 60Hz
• HORSEPOWER: 1.0 HP
• AMP DRAW (full load): 5.0
• MOTOR TYPE: Capacitor Start, Capacitor Run
• RPM: 3400
• MAXIMUM HEAD: 55'
• MAXIMUM CAPACITY: 45 GPM
• SWITCH TYPE: Single Piggyback Switch
• DISCHARGE PIPE SIZE: 1-1/4" NPT
• IMPELLER TYPE: Engineered Plastic, Non-Clogging Vortex
• CORD LENGTH: 15' Type UL Listed 3-Wire Plug and 15' Cord on VLFS
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 130°F (54C)

Zoeller Model BE807 Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Zoeller Model BE807 Product Resources

Download Zoeller 807 Series Brochure FM2957

Download Zoeller Model 807 Parts List FM2918

Download Zoeller Model 807 Installation Instructions FM2903

Download Zoeller Model 807 Technical Sheet FM2882

Download Zoeller Grinder Pump Sizing Information FM1326
