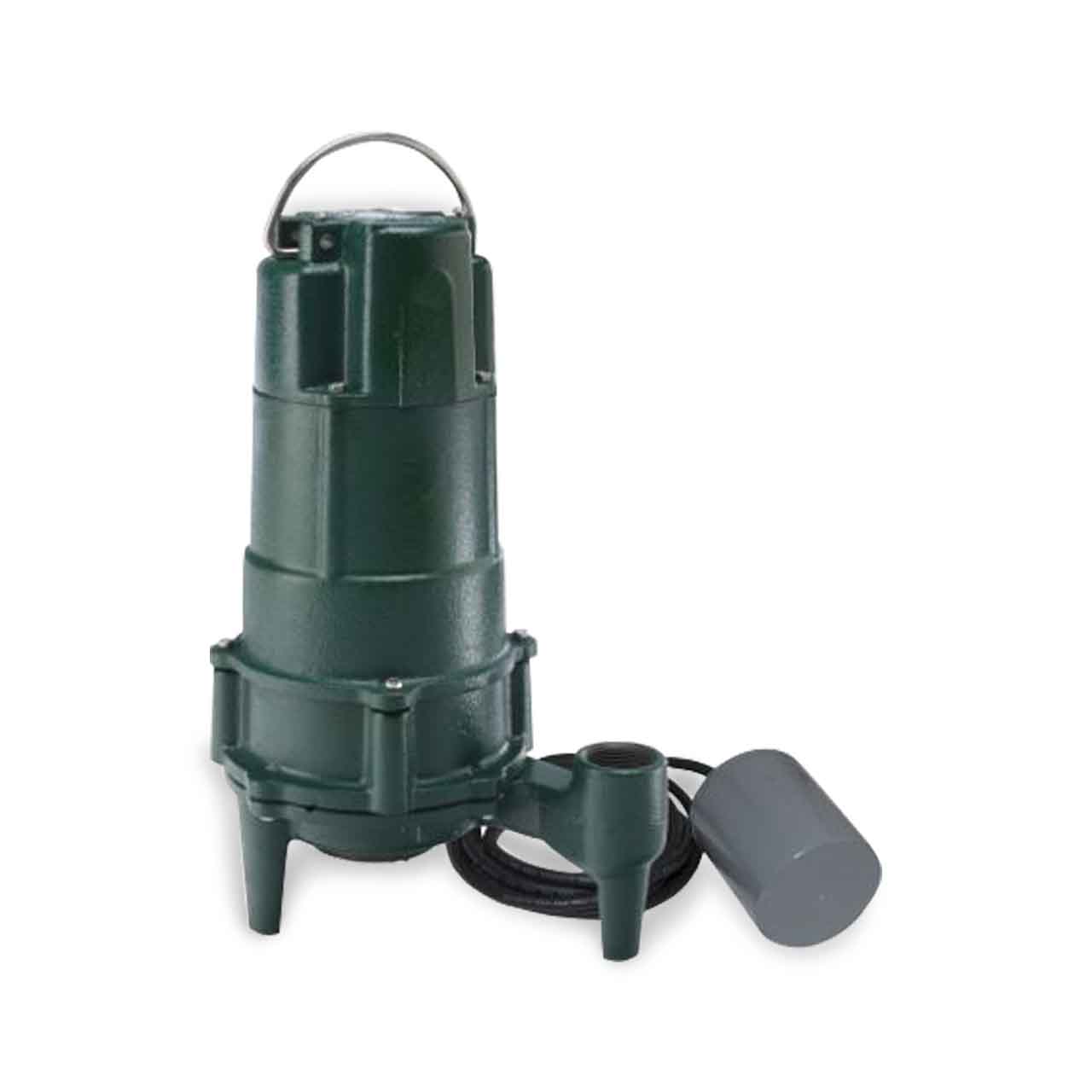

Zoeller Model BN807 Grinder Pump Description

Fractional HP Grinder Series. World's first integral automatic grinder. All cast iron grinder series for difficult residential applications where ejectors struggle. Handles entire household of "flushable" materials. 115/230 volt grinders for residential use without commercial grinder costs.

Zoeller Model BN807 Grinder Pump Features and Benefits

• 803 - ½ HP, 805 - ¾ HP, 807 - 1 HP
• Performance up to 55' (16.8 m)
• 115/230 V grinders for residential use without commercial grinder costs
• Oil-Filled, Hermetically Sealed Motor with Class B Insulation, Automatic Reset Thermal Overload Protected
• Oil filled for optimal heat dissipation
• Proven Tri-Slice® cutter technology - three independent cutting channels provide over 250,000 cuts per minute.
• Stainless steel cutter and plate
• Automatic and nonautomatic available
• 100% factory tested

• VOLTAGE: 1ø, 115V, 60Hz
• HORSEPOWER: 1.0 HP
• AMP DRAW (full load): 11.0
• MOTOR TYPE: Capacitor Start, Capacitor Run
• RPM: 3400
• MAXIMUM HEAD: 55'
• MAXIMUM CAPACITY: 45 GPM
• SWITCH TYPE: Single Piggyback Switch
• DISCHARGE PIPE SIZE: 1-1/4" NPT
• IMPELLER TYPE: Engineered Plastic, Non-Clogging Vortex
• CORD LENGTH: 15' Type UL Listed 3-Wire Plug and 15' Cord on VLFS
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 130°F (54C)

Zoeller Model 807 Grinder Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Zoeller Model 807 Grinder Pump Product Resources

Download Zoeller 807 Grinder Pump Series Brochure FM2957

Download Zoeller Model 807 Grinder Pump Technical Sheet FM2882

Download Zoeller Model 807 Grinder Pump Installation Instructions FM2903

Download Zoeller Model 807 Grinder Pump Parts List FM2918

Download Zoeller Grinder Pump Sizing Information FM1326
