Zoeller 76-0001 Model M76 Dewatering Pump 0.5 HP 115V 1PH 9' Cord Auto
Zoeller 76-0001 Model M76 Dewatering Pump 0.5 HP 115V 1PH 9' Cord Auto
SKU : ZLR76-0001
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
DISCONTINUED - Zoeller

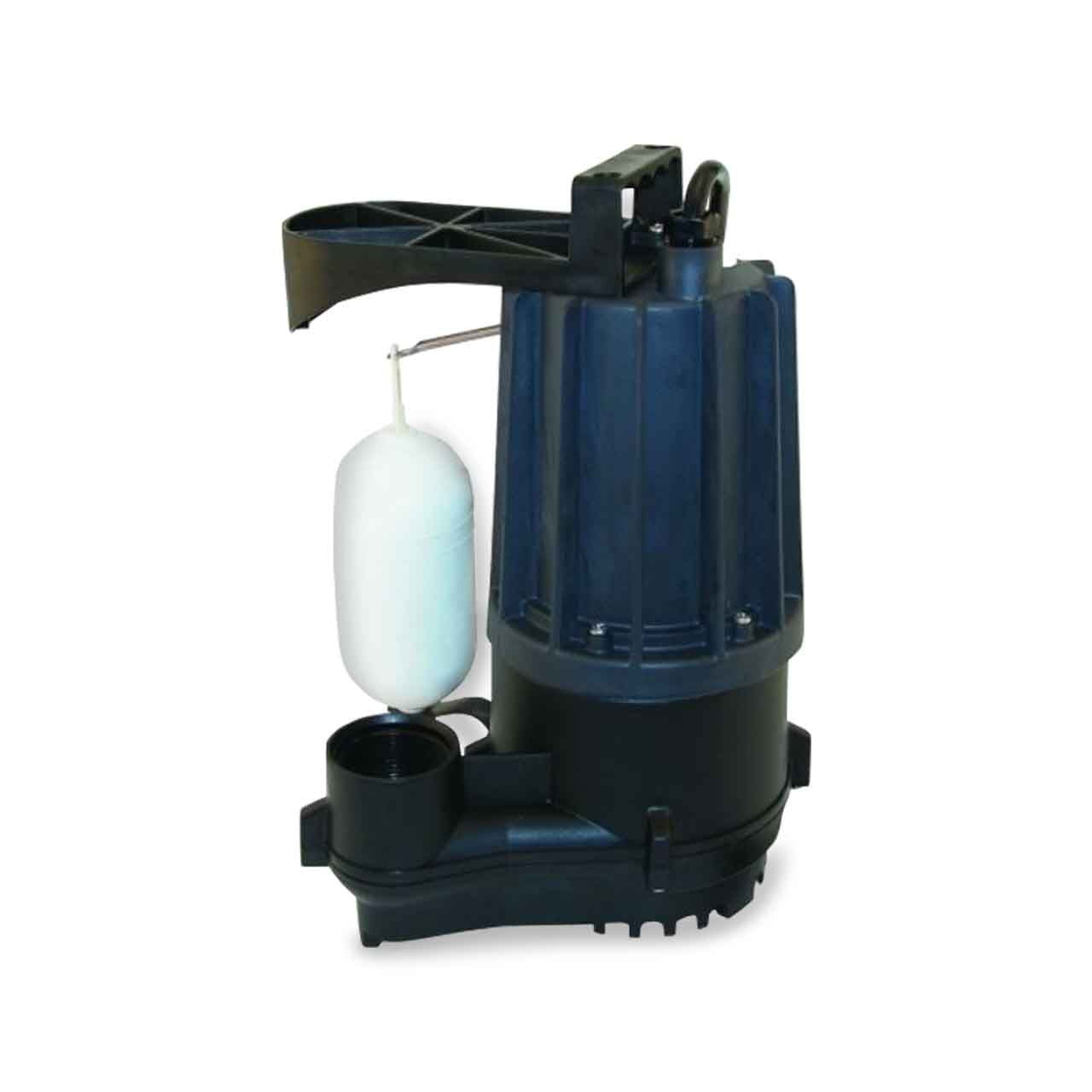

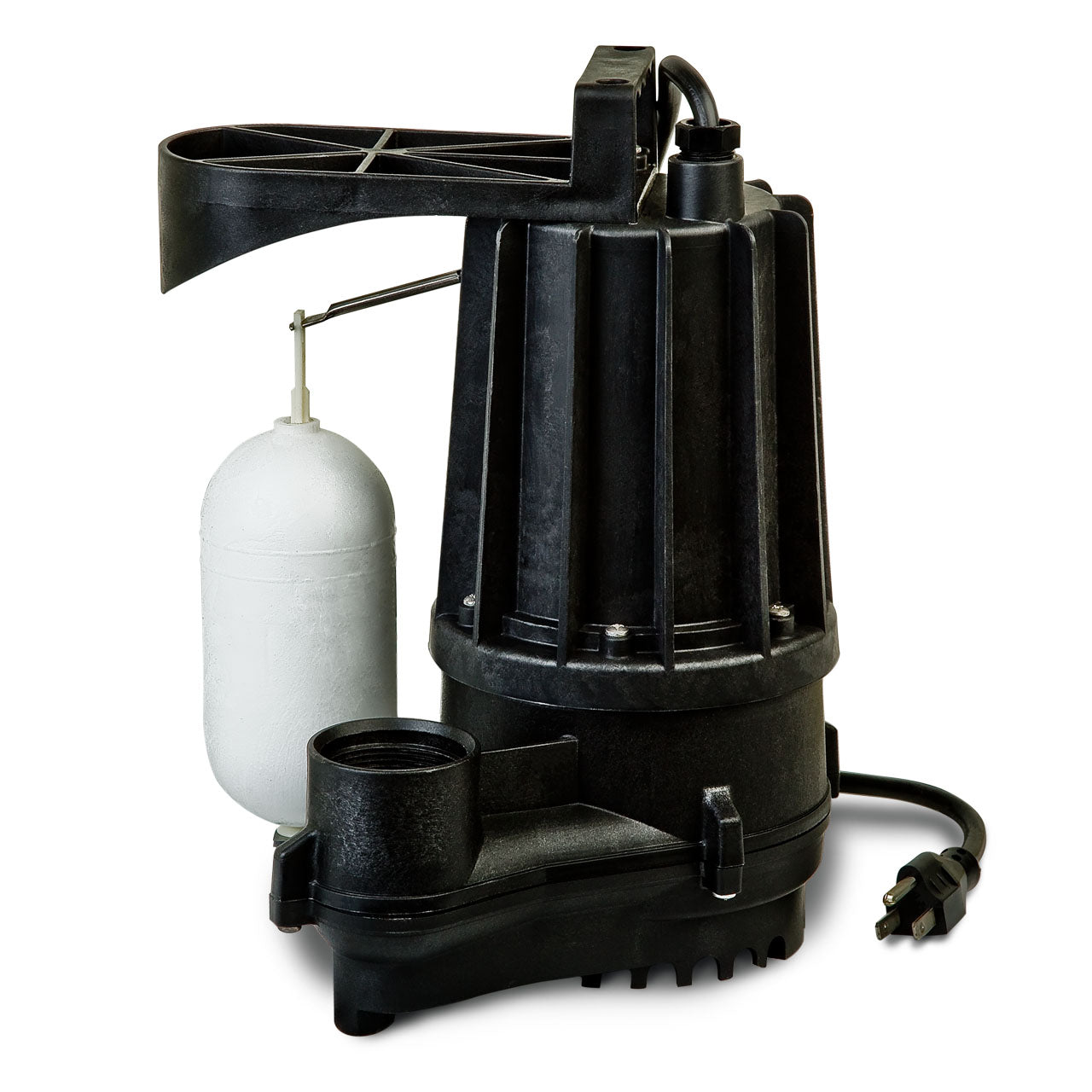

Zoeller Model M76 Dewatering Pump Description
This "Aqua-Mate" model submersible pump is designed for use in residential or commercial dewatering applications and can be used to transfer groundwater or effluent. The inner stainless steel can is designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance! This attention to detail is an inherent feature of every pump, making it one of the most reliable in the industry.
Zoeller Model M76 Dewatering Pump Features and Benefits
- Thermal Overload Protection
- Non-Corrosive, Engineered Plastic Motor Housing, Pump Housing and Base
- No Steel Sheet Metal Parts to Rust or Corrode
- All Stainless Steel Screws, Switch Arm and Lower Motor Housing
- 2-Pole, Float-Operated Mechanical Switch
- Solid Buoyant, Polypropylene Float
- Maximum Temperature for Dewatering 110°F (43°C)
- Passes 3/8" (10 mm) Spherical Solids
- 1-1/2” NPT Discharge
- Completely Submersible and Hermetically Sealed
- 1 Year Limited Warranty
Specifications
Specifications
Zoeller 76-0001 Dewatering Pump Specifications
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 0.5 HP
- AMP DRAW (full load): 5.0
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3400 RPM
- MAXIMUM HEAD: 18'
- MAXIMUM CAPACITY: 38 GPM
- SWITCH TYPE: Automatic
- SWITCH 'ON' LEVEL: 8-1/2" (21.6 cm)
- SWITCH 'OFF' LEVEL: 3-5/8" (9.2 cm)
- DISCHARGE PIPE SIZE: 1-1/2" NPT
- MAXIMUM SOLIDS HANDLING: 3/8" Spherical Solid
- IMPELLER TYPE: Engineered Plastic, Non-Clogging Vortex
- CORD LENGTH: 9'
- BODY CONSTRUCTION: Engineered Plastic
- MAXIMUM OPERATING TEMPERATURE: 110°F (43C)
Zoeller Model M76 Performance Curve
