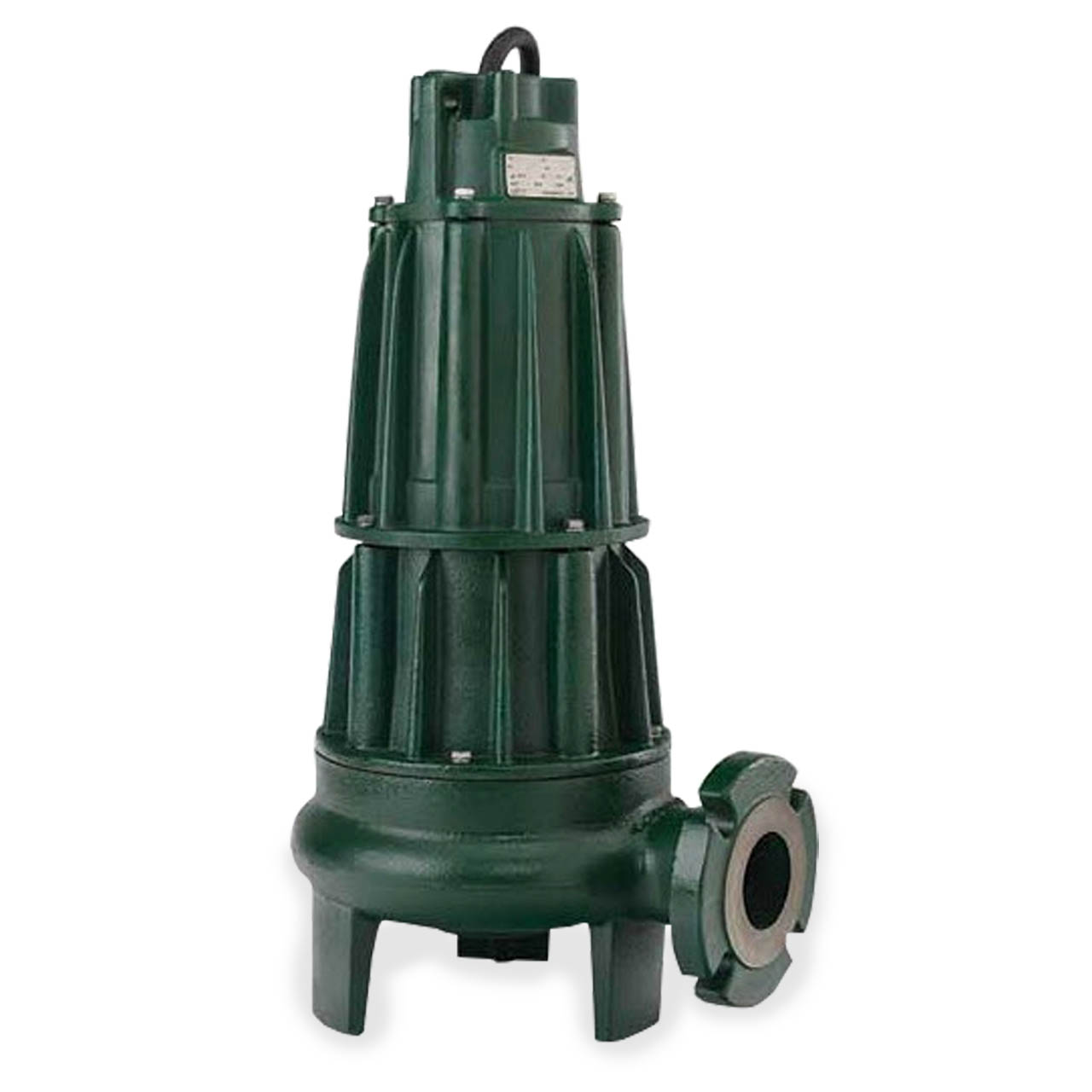

Zoeller J661 Series Sewage & Dewatering Pump Description

The "Sewage-Waste" series of submersible pumps is designed for use in commercial dewatering and wastewater applications and can be used to transfer wastewater or unscreened raw sewage. The semi-open reversing impeller design reduces the risk of clogging and allows each pump to pass a 2½" (63mm) spherical solid. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion, and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance! This attention to detail is an inherent feature in every pump of this series, making it one of the most reliable in the industry.

Zoeller J661 Series Sewage & Dewatering Pump Features and Benefits

• Class 30 Cast Iron Construction
• All Units are Double Seal for Extra Motor Protection
• Corrosion Resistant Powder Coated Epoxy Finish
• Stainless Steel Screws, Washers, Tag and Seal Assembly
• Oil Filled, Hermetically Sealed Motor with Heavy Duty Finned Motor Housing for Added Heat Dissipation
• Continuous Duty Operation in Submerged Conditions
• Maximum Temperature for Sewage or Dewatering: 104°F (40°C) with 1.0 Service Factor
• 416 Stainless Steel Motor Shaft
• Stainless Steel Fitted Tandem Shaft Seals, Carbon Ceramic Seal Faces
• 3” Horizontal Flanged Discharge
• Control Panels with Overload Protection Available
• Non-Automatic for Variable Level Control Systems

• VOLTAGE: 3ø, 200V, 60Hz
• HORSEPOWER: 7.5 HP
• AMP DRAW (full load): 25.3
• MOTOR TYPE: Three Phase
• RPM: 1750
• MAXIMUM HEAD: 65'
• MAXIMUM CAPACITY: 600 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 4" Horizontal Flange Discharge
• MAXIMUM SOLIDS HANDLING SIZE: 2-1/2" Spherical Solid
• IMPELLER TYPE: Ductile Iron, Semi-Open
• CORD LENGTH: 75' Type UL Listed, 3-Wire Cord
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 104°F (40C)
• DUTY RATING: Continuous Duty

Zoeller Model J661 Performance Curve
