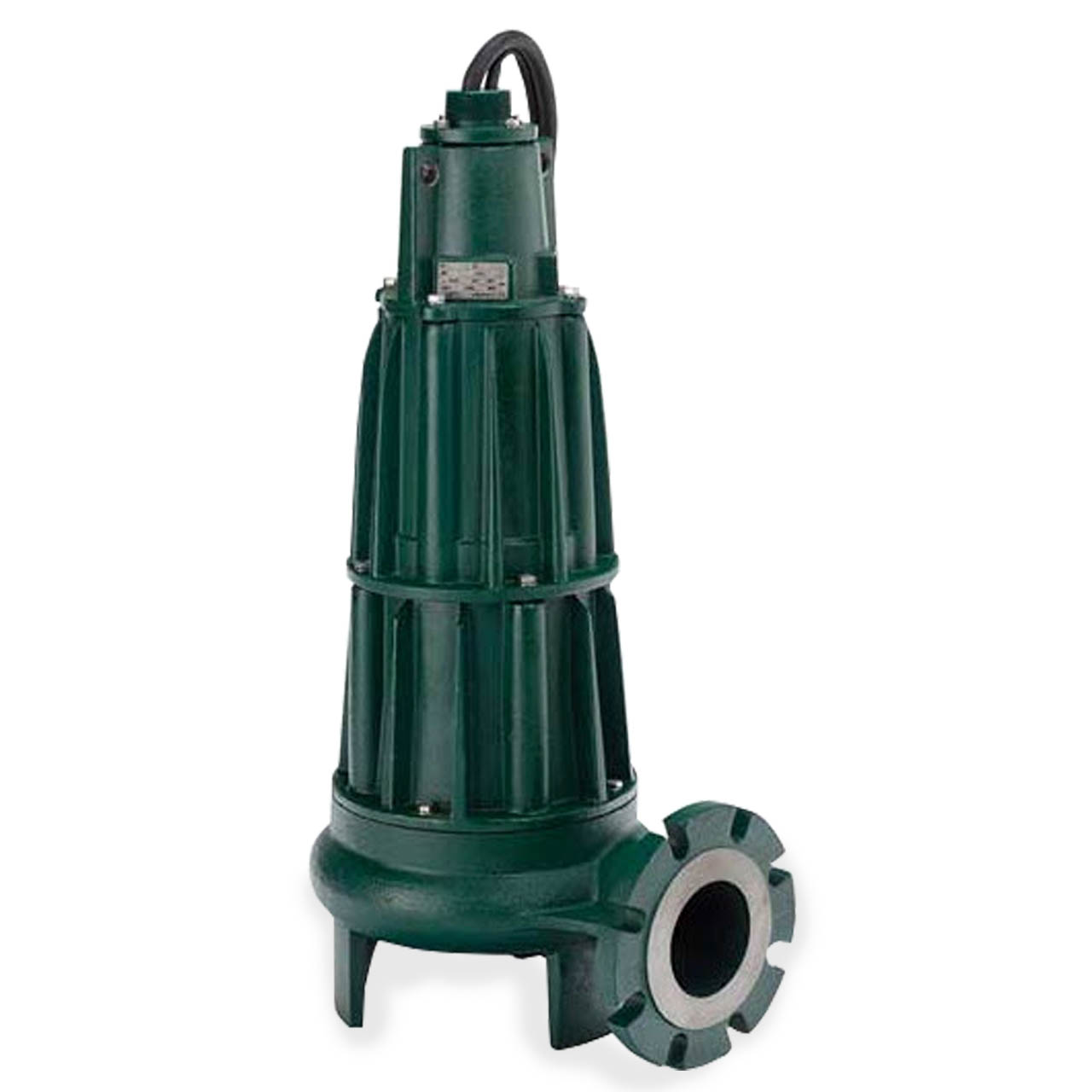

Zoeller 631-0023 Model EX631 Explosion Proof Sewage Pump 2.0 HP 230V 1PH 25' Cord 4" Horizontal Discharge
Zoeller 631-0023 Model EX631 Explosion Proof Sewage Pump 2.0 HP 230V 1PH 25' Cord 4" Horizontal Discharge
SKU : ZLR631-0023
In Stock Quantity:0
:
Brand
:
Regular price
$6,994.40 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Zoeller Model EX631 Submersible Pump Description
This series of submersible pumps is designed for use in residential or commercial wastewater applications in Class I, Division 1, Group C and D environments. Each pump is FM/CSA approved and features innovative motor and electrical enclosures that are designed to reduce the risk of vapor ignition both inside and outside the pump. Should vapors inside the electrical enclosures become ignited, the enclosuresare engineered to contain the event and prevent escalation. Each pump is constructed of hardware that will allow it to operate safely and efficiently in extreme conditions. As with every Zoeller pump, each one is 100% factory tested to ensure quality and reliability for years of trouble free performance! This attention to detail is an inherent feature of every pump in this series, making it one of the most reliable in the industry.
Zoeller Model EX631 Submersible Pump Features and Benefits
- Class 30 Cast Iron Construction
- All Units are Double Seal for Extra Motor Protection
- Corrosion-Resistant, Powder Coated Epoxy Finish
- Stainless Steel Screws, Washers, Tags and Seal Assembly
- Explosion Proof Motor - 1750 RPM, Hermetically Sealed and Oil-Filled for Added Heat Dissipation
- Thermal Sensor
- Maximum Temperature for Sewage or Dewatering - 104°F (40°C) with 1.2 Service Factor
- 416 Stainless Steel Motor Shaft
- 4” Horizontal Flanged Discharge
- Intrinsically Safe Control Panels Available (Simplex Panel 10-1565 and Duplex Panel 10-1593)
- Single Phase Pump Requires External Starting Capacity and Relay Circuits
- Start Cap Pack 10-0915 Required
Specifications
Specifications
Zoeller 631-0023 Explosion Proof Sewage Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 2.0 HP
- AMP DRAW (full load): 14.5
- MOTOR TYPE: Capacitor Start /Capacitor Run
- RPM: 1750
- MAXIMUM HEAD: 34'
- MAXIMUM CAPACITY: 385 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 4" Horizontal Flanged
- MAXIMUM SOLIDS HANDLING: 2-1/2" Spherical Solid
- IMPELLER TYPE: Ductile Iron, Non-Clogging Semi-Open
- CORD LENGTH: 25' Type UL listed Power and Sensor Cord
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 104°F (40C)
- DUTY RATING: Continuous
- HAZARDOUS DUTY: Class I, Division 1, Groups C & D and Class Zone 1, Groups IIA & IIB Construction
- CONTROL BOX REQUIRED
Zoeller Model EX631 Performance Curve
