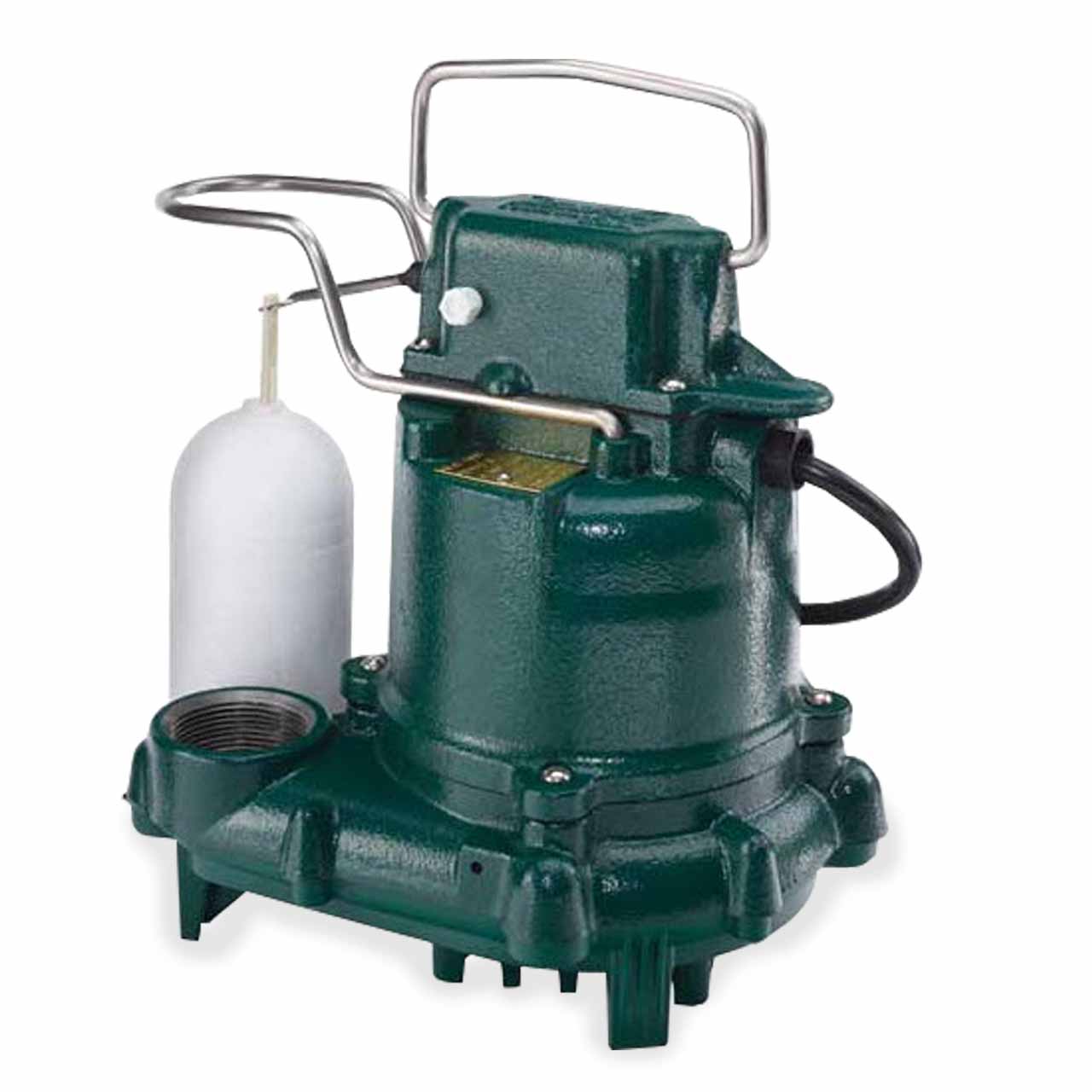

Zoeller Model D53 Sump Pump Description

The Model D53 is designed to remove unwanted groundwater in basement sump applications. The professional-grade 3/10 HP Model D53 is the industry standard when it comes to primary sump pumps. Know as the "Mighty-Mate" D53, it is a fully automatic float-operated sump pump. The white polypropylene float is solid so it cannot become waterlogged. This ensures that it is always buoyant and able to turn the pump on when necessary.

The Model 53's switch case, motor housing and pump housing are each constructed of cast iron. The corrosion resistant engineered plastic vortex impeller has a smooth surface allowing water and solids to pass freely through the pump. The pump's identification tag, float guard, handle, switch arm and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 53 is able to withstand the most demanding basement sump applications.

Zoeller Model D53 Sump Pump Features and Benefits

• Oil-Filled Motor and Cast Iron Motor Housing for Optimal Heat Dissipation which Prevents the Pump from Overheating
• Automatic Pump with a Time-Tested, Reliable, Preset, Built-In Snap Action Switch that Makes for Easy Installation
• Corrosion Resistant Engineered Plastic Vortex Impeller to Allow Free Passage of Solids which Prevents Clogging and Lessens Downtime
• Stainless Steel Float Guard that Prevents Material or Debris from Collecting on the Float Ensuring Proper Operation Every Time
• Solid, Buoyant, Polypropylene Float to Eliminate the Possibility of Water Infiltration Allowing the Float to Remain Buoyant and Functional at all Times
• Powder-Coated Epoxy Finish Provides Corrosion-Resistance and Extends the Life of the Pump in Harsh Environments
• Stainless Steel Screws, Switch Arm, Guard, Handle and Hardware to Prevent Rust and Corrosion Over the Life of the Pump
• 100% Factory Tested - Every Pump is Submerged in Water and Tested at the Factory to Ensure that it Performs as Expected when you Receive it.
• Comes with a 3-Year Limited Warranty giving you Protection Over Your Investment and Peace of Mind you Expect in a Quality Product

Zoeller 53-0003 Sump Pump Specifications

• VOLTAGE: 1ø, 230V, 60Hz
• HORSEPOWER: 0.33 HP
• AMP DRAW (full load): 4.8
• MOTOR TYPE: Shaded Pole
• RPM: 1550 RPM
• MAXIMUM HEAD: 19'
• MAXIMUM CAPACITY: 43 GPM
• SWITCH TYPE: Automatic
• SWITCH 'ON' LEVEL: 7-1/4" (18.4 cm)
• SWITCH 'OFF' LEVEL: 3" (7.6 cm)
• DISCHARGE PIPE SIZE: 1-1/2" NPT
• MAXIMUM SOLIDS HANDLING: 1/2" Spherical Solid
• IMPELLER TYPE: Cast Iron, Non-Clogging Vortex
• CORD LENGTH: 9'
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM OPERATING TEMPERATURE: 130°F (54C)

Zoeller Model D53 Sump Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Zoeller Model 53 Sump Pump Product Resources

Download Zoeller Model 53 Sump Pump Catalog Sheet FM2958

Download Zoeller Model 50 Sump Pump Technical Data Sheet: Mighty-Mate Series FM2778

Download Zoeller Model 53 and 57 Installation Instructions FM2676

Download Zoeller Model 53 Sump Pump Parts List FM0472

Download Zoeller Effluent Duplex Specifications FM05030

Download Zoeller Effluent Simplex Specifications FM0531

Download Zoeller Long Cycle Kit FM0359
