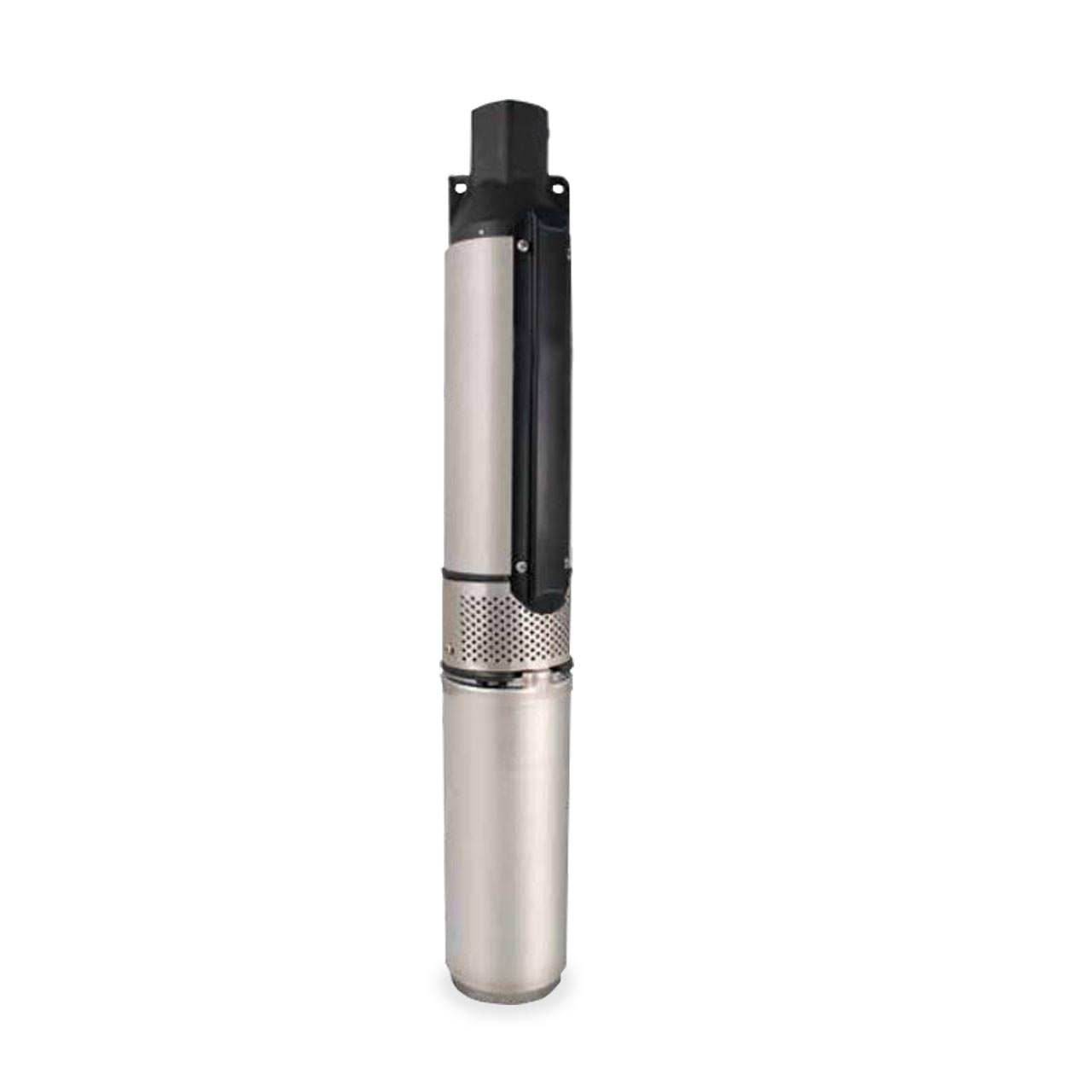

Zoeller 451-0006 4" Submersible Potable Water Turbine Pump 11 GPM 0.75 HP 230V 1PH 3-Wire

Zoeller 451-0006 4" Submersible Potable Water Turbine Pump 11 GPM 0.75 HP 230V 1PH 3-Wire

Usually ships within 3 weeks

SKU : ZLR451-0006

In Stock Quantity:0

:
Brand : Zoeller
$1,118.25 USD
Shipping calculated at checkout.

Description


Zoeller 451 Series Submersible Potable Water Turbine Pump

Stainless Steel/Cast Iron "A" Series 4" Submersible Pumps.

Zoeller 451 Series Submersible Potable Water Turbine Pump Features and Benefits

  • Stainless Steel Pump Shell, Motor Shell and Drive Shaft
  • Quiet and Economical Operation
  • Submersible Pumps Rated by the Number of Gallons Per Minute to the Well Head from Various Water Level Depths. Models Rated at 5 & 7 GPM are for Small Homes, Cottages and Light Water usage Demands, Whereas the 11 & 19 GPM Models are for the Average Residential Size Home and Family.
  • Nationally Known Franklin 1/2 thru 1 HP Motors used on Zoeller Submersible Pumps are Designed to Meet NEMA Standards. All Models are Available with Either 2 or 3 Wire Connection Plus Ground Wire.
  • 1 1/4" Cast Iron Discharge Head Prevents Cross Threading and Cracking in the Well
  • Corrosion-Resistant 304 Stainless Steel Pump Shell
  • NEMA-Faced Mounting Ring for Long Life and Protection from Motor Torque
  • Stainless Steel Hex Drive Shaft with One-Piece Stainless Steel Motor to Shaft Coupling
  • Franklin Electric® NEMA standard 2 or 3 Wire Water-Cooled Motor with Ground Wire (not shown)
  • Includes Internal Positive Sealing Check Valve
  • Non-Fusing and Corrosion-Resistant Impellers, Diffusers and Inlet Screen Molded of Noryl® Resin
  • Noryl® is a Registered Trademark of General Electric Company
  • Control Box Required for 3-Wire Models. Quick-Disconnect Control Box Features Replaceable Snap Out Cover and Keeps all Components Above Ground for Easy Access and Repair. Control Panel not Required for 2-Wire Models
  • For use in Potable Clean Water Systems Only

Specifications

Zoeller 451 Series Submersible Potable Water Turbine Pump Specifications

  • VOLTAGE: 1ø, 3-Wire, 230V, 60Hz
  • HORSEPOWER: 0.75 HP
  • MAX HEAD: 500'
  • MAX FLOW RATE: 15 GPM
  • DISCHARGE SIZE: 1-1/4"
  • IMPELLER TYPE: Non-Fusing, Corrosion-Resistant
  • BODY CONSTRUCTION: Stainless Steel

Zoeller 451 Series Submersible Potable Water Turbine 11 GPM Pump Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Zoeller Submersible Potable Water Turbine Product Resources


Download Zoeller 450, 451 and 452 Series Catalog Sheet

Download Zoeller 450, 451 and 452 Series Installation Instructions

Download Zoeller Potable Water Systems Catalog
