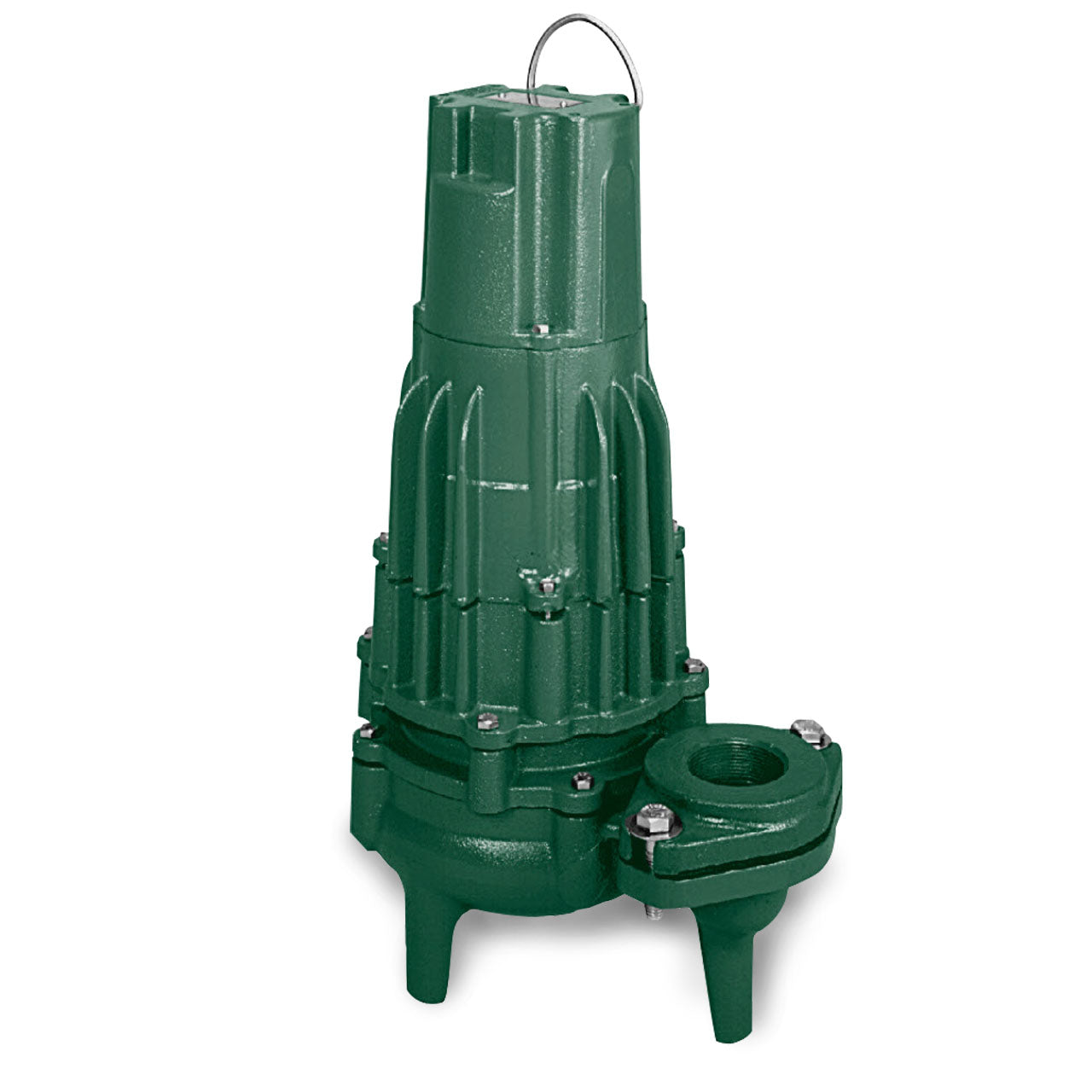

Zoeller 4290-0005 Model F4290 "Agricultural" High Head Submersible Pump 1 HP 230V 3PH Nonautomatic
Zoeller 4290-0005 Model F4290 "Agricultural" High Head Submersible Pump 1 HP 230V 3PH Nonautomatic
SKU : ZLRF4290-0005
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Zoeller Model 4290 Agricultural Submersible Pump Description
The High Head "Agricultural" series of submersible sewage pumps is designed for use in agricultural applications, lagoon recirculation systems, and sump pit systems. The innovative vortex impeller design reduces the risk of clogging and provides great solid passing capability. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion, and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance! This attention to detail is an inherent feature in every pump of this series, making it one of the most reliable in the industry.
Zoeller Model F4290 Agricultural Submersible Pump Features and Benefits
- Passes 1-1/2" (38 mm) Spherical Solids
- Available With 2" or 3" NPT Vertical Flange Discharge, Specify when Ordering
- Durable Cast Iron Construction With Stainless Steel Screws and Handle
- Corrosion Resistant Powder Coated Epoxy Finish
- Oil-Filled, Hermetically Sealed, Thermal Overload Protection with Automatic Reset
- Maximum operating Temperature 130° F (54°C)
- Shaft Seals - Silicon Carbide/Silicon Carbide Lower and Carbon/Silicon Carbide Upper Seals
- Neoprene Gaskets and Seals
- Double Shaft Seals Provides Extra Protection for Motor
- Large Clearances to Prevent Stoppage from Build up of Solids
- Pump Flotation Devices Available for Lagoon Installations
Specifications
Specifications
Zoeller Model F4290 Agricultural Submersible Pump Specifications
- VOLTAGE: 3ø, 230V, 60Hz
- HORSEPOWER: 1.0 HP
- AMPS: 6.5
- MOTOR TYPE: 3 Phase
- RPM: 3450 RPM
- MAX HEAD: 48'
- MAX FLOW RATE: 142 GPM
- DISCHARGE SIZE: 2" NPT
- SOLIDS HANDLING: 1.5" Spherical Solid
- IMPELLER TYPE: Bronze, Non-Clogging Vortex
- CORD LENGTH: 50'
- CORD TYPE: UL Listed Neoprene
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
Zoeller Models 4290 & 4291 Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model F4290 Product Resources
Download Zoeller Model 4290 Catalog Sheet FM2722
Download Zoeller Model 4290 Technical Sheet FM2812
Download Zoeller Model 4290, 4291 Installation Instructions FM1473
Download Zoeller Model 4290 Parts List FM1488
Download Zoeller Agricultural Pontoon & Accessories Specifications FM1507
