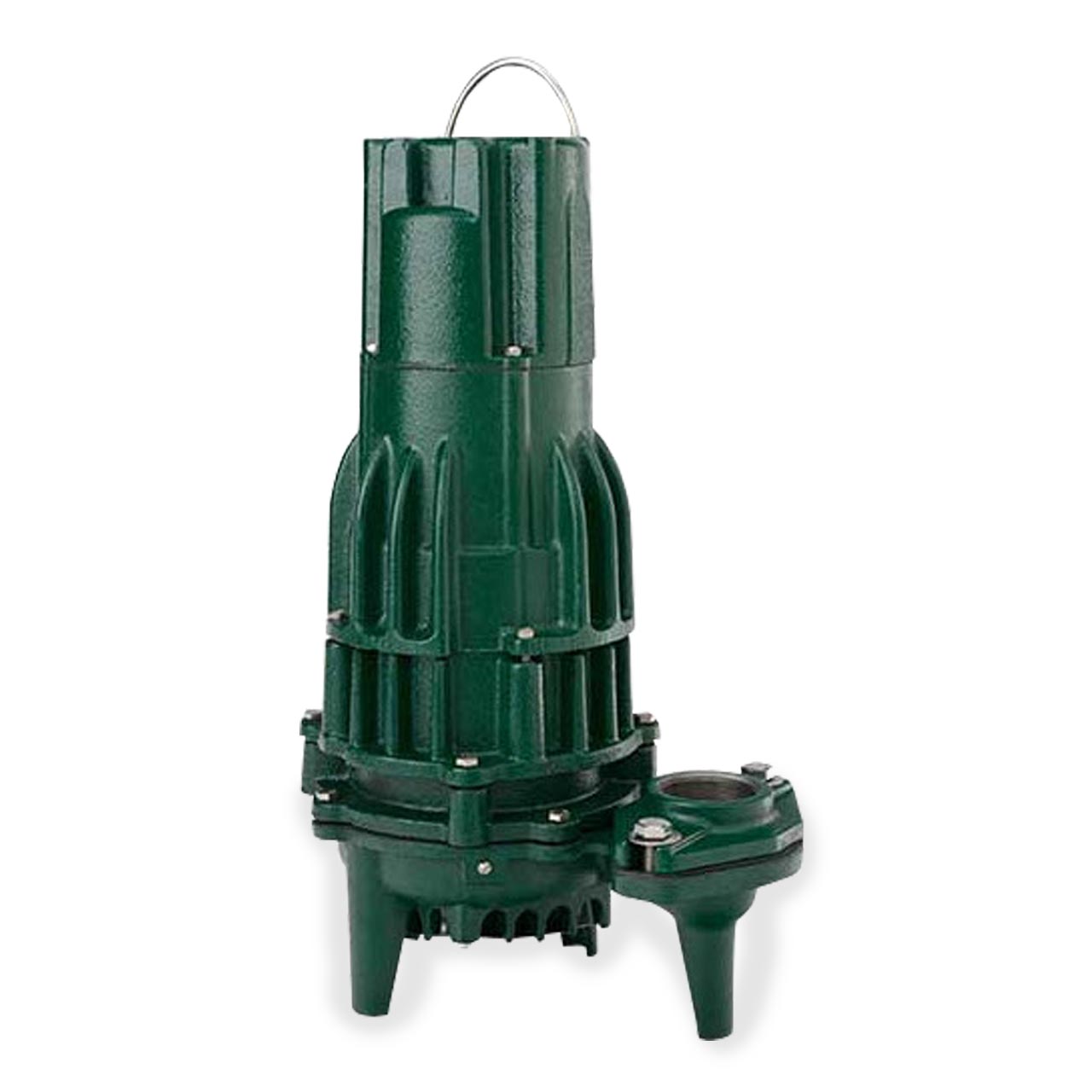

Zoeller 4188-0017 Model E4188 High Head Effluent Double Seal Pump 1.5 HP 230V 1PH 35' Cord Nonautomatic
Zoeller 4188-0017 Model E4188 High Head Effluent Double Seal Pump 1.5 HP 230V 1PH 35' Cord Nonautomatic
SKU : ZLR4188-0017
In Stock Quantity:0
:
Brand
:
Regular price
$2,272.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Zoeller Model E4188 High Head Effluent Pump Description
The Flow-Mate series of submersible pumps is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater or effluent. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion, and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller® pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance!
Zoeller Model E4188 High Head Effluent Pump Features and Benefits
- Non-Clogging Vortex Impeller Design, Bronze Class 88-8-0-4 (180 Series)
- Durable, Cast Iron Construction
- Cast Iron Switch Case, Base, Motor and Pump Housing
- No Sheet Metal Parts to Rust or Corrode
- Stainless Steel Screws, Bolts, Float Rod, Handle, Guard, Arm and Seal Assembly
- Oil Filled, Hermetically Sealed, Automatic Reset Thermal Overload Protection
- Maximum Temperature for Effluent or Dewatering: 130°F (54°C)
- Stainless Steel Carbon and Ceramic Rotary Shaft Seal
- All 180/4180 Series Pump Pass 3/4" (19mm) Spherical Solids
- 1-½” NPT Discharge Standard, Optional 2” NPT FLANGE KIT or 3” NPT FLANGE KIT Available
- Corrosion-Resistant, Powder Coated Epoxy Finish
Specifications
Specifications
Zoeller 4188-0017 High Head Effluent Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 1.5 HP
- AMP DRAW (full load): 14.0
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3450 RPM
- MAXIMUM HEAD: 91'
- MAXIMUM CAPACITY: 145 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 1-1/2" NPT Vertical Discharge
- MAXIMUM SOLIDS HANDLING: 3/4" Spherical Solid
- IMPELLER TYPE: Bronze, Non-Clogging Vortex
- CORD LENGTH: 35' Type UL Listed, 3-Wire Neoprene Cord and Plug
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
Zoeller Model E4188 Performance Curve
