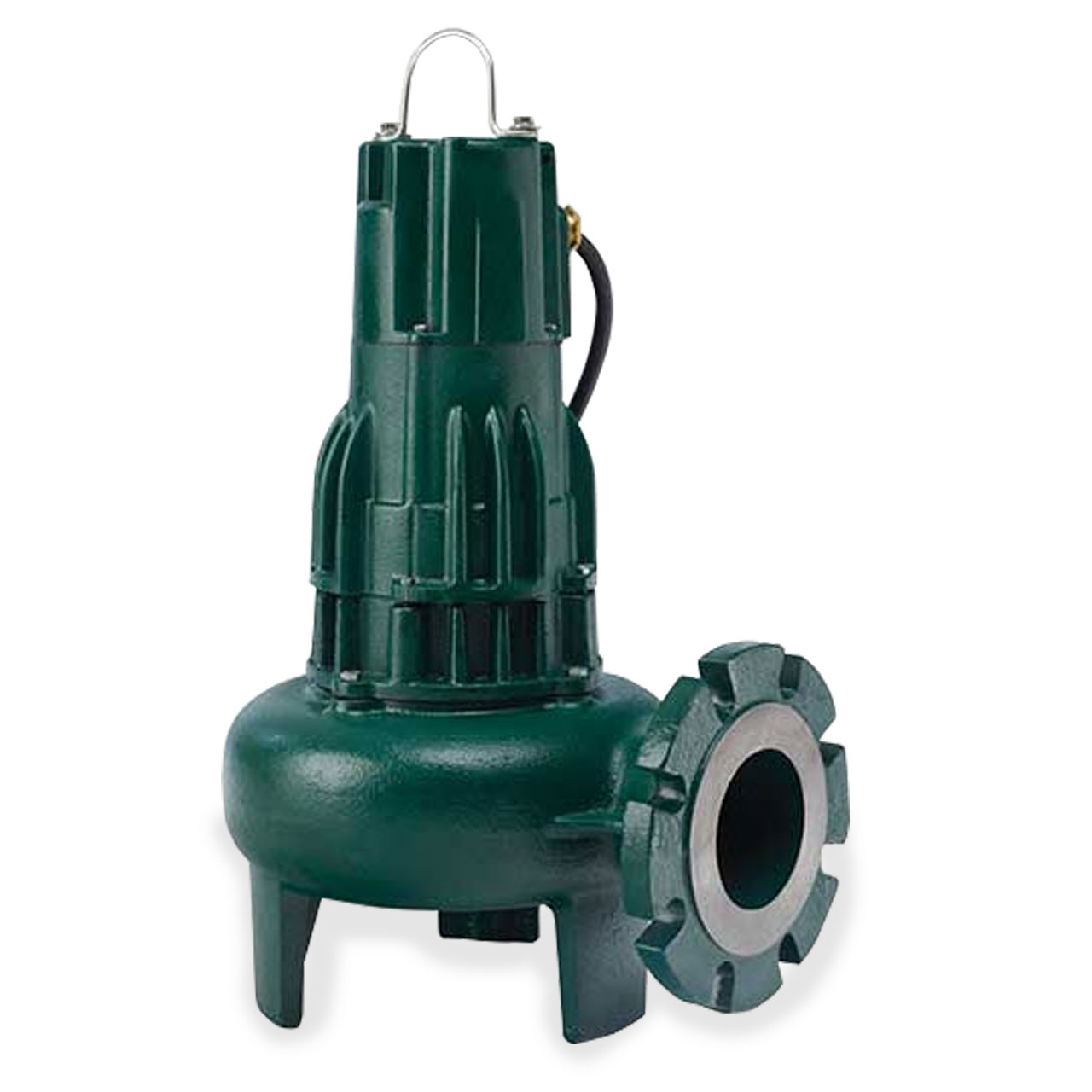

Zoeller 405-0022 Model I405 High Capacity Sewage Dewatering Pump 3.0 HP 200V 1PH 50' Cord Nonautomatic
Zoeller 405-0022 Model I405 High Capacity Sewage Dewatering Pump 3.0 HP 200V 1PH 50' Cord Nonautomatic
SKU : ZLR405-0022
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Zoeller I405 Series Sewage & Dewatering Pump Description
The "Waste-Mate" series of submersible pumps is designed for use in residential or commercial dewatering and wastewater applications and can be used to transfer large volumes of water from parking lots, flooded areas and unscreened raw sewage. The innovative vortex impeller design reduces the risk of clogging and allows each pump to pass 3" (76 mm) spherical solids. Constructed of non-corrodible hardware, these durable cast iron pumps include a powder coated epoxy finish to prevent corrosion. Every pump is designed to provide heat dissipation from the motor for longer life and lower life cycle cost. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance!
Zoeller I405 Series Sewage & Dewatering Pump Features and Benefits
- Cast Iron Casting, Class 25-30 25000# Tensile Strength
- Oil Filled, Hermetically Sealed, Automatic Reset Thermal Overload Protected (1 Ph only) Motor
- Mechanical Shaft Seal - Carbon and Ceramic Rotary Face Seal, with Stainless Steel Wetted Parts
- Stainless Steel Screws, Bolts, Washers and Lifting Bracket
- Maximum Temperature: 130°F (54°C) Standard
- Variable Level Controls Available
- 4” Horizontal Flanged Discharge, Standard ANSI Flange
- Corrosion-Resistant, Powder-Coated Epoxy Finish
- Optional Intermediate Stabilizer for Systems over 15' (5 m) Deep (P/N 39-0013 carbon steel, P/N 39-0014 stainless steel)
Specifications
Specifications
Zoeller Model I405 Sewage & Dewatering Pump Specifications
- VOLTAGE: 1ø, 200V, 60Hz
- HORSEPOWER: 3.0 HP
- AMPS: 20.2
- MOTOR TYPE: Permanent Split Capacitor
- RPM: 1725 RPM
- MAX HEAD: 38'
- MAX FLOW RATE: 361 GPM
- DISCHARGE SIZE: 4" Horizontal ANSI Flange
- SOLIDS HANDLING: 3" Spherical Solid
- IMPELLER TYPE: Cast Iron, Non-Clogging Vortex
- CORD LENGTH: 50'
- CORD TYPE: 1 Ph: UL Listed 3-Wire Neoprene Cord and Plug. 3 Ph: 4-wire with No Plug.
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
Zoeller Model I405 Performance Curve
