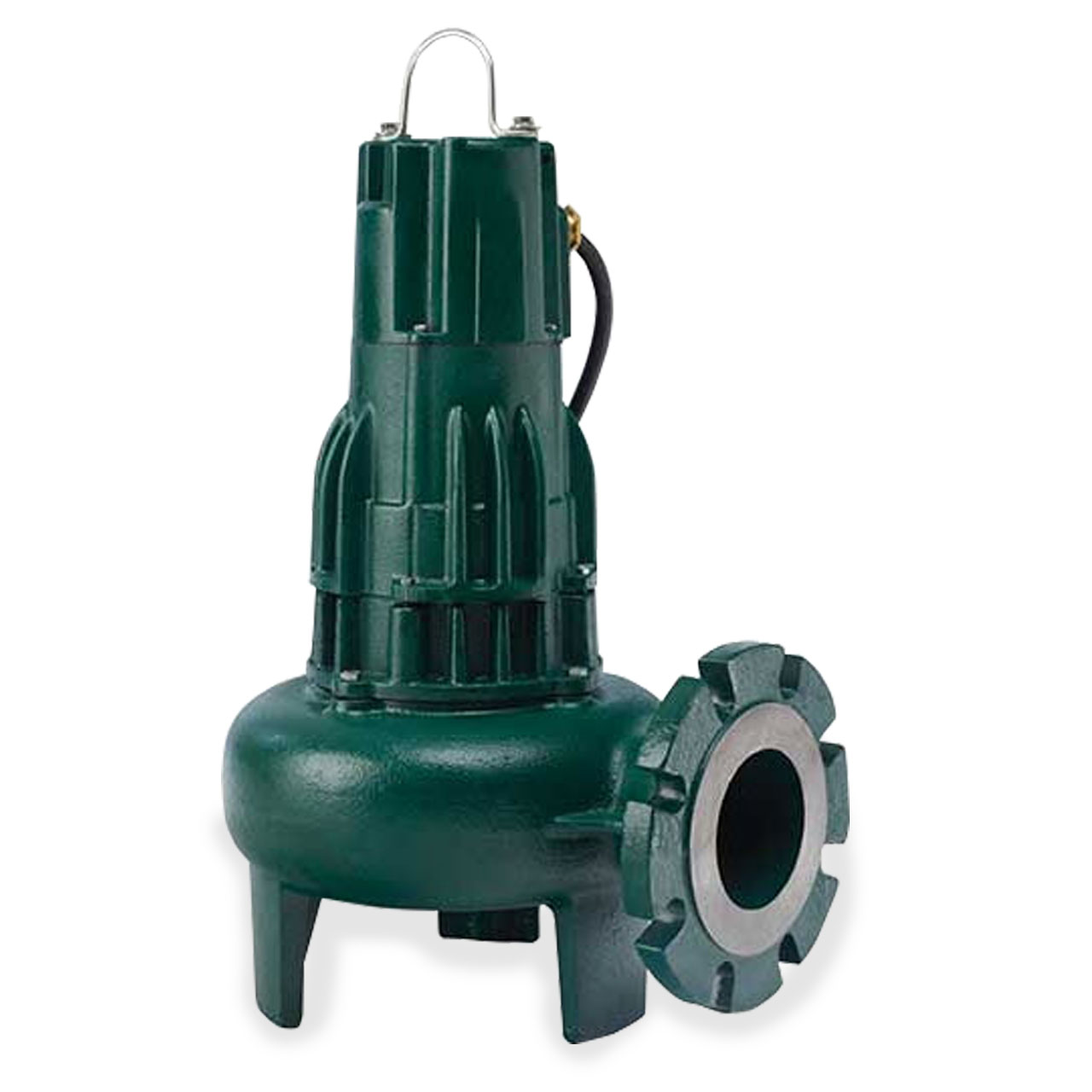

Zoeller 405-0011 Model G405 High Capacity Sewage Dewatering Pump 3.0 HP 460V 3PH 25' Cord Nonautomatic
Zoeller 405-0011 Model G405 High Capacity Sewage Dewatering Pump 3.0 HP 460V 3PH 25' Cord Nonautomatic
SKU : ZLR405-0011
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
DISCONTINUED SEE SUGGESTED REPLACEMENT: Zoeller 4405-0009 Model G4405 High Capacity Sewage Dewatering Double Seal Pump 3.0 HP 460V 3PH 20' Cord Nonautomatic
Zoeller G405 Series Sewage & Dewatering Pump Description
The "Waste-Mate" series of submersible pumps is designed for use in residential or commercial dewatering and wastewater applications and can be used to transfer large volumes of water from parking lots, flooded areas and unscreened raw sewage. The innovative vortex impeller design reduces the risk of clogging and allows each pump to pass 3" (76 mm) spherical solids. Constructed of non-corrodible hardware, these durable cast iron pumps include a powder coated epoxy finish to prevent corrosion. Every pump is designed to provide heat dissipation from the motor for longer life and lower life cycle cost. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance!
Zoeller G405 Series Sewage & Dewatering Pump Features and Benefits
- Cast Iron Casting, Class 25-30 25000# Tensile Strength
- Mechanical Shaft Seal - Carbon and Ceramic Rotary Face Seal, with Stainless Steel Wetted Parts
- Stainless Steel Screws, Bolts, Washers and Lifting Bracket
- Maximum Temperature: 130°F (54°C) Standard
- 4” Horizontal Flanged Discharge, Standard ANSI Flange
- Corrosion-Resistant, Powder-Coated Epoxy Finish
- Optional Intermediate Stabilizer for Systems over 15' (5 m) Deep (P/N 39-0013 carbon steel, P/N 39-0014 stainless steel)
Specifications
Specifications
Zoeller Model G405 Sewage & Dewatering Pump Specifications
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 3.0 HP
- AMPS: 6.1
- MOTOR TYPE: 3 Phase
- RPM: 1725 RPM
- MAX HEAD: 38'
- MAX FLOW RATE: 361 GPM
- DISCHARGE SIZE: 4" Horizontal ANSI Flange
- SOLIDS HANDLING: 3" Spherical Solid
- IMPELLER TYPE: Cast Iron, Non-Clogging Vortex
- CORD LENGTH: 25'
- CORD TYPE: 1 Ph: UL Listed 3-Wire Neoprene Cord and Plug. 3 Ph: 4-wire with No Plug.
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
Zoeller Model G405 Performance Curve
