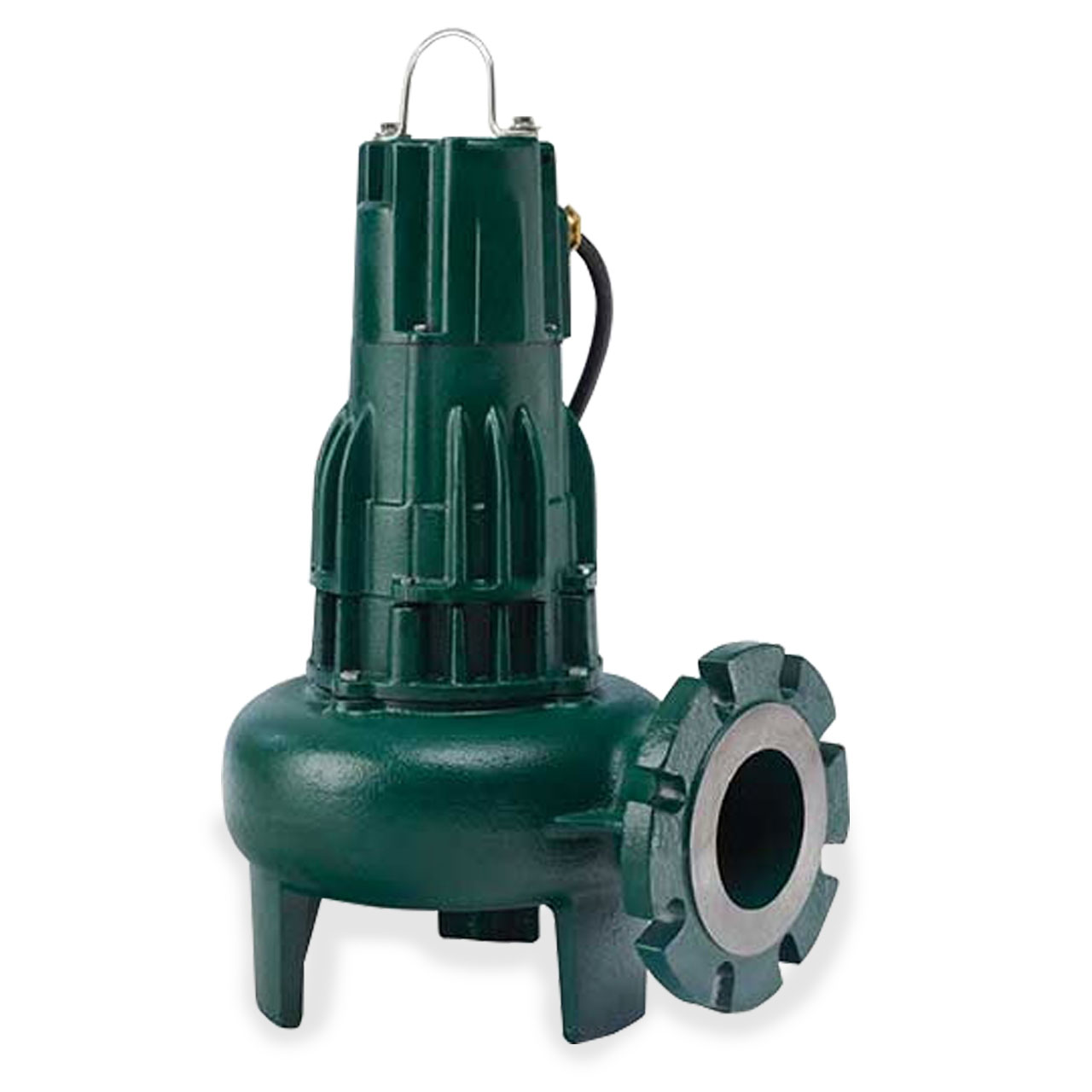

Zoeller WD404 Series Sewage & Dewatering Pump Description

The "Waste-Mate" series of submersible pumps is designed for use in residential or commercial dewatering and wastewater applications and can be used to transfer large volumes of water from parking lots, flooded areas and unscreened raw sewage. The innovative vortex impeller design reduces the risk of clogging and allows each pump to pass 3" (76 mm) spherical solids. Constructed of non-corrodible hardware, these durable cast iron pumps include a powder coated epoxy finish to prevent corrosion. Every pump is designed to provide heat dissipation from the motor for longer life and lower life cycle cost. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance!

Zoeller WD404 Series Sewage & Dewatering Pump Features and Benefits

• Cast Iron Casting, Class 25-30 25000# Tensile Strength
• Oil Filled, Hermetically Sealed, Automatic Reset Thermal Overload Protected (1 Ph only) Motor
• Mechanical Shaft Seal - Carbon and Ceramic Rotary Face Seal, with Stainless Steel Wetted Parts
• Stainless Steel Screws, Bolts, Washers and Lifting Bracket
• Maximum Temperature: 130°F (54°C) Standard
• Variable Level Controls Available
• 4” Horizontal Flanged Discharge, Standard ANSI Flange
• Corrosion-Resistant, Powder-Coated Epoxy Finish
• Optional Intermediate Stabilizer for Systems over 15' (5 m) Deep (P/N 39-0013 carbon steel, P/N 39-0014 stainless steel)

Zoeller Model WD404 Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Zoeller Model 400 Product Resources

Download Zoeller 400 Series Catalog Sheet FM0902

Download Zoeller 400 Series Technical Sheet FM2793

Download Zoeller 400 Series Owner's Manual 404/4404, 405/4405

Download Zoeller Parts List 404 FM1641

Download Zoeller Sewage Specs, Simplex Systems FM0600

Download Zoeller Sewage Specs, Duplex Systems FM0615
