Zoeller 330-0006 Model 330 Lawn Sprinkler Pump 0.75 HP 115V/230V 1PH
Zoeller 330-0006 Model 330 Lawn Sprinkler Pump 0.75 HP 115V/230V 1PH
SKU : ZLR330-0006
In Stock Quantity:0
:
Brand
:
Regular price
$1,040.25 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

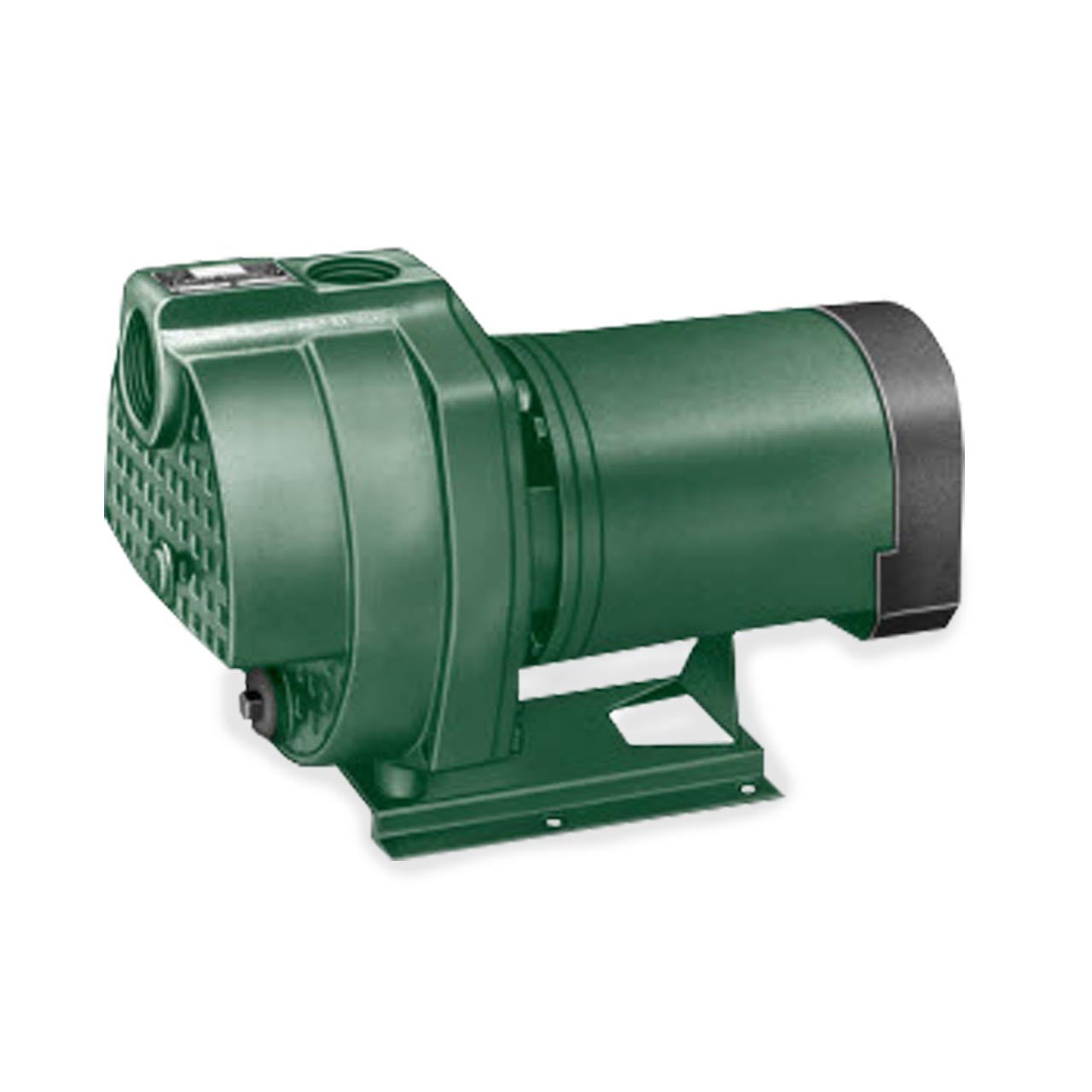

Zoeller Model 330 Lawn Sprinkler Pump Description
Zoeller Pump Company's self-priming Lawn Sprinkler Pump is great addition to the line. The unique design allows for proper lawn sprinkling saturation in areas where high water pressure is not available or inadequate. Quality features include a heavy-duty motor ranging from 3/4 HP to 2 HP, a large volume pump housing that ensures quick and easy self-priming operation, mechanical seal and an air volume control connection. With a versatile and compact design to fit in tight places, these lawn sprinkler pumps can be field-wired. This pump comes preassembled and ready for installation.
Zoeller Model 330 Lawn Sprinkler Pump Features and Benefits
- Cast Iron Pump Housing
- Air Volume Control Connection
- Self-Priming After Initial Fill of Pump Housing
- Models 330, 331, 332 use High Impact Molded Plastic Impeller
- Mechanical Seal
- Top Suction
- Large Reservoir
- 3/4 thru 2 HP, 3450 RPM
- Carbon Ceramic Seal
- 2" Suction and 1-1/2" Discharge
- Mounting Bracket
- 56 Frame, NEMA J, Capacitor Start, Double Ball Bearing Motors Designed for Continuous Operation.
Zoeller Model 330 Lawn Sprinkler Pump Applications
- Irrigation
- Lawn Sprinkler Systems
- Gardens
- General Purpose Water Transfer
Notes: Reserved Powered Design.
For unusual conditions, a reserve safety factor is engineered into the design of every Zoeller pump.
Note: *NE model pumps can be field wired for 115V or 230V applications.
Specifications
Specifications
Zoeller Model 330 Lawn Sprinkler Pump Specifications
- VOLTAGE: 1ø, 115V/230V, 60Hz
- HORSEPOWER: 0.75 HP
- MOTOR TYPE: Capacitor Start
- RPM: 3450 RPM
- MAX HEAD: 98'
- MAX FLOW RATE: 63 GPM
- DISCHARGE SIZE: 1-1/2"
- IMPELLER TYPE: High Impact Molded Plastic
- BODY CONSTRUCTION: Cast Iron
Zoeller Model 330 Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model 330 Lawn Sprinkler Product Resources
Download Zoeller Lawn Sprinkler Pump Catalog Sheet
