Zoeller 3161-0002 Model N3161 High Temperature Submersible Pump 0.5 HP 115V 1PH 20' Cord Nonautomatic
Zoeller 3161-0002 Model N3161 High Temperature Submersible Pump 0.5 HP 115V 1PH 20' Cord Nonautomatic
SKU : ZLR3161-0002
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - 3000 High Temperature

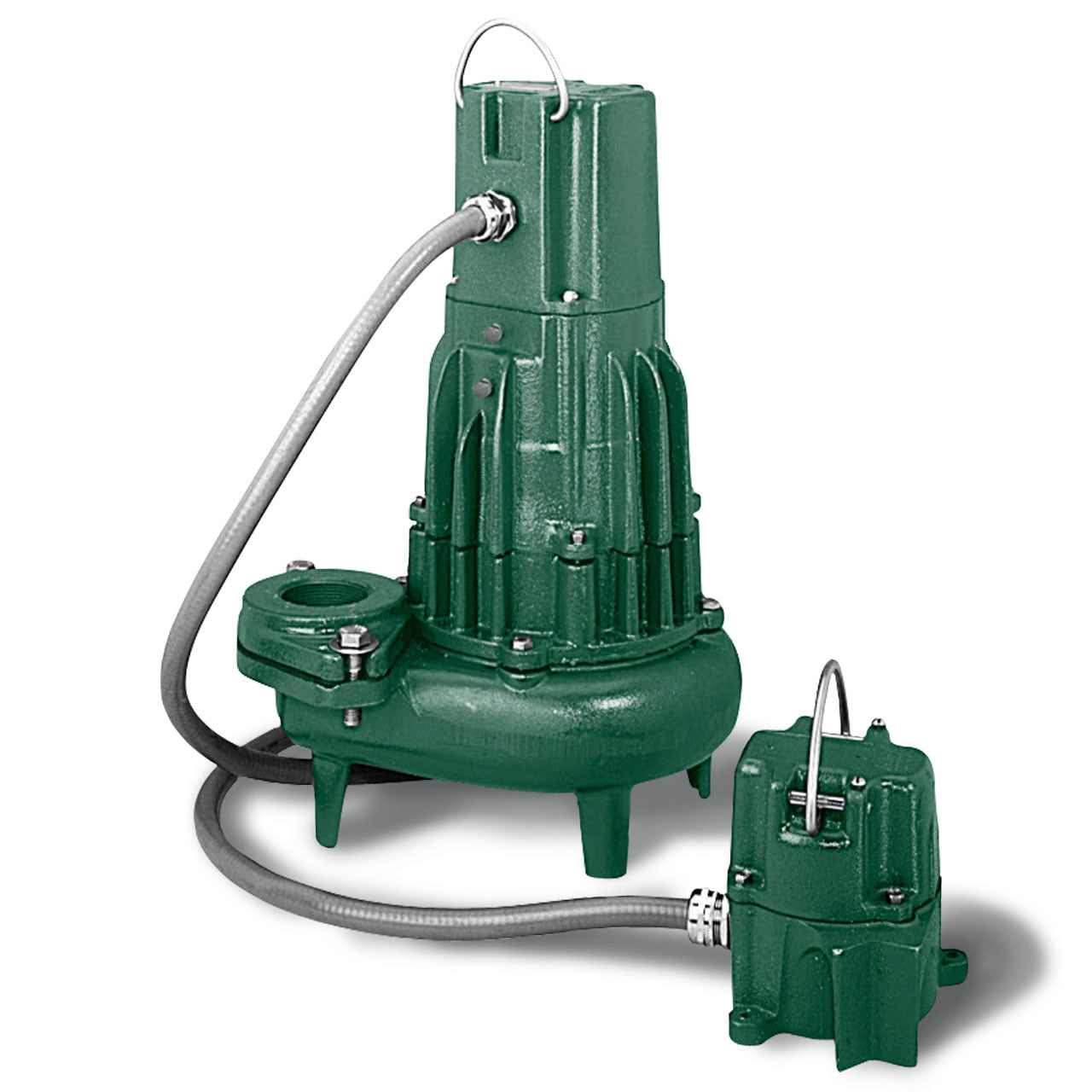

Zoeller Model N3161 High Temperature Submersible Pump Description
This series of submersible pumps is designed for use in residential or commercial dewatering applications and can be used to transfer groundwater and wastewater. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion, and are designed to meet specifications with assurance by using high temperature parts rated for intermittent 200° F (93° C) contact, ensuring a long service life. As with every Zoeller® pump, each one is 100% factory tested to ensure quality and reliability for years of trouble-free performance! This attention to detail is an inherent feature of every model in this pump series, making it one of the most reliable in the industry.
Zoeller Model N3161 High Temperature Submersible Pump Features and Benefits
- A High Temperature Submersible Pump Series with Electrical Components Meeting the National Electrical Code Requirements for 200° F (93°C) Service
- Conduit Length is 6 Feet (1.8 m) for Nonautomatic Models
- High Temperature Thermal Overload Protected
- All Control Components in Contact with Water are High Temperature Rated
- All Models have Stainless Steel Screws, Guards, Handles and Control Arm and Seal Assemblies
- Float Operated Mechanical Switch Box which is Mounted on the Discharge Pipe Above the Operating Level (switch box is not intended to come in continuous contact with 200° F [93°C] water)
- Corrosion-Resistant, Powder Coated Epoxy Finish
Specifications
Specifications
Zoeller Model N3161 High Temperature Submersible Pump Specifications
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 0.5 HP
- AMPS: 15.5
- RPM: 1725 RPM
- MAX HEAD: 51'
- MAX FLOW RATE: 105 GPM
- SWITCH 'ON' LEVEL: Varies"
- SWITCH 'OFF' LEVEL: Varies"
- DISCHARGE SIZE: 1 1/2" Standard, 2" NPT or 3" NPT Available
- SOLIDS HANDLING: 3/4"
- IMPELLER TYPE: Cast Iron, Non-Clogging Vortex
- CORD LENGTH: 20'
- CORD TYPE: 16-3 SOOW cord
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 200°F (93C)
Zoeller Model N3161 Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model N3161 High Temperature 3000 Series Product Resources
Download Zoeller 3000 Series Catalog Sheet FM0806
Download Zoeller 3000 Series Technical Sheet FM2811
Download Zoeller 3000 Series Installation Instructions FM0807
Download Zoeller Model 3161 Parts List FM1415
