Zoeller 3098-0004 Model E3098 High Temperature Submersible Pump 0.5 HP 230V 1PH 15' Cord Nonautomatic
Zoeller 3098-0004 Model E3098 High Temperature Submersible Pump 0.5 HP 230V 1PH 15' Cord Nonautomatic
SKU : ZLR3098-0004
In Stock Quantity:0
:
Brand
:
Regular price
$1,086.75 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

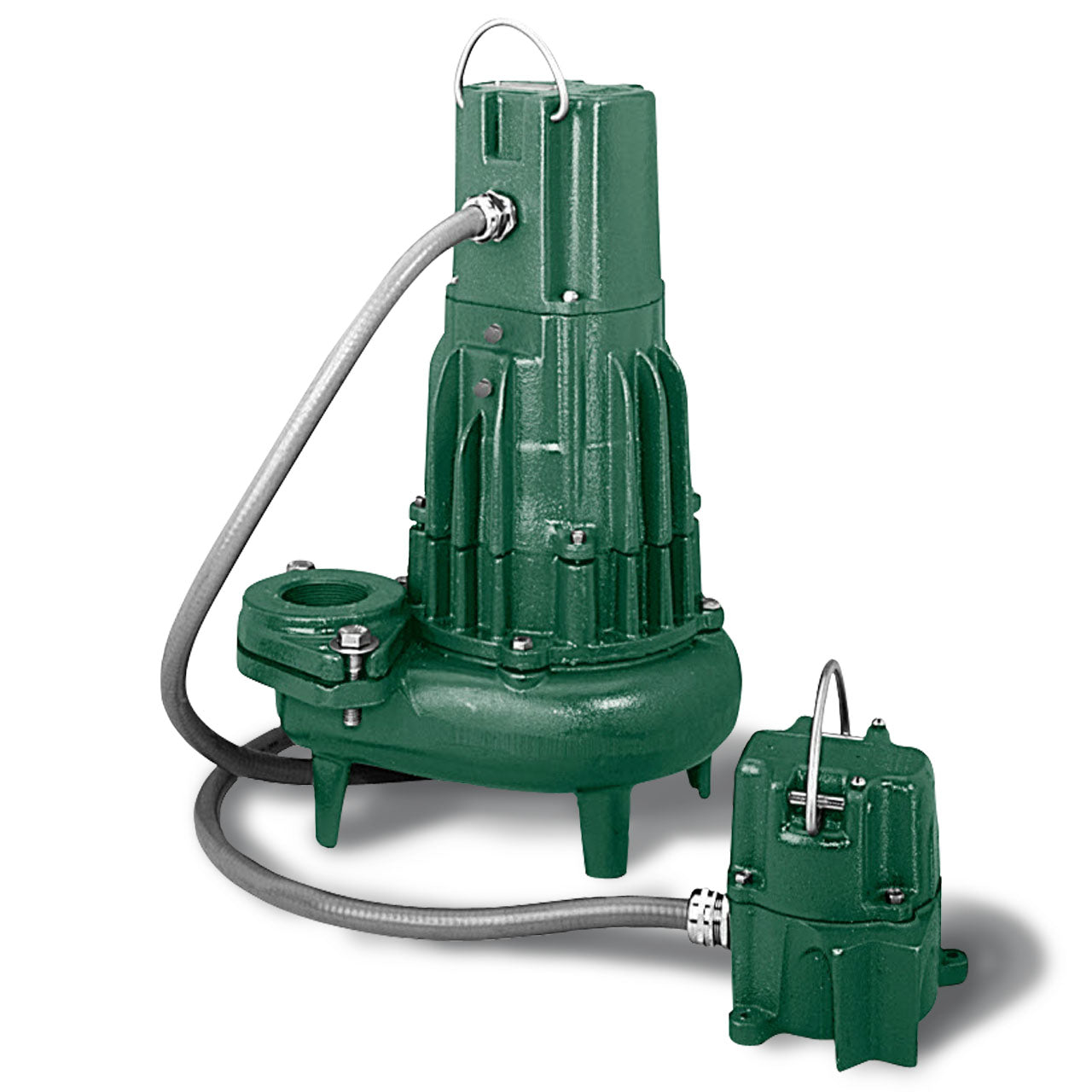

Zoeller Model E3098 High Temperature Submersible Pump Description
This series of submersible pumps is designed for use in residential or commercial dewatering applications and can be used to transfer groundwater and wastewater. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion, and are designed to meet specifications with assurance by using high temperature parts rated for intermittent 200° F (93° C) contact, ensuring a long service life. As with every Zoeller® pump, each one is 100% factory tested to ensure quality and reliability for years of trouble-free performance! This attention to detail is an inherent feature of every model in this pump series, making it one of the most reliable in the industry.
Zoeller Model E3098 High Temperature Submersible Pump Features and Benefits
- A HighTemperature Submersible Pump Series with Electrical Components Meeting the National Electrical Code Requirements for 200° F (93°C) Service
- Conduit Length is 6 Feet (1.8 m) for Nonautomatic Models
- High Temperature Thermal Overload Protected
- All Control Components in Contact with Water are High Temperature Rated
- All Models have Stainless Steel Screws, Guards, Handles and Control Arm and Seal Assemblies
- Float Operated Mechanical Switch Box Which is Mounted on the Discharge Pipe Above the Operating Level (switch box is not intended to come in continuous contact with 200° F [93°C] water)
- Corrosion-Resistant, Powder Coated Epoxy Finish
Specifications
Specifications
Zoeller Model E3098 High Temperature Submersible Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 0.5 HP
- AMPS: 4.7
- RPM: 1725 RPM
- MAX HEAD: 24'
- MAX FLOW RATE: 65 GPM
- SWITCH 'ON' LEVEL: Varies"
- SWITCH 'OFF' LEVEL: Varies"
- DISCHARGE SIZE: 1 1/2"
- SOLIDS HANDLING: 0.5"
- IMPELLER TYPE: Cast Iron, Non-Clogging Vortex
- CORD LENGTH: 15'
- CORD TYPE: 16-3 SOOW cord
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 200°F (93C)
Zoeller Model E3098 Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model E3098 High Temperature 3000 Series Product Resources
Download Zoeller 3000 Series Catalog Sheet FM0806
Download Zoeller 3000 Series Technical Sheet FM2811
Download Zoeller 3000 Series Installation Instructions FM0807
