Zoeller 3098-0003 Model D3098 High Temperature Submersible Pump 0.5 HP 230V 1PH 15' Cord Automatic
Zoeller 3098-0003 Model D3098 High Temperature Submersible Pump 0.5 HP 230V 1PH 15' Cord Automatic
SKU : ZLR3098-0003
In Stock Quantity:0
:
Brand
:
Regular price
$1,203.75 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

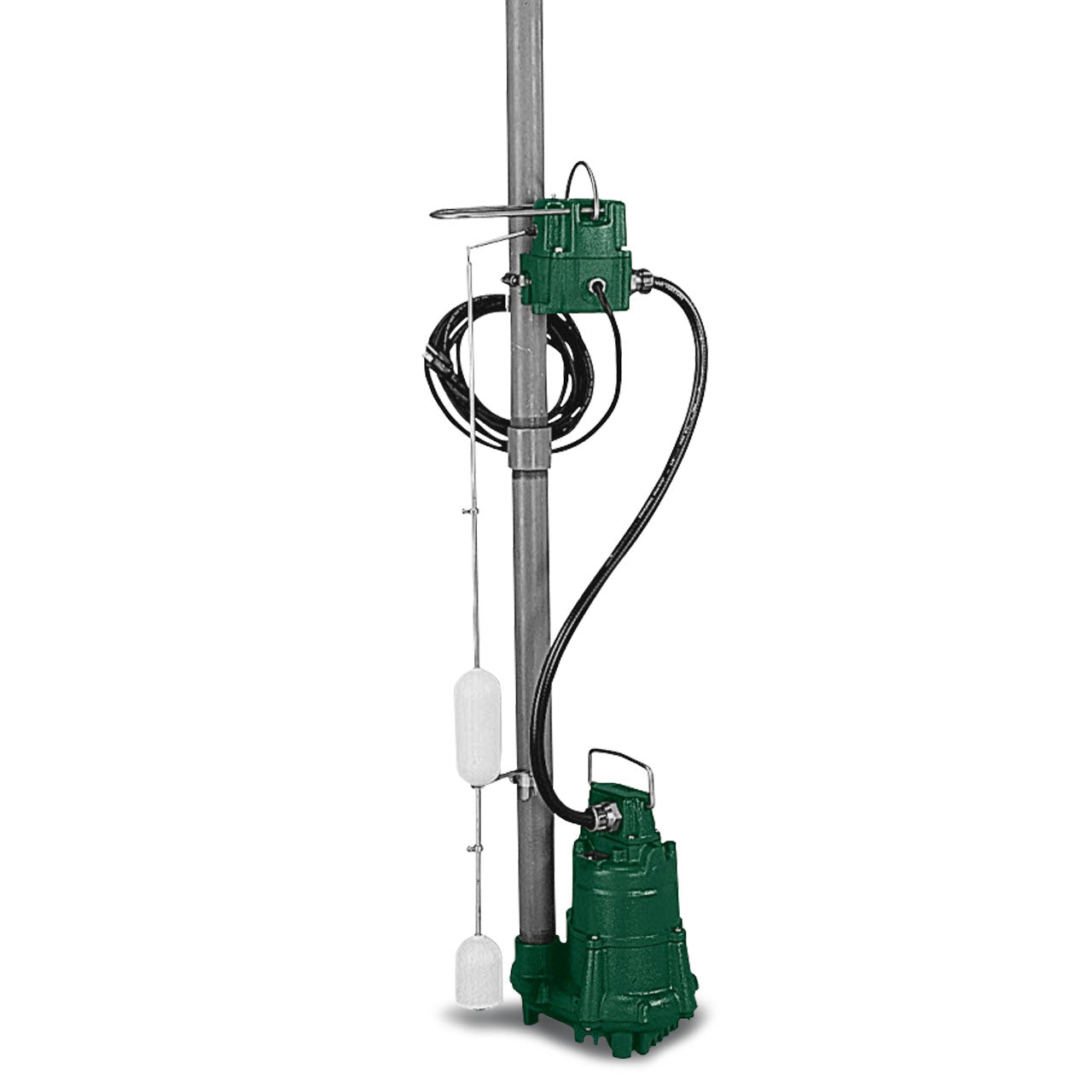

Zoeller Model D3098 High Temperature Submersible Pump Description
Our Model D3098 Sump and Effluent Pump is designed to work in boiler blow down, hot water transfer, plant wash down, transformer vaults, and industrial steam cleaning applications where a pump rated for high temperature is required. The professional-grade, 1/2 HP Model 3098 is known for its dependability in intermittent direct contact applications of up to 200 °F (93 °C). The D3098 is fully automatic float-operated pump.
The Model 3098’s switch case, base, motor housing, and pump housing are each constructed of cast iron. The cast iron vortex impeller has a smooth surface allowing water and solids to pass freely through the pump. The pump’s identification tag, handle, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 3098 is able to withstand the most demanding applications.
Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.
Zoeller Model D3098 High Temperature Submersible Pump Features and Benefits
- Oil Filled for Optimal Heat Dissipation: This Design Minimizes Concerns about the Pump Overheating or Breaking Down Due to Extreme Heat Generation During Extended-Use Applications.
- Cast Iron Vortex Impeller to Allow Free Passage of Solids Which Prevents Clogging and Lessens Downtime
- Powder-Coated Epoxy Finish Provides Corrosion-Resistance and Extends the Life of the Pump in Harsh Environments.
- Stainless Steel Screws, Handle and Hardware to Prevent Rust and Corrosion Over the Life of the Pump
- 100% Factory Tested - Every Pump is Submerged in Water and Tested at the Factory to Ensure that it Performs as Expected when you Receive it.
- Comes with a 1-Year Limited Warranty Giving You Protection Over Your Investment and the Peace of Mind you Expect in a Quality Product.
Specifications
Specifications
Zoeller Model D3098 High Temperature Submersible Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 0.5 HP
- AMPS: 4.2
- RPM: 1725 RPM
- MAX HEAD: 24'
- MAX FLOW RATE: 65 GPM
- SWITCH 'ON' LEVEL: Varies"
- SWITCH 'OFF' LEVEL: Varies"
- DISCHARGE SIZE: 1 1/2"
- SOLIDS HANDLING: 0.5"
- IMPELLER TYPE: Cast Iron, Non-Clogging Vortex
- CORD LENGTH: 15'
- CORD TYPE: 16-3 SOOW cord
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 200°F (93C)
Zoeller Model D3098 Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model D3098 High Temperature 3000 Series Product Resources
Download Zoeller 3000 Series Catalog Sheet FM0806
Download Zoeller 3000 Series Technical Sheet FM2811
Download Zoeller 3000 Series Installation Instructions FM0807
