Zoeller 300-0006 Model 300 Single Stage End Suction Centrifugal Pump 0.33 HP 115V/230V 1PH
Zoeller 300-0006 Model 300 Single Stage End Suction Centrifugal Pump 0.33 HP 115V/230V 1PH
SKU : ZLR300-0006
In Stock Quantity:0
:
Brand
:
Regular price
$861.75 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

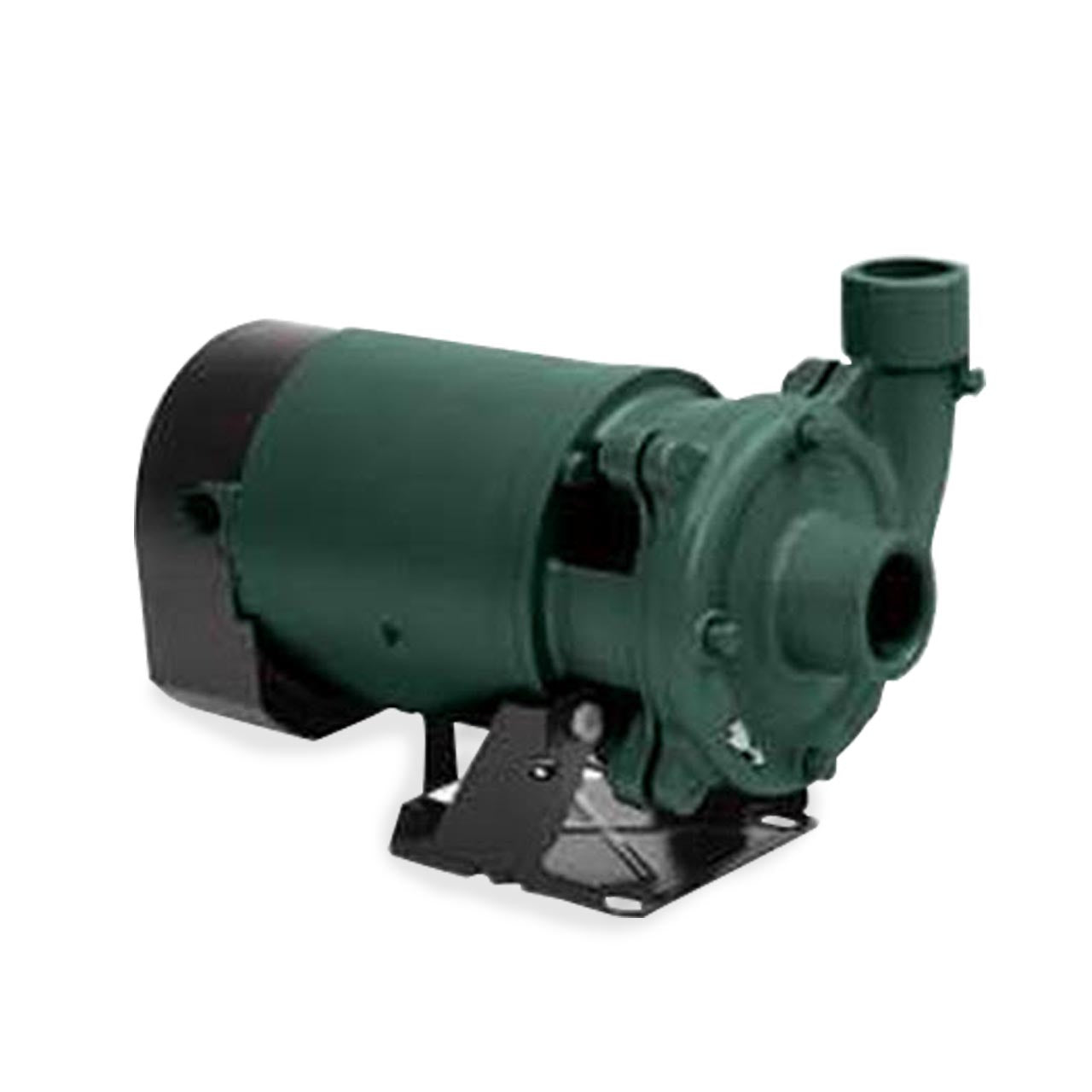

Zoeller Model 300 Single Stage End Suction Centrifugal Pump Description
Zoeller Company is proud to announce the addition of the End Suction Centrifugal Pump to its product line. The pump housing is made of a durable cast iron construction allowing for a variety of applications, such as pressure boosting, circulation, irrigation, water transfer, and lawn sprinkling. Quality features include a heavy duty motor ranging from 1/3 HP to 2 HP, a four postition discharge and mechanical seal and the flexibility to install in either the vertical or horizontal direction. Versatile and compact to fit in tight places, the End Suction Pump is available in 115 to 230 volt single phase. This pump comes preassembled and ready for installation.
Zoeller Model 300 Single Stage End Suction Centrifugal Pump Features and Benefits
- Pump Housing Made of Durable Cast Iron
- Applications Include Pressure Boosting, Circulation, Irrigation, Water Transfer, Cooling Water, Mixing Water, Dewatering and Lawn Sprinkling
- Heavy Duty Motor (from 1/3 HP to 2 HP)
- 4 Position Discharge and Mechanical Seal for Flexibility to Install Vertically or Horizontally
- Compact to Fit in Tight Places
- Comes Preassembled and Ready for Installation
- Drain Plug
- Easily Serviced
- Suction Port 1-1/2"
- Discharge 1-1/4"
- Motor is CSA Listed
- No-Lead Brass Impellers Electronically Balanced
Zoeller Model 300 Single Stage End Suction Centrifugal Pump Applications
- Water Transfer
- Pressure Boosting
- Cooling Water
- Irrigation
- Dewatering
- Circulation
- Mixing Water
Notes:
NE model pumps can be field wired for 115V or 230V applications. Model N300 factory wired for 115V.
Some models are not for sale in states following Proposition 65 and AB1953. Alternatives are available.
Reserve Powered Design. For unusual conditions, a reserve safety factor is engineered into the design of every Zoeller pump.
Specifications
Specifications
Zoeller Model 300 Single Stage End Suction Centrifugal Pump Specifications
- VOLTAGE: 1ø, 115V/230V, 60Hz
- HORSEPOWER: 0.33 HP
- MOTOR TYPE: Capacitor Start
- RPM: 3450 RPM
- MAX HEAD: 64'
- MAX FLOW RATE: 41 GPM
- DISCHARGE SIZE: 1-1/4"
- MAXIMUM LIQUID TEMPERATURE: 200°F (93°C)
Zoeller Model 300 Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model 300 Single Stage End Suction Centrifugal Product Resources
Download Zoeller Single Stage End Suction Centrifugal Pump Catalog Sheet
Download Zoeller Single Stage End Suction Centrifugal Installation Instructions
