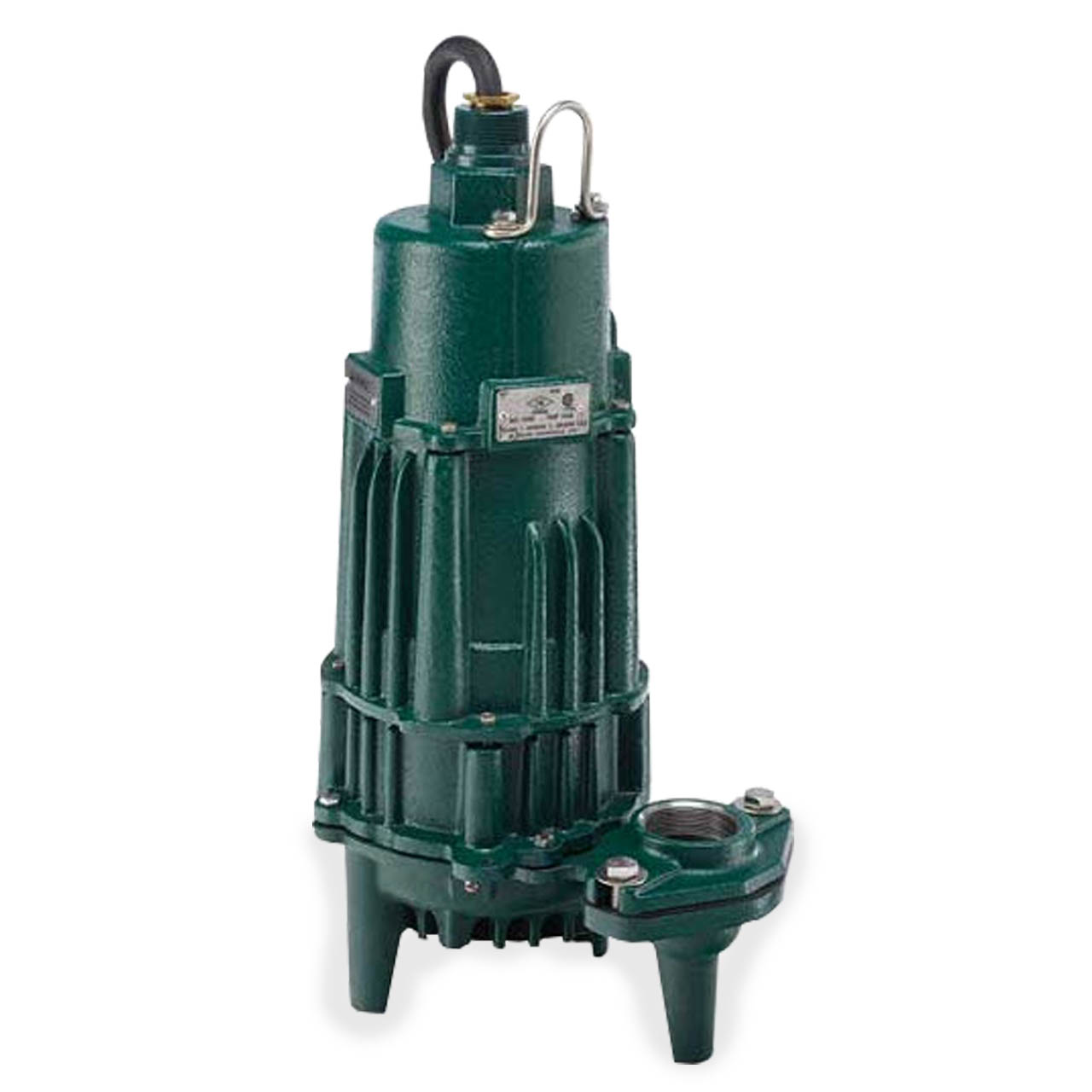

Zoeller 295-0069 Model EX295 Explosion Proof Sewage Pump 2.0 HP 230V 1PH 50' Cord Nonautomatic
Zoeller 295-0069 Model EX295 Explosion Proof Sewage Pump 2.0 HP 230V 1PH 50' Cord Nonautomatic
SKU : ZLR295-0069
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - 295 Series
Zoeller Model EX295 Explosion Proof Sewage Pump Description
This series of submersible pumps is designed for use in residential or commercial wastewater applications in Class I, Division 1, Group C and D environments. Each pump is FM/CSA approved and features innovative motor and electrical enclosures that are designed to reduce the risk of vapor ignition both inside and outside the pump. Should vapors inside the electrical enclosures become ignited, the enclosures are engineered to contain the event and prevent escalation. Each pump is constructed of hardware that will allow it to operate safely and efficiently in extreme conditions. As with every Zoeller pump, each one is 100% factory tested to ensure quality and reliability for years of trouble free performance!
Zoeller Model EX295 Explosion Proof Sewage Pump Features and Benefits
- cCSAus Rated Class I, Division 1, Groups C & D and Class Zone 1, Groups IIA & IIB Construction
- Tested to FM Standards 3600 and 3615 by CSA
- Automatic or Non-Automatic, Automatic Units Patent No. 8,535,014
- Non-Clogging Vortex Impeller Design, Bronze Class 88-8-0,4
- Stainless Steel Bolts, Handle, Guard and Float Rod Guide, Switch Arm and Actuator Assembly
- Durable Cast Construction. Cast Iron Cover, Motor Adapter and Pump Housing.
- 20' (6m), UL Listed, 5-Wire (1Ph) or 8-Wire (3Ph) Neoprene Cord. Extra Cord Lengths Available in 25', 35' and 50' (8 m, 11 m and 15 m) Length Only. Sensor Leads and Power Leads in One Cord for Easy Installation
- Threaded Conduit Connection for Protecting Cords in Extra Heavy-Duty Applications: 1-1/2" NPT.
- Moisture Sensors Prewired in Motor Housing (functionality requires indicator circuit in panel)
- Zoeller Control Panel with Intrinsically Safe Relays and Moisture Indicator is Required with Nonautomatic Units (Simplex Panel 10-1242 and Duplex Model 10-1297)
- Motor - 60 Hz, 3450 RPM, Oil-Filled, Hermetically Sealed, Automatic Reset Thermal Overload Protected (3 Ph requires circuit in control panel)
- Maximum Temperature for Sewage or Dewatering 104°F (40°C)
- All Models Pass 2" (50 mm) Spherical Solids
- 2" NPT Female Flanged Vertical Discharge or 3” NPT FLANGE KIT Available
- Corrosion-Resistant, Powder Coated Epoxy Finish
Specifications
Specifications
Zoeller 295-0069 Explosion Proof Sewage Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 2.0 HP
- AMP DRAW (full load): 17.1
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3450
- MAXIMUM HEAD: 75'
- MAXIMUM CAPACITY: 214 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2" or 3" NPT Female, Flanged Vertical
- MAXIMUM SOLIDS HANDLING: 2" Spherical Solid
- IMPELLER TYPE: Bronze, Non-Clogging Vortex
- CORD LENGTH: 50' Type UL listed 5-wire SOOW Cord
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 104°F (40C)
- HAZARDOUS DUTY: Class I, Division 1, Groups C & D and Class Zone 1, Groups IIA & IIB Construction
Zoeller Model EX295 Performance Curve
