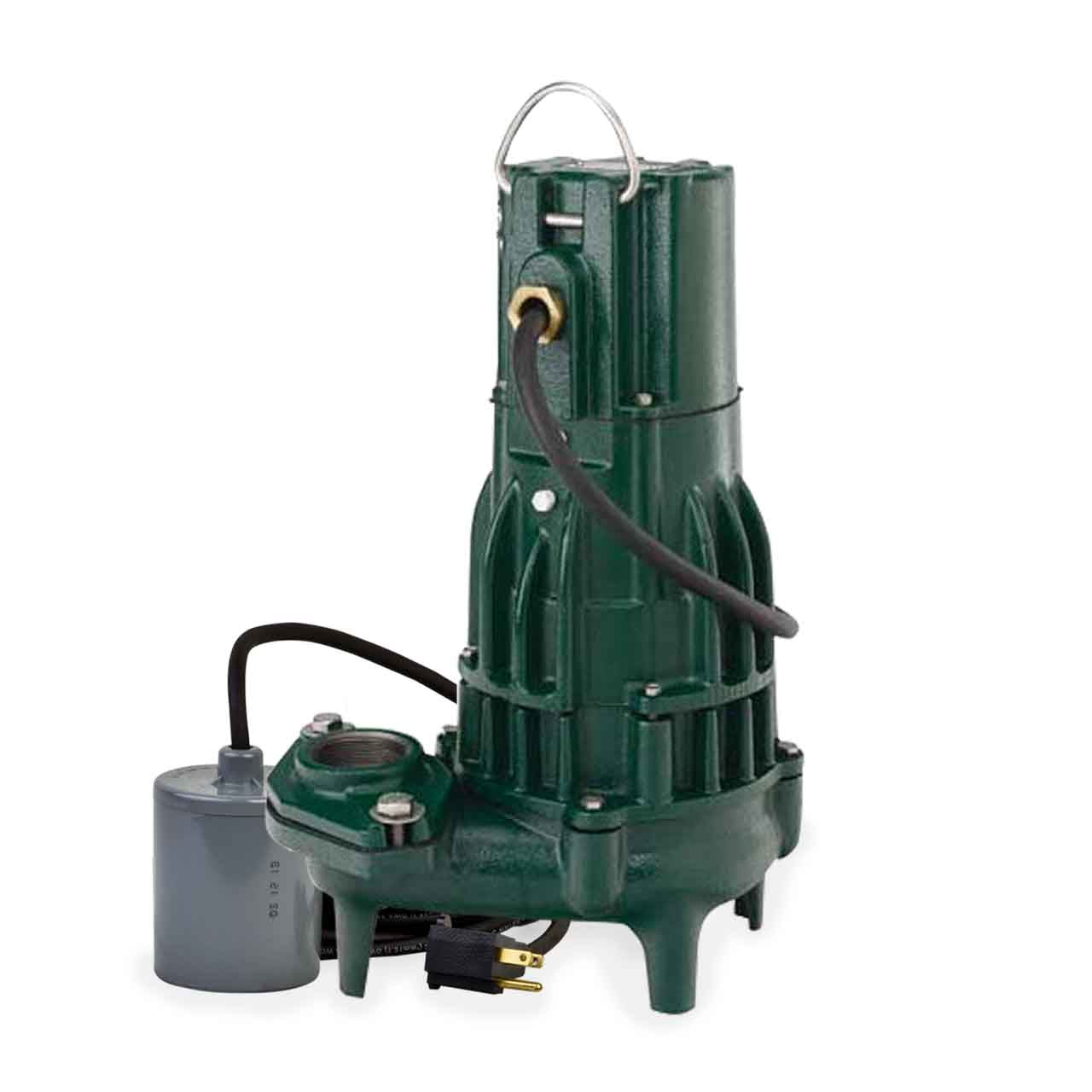

Zoeller 295-0040 Model WD295 High Head Sewage Dewatering Pump 2.0 HP 230V 1PH 20' Cord Automatic
Zoeller 295-0040 Model WD295 High Head Sewage Dewatering Pump 2.0 HP 230V 1PH 20' Cord Automatic
SKU : ZLR295-0040
In Stock Quantity:0
:
Brand
:
Regular price
$1,962.40 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Zoeller WD2905 Series Sewage & Dewatering Pump Description
The High Head Waste-Mate series of submersible pumps is designed for use in residential or light commercial dewatering and wastewater applications and can be used to transfer groundwater and effluent or raw sewage. The innovative vortex impeller design reduces the risk of clogging and allows each pump to pass 2" (50 mm) spherical solids. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller® pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance!
Zoeller WD2905 Series Sewage & Dewatering Pump Features and Benefits
- Durable Cast Iron Constructed Switch Case, Base, Motor and Pump Housing
- All Cast Iron Class 25-30 25000# Tensile Strength
- Stainless Steel Screws, Bolts, Float Rod, Handle, Guard, Arm and Seal Assembly
- Oil Filled, Hermetically Sealed, Automatic Reset Thermal Overload Protected (1 Ph only) Motor
- Maximum Temperature for Sewage or Dewatering: 130°F (54°C) Standard
- Shaft Seal - Stainless Steel Carbon & Ceramic Rotary
- Corrosion-Resistant, Powder Coated Epoxy Finish
- Available with Float Operated, Submersible (NEMA 6) 2-Pole Mechanical Switch
- Specify 2” NPT or 3” NPT Female Flanged Vertical Discharge Kit when Ordering
Specifications
Specifications
Zoeller Model WD2905 Sewage & Dewatering Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 2.0 HP
- AMPS: 17.1
- MOTOR TYPE: Permanent Split Capacitor
- RPM: 3450 RPM
- MAX HEAD: 75'
- MAX FLOW RATE: 214 GPM
- SWITCH 'ON' LEVEL: 15 3/4"
- SWITCH 'OFF' LEVEL: 5 1/4"
- DISCHARGE SIZE: 2" or 3" NPT Female Flanged Vertical
- SOLIDS HANDLING: 2" Spherical Solid
- IMPELLER TYPE: Bronze, Non-Clogging Vortex
- CORD LENGTH: 20'
- CORD TYPE: 1 Ph: UL Listed 3-Wire Neoprene Cord and Plug. 3 Ph: 4-wire with No Plug.
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
Zoeller Model WD2905 Performance Curve
