Discontinued - Zoeller

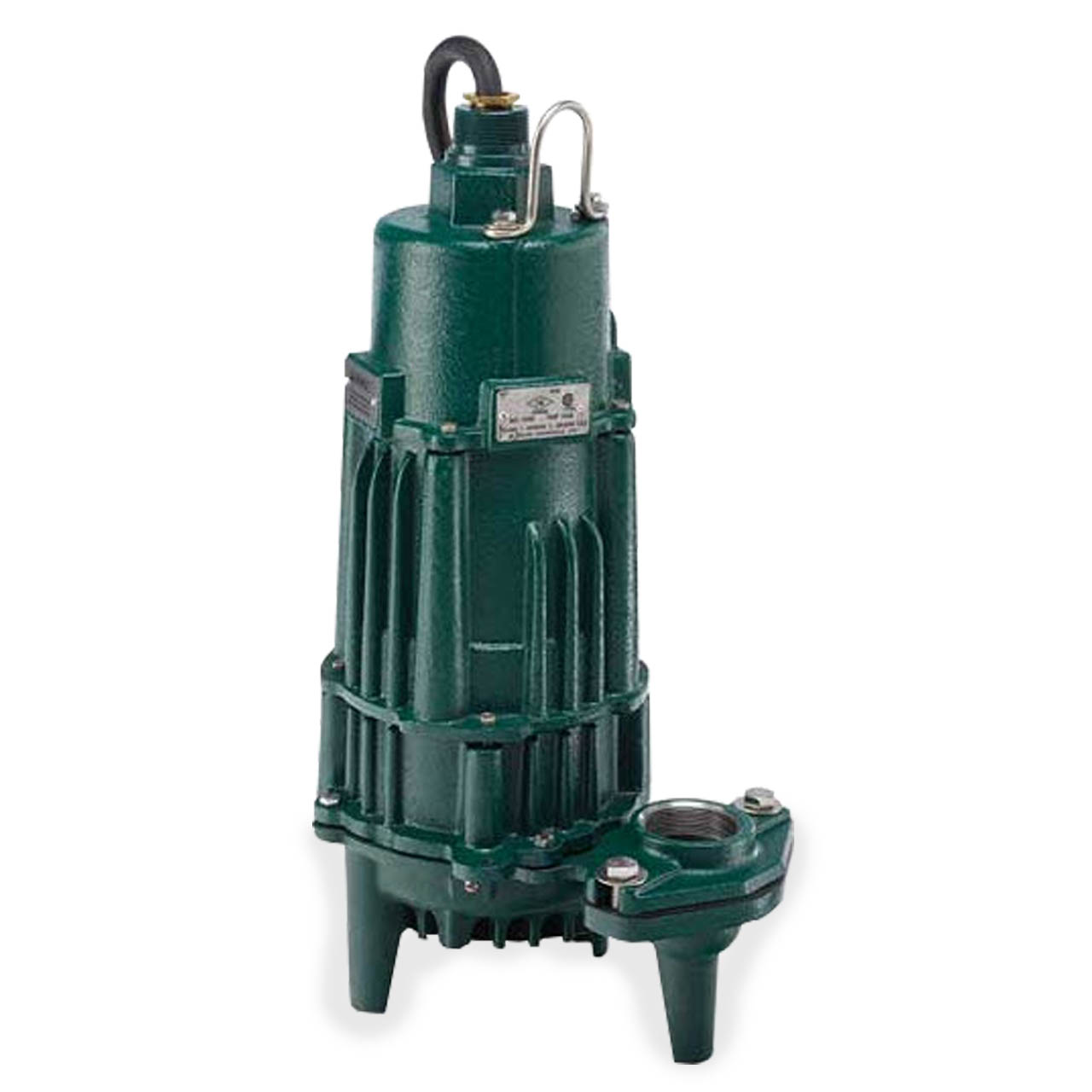

Zoeller Model EX293 Submersible Pump Description
This series of submersible pumps is designed for use in residential or commercial wastewater applications in Class I, Division 1, Group C and D environments. Each pump is FM/CSA approved and features innovative motor and electrical enclosures that are designed to reduce the risk of vapor ignition both inside and outside the pump. Should vapors inside the electrical enclosures become ignited, the enclosures are engineered to contain the event and prevent escalation. Each pump is constructed of hardware that will allow it to operate safely and efficiently in extreme conditions. As with every Zoeller pump, each one is 100% factory tested to ensure quality and reliability for years of troublefree performance!
Zoeller Model EX293 Submersible Pump Features and Benefits
- Stainless Steel Bolts, Handle, Guard and Float Rod Guide, Switch Arm and Actuator Assembly
- Durable Cast Construction. Cast Iron Cover, Motor Adapter and Pump Housing
- Moisture Sensors Prewired in Motor Housing (functionality requires indicator circuit in panel)
- Zoeller Control Panel with Intrinsically Safe Relays and Moisture Indicator is Required with Nonautomatic Units (Simplex Panel 10-1242 and Duplex Panel 10-1297)
- Motor - 60 Hz, 3450 RPM, Oil-Filled, Hermetically Sealed, Automatic Reset Thermal Overload Protected
- Maximum Temperature for Sewage or Dewatering 104°F (40°C)
- When Ordering Specify 2” or 3” NPT Female Flanged Vertical Discharge
- Corrosion-Resistant, Powder Coated Epoxy Finish
Specifications
Specifications
Zoeller Model EX293 Submersible Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 1.0 HP
- AMPS: 10.2
- MOTOR TYPE: Permanent Split Capacitor
- RPM: 3450 RPM
- MAX HEAD: 50'
- MAX FLOW RATE: 118 GPM
- SWITCH 'ON' LEVEL: 19 1/2"
- SWITCH 'OFF' LEVEL: 9 3/4"
- DISCHARGE SIZE: 2" or 3" NPT female, flanged vertical
- SOLIDS HANDLING: 2" Spherical Solid
- IMPELLER TYPE: Cast Iron, Non-Clogging Vortex
- CORD LENGTH: 35'
- CORD TYPE: UL listed 5-wire (1 Ph) or 8-wire (3 Ph) SOOW
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 104°F (40C)
Zoeller Model EX293 Performance Curve
