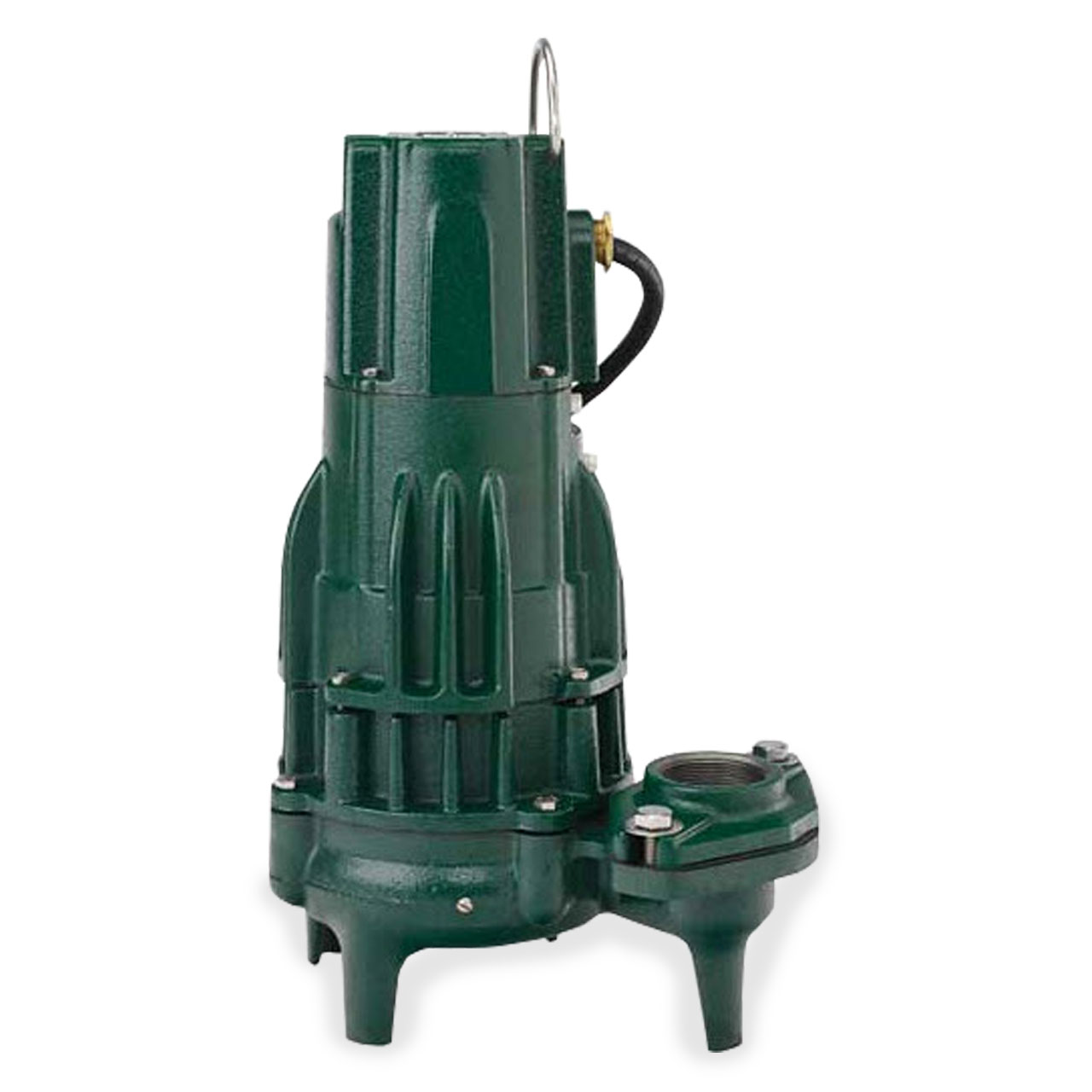

Zoeller 293-0058 Model I293 High Head Sewage Dewatering Pump 1.0 HP 200V 1PH 50' Cord Manual
Zoeller 293-0058 Model I293 High Head Sewage Dewatering Pump 1.0 HP 200V 1PH 50' Cord Manual
SKU : ZLR293-0058
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Zoeller Model 293 Sewage & Dewatering Pump Description
Zoeller Model 293 Sewage Pumps are designed to transfer groundwater, raw sewage or effluent with a no-hassle, effortless performance. The heavy-duty construction, oversized bearings and balanced non-clogging vortex impellers allow the Model 293 to stand up to the highest heads and maximum flows. The benefits of this series include a discharge size of 2-inches with the capacity to pass 2-inch solids. In addition, fins are added in the construction of the pump, utilizing our cool run design and lowering operating temperatures.
Zoeller Model 293 Sewage & Dewatering Pump Features and Benefits
- Oil-Filled Motor and Cast Iron Motor Housing for Optimal Heat Dissipation which Prevents the Pump from Overheating
- Nonautomatic Operation that will Require a Piggyback Float Switch or Control Panel to Control the Pump's On/Off Level
- Corrosion Resistant Cast Iron Vortex Impeller to Allow Free Passage of 2" Spherical Solids Which Prevents Clogging and Increases Reliability
- Stainless Steel Screws, Handle, and Hardware to Prevent Rust and Corrosion
- Powder-Coated Epoxy Finish Provides Corrosion-Resistance and Extends the Life of the Pump in Harsh Environments
- 100% Factory-Tested - Every Pump is Submerged in Water and Tested at the Factory to Ensure that it performs as Expected When You Receive It
- Comes with a 1-Year Limited Warranty Giving you Protection Over Your Investment and the Peace of Mind you Expect in a Quality Product
Specifications
Specifications
Zoeller 293-0058 Sewage & Dewatering Pump Specifications
- VOLTAGE: 1ø, 200V, 60Hz
- HORSEPOWER: 1.0 HP
- AMP DRAW (full load): 12.0
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3450
- MAXIMUM HEAD: 50'
- MAXIMUM CAPACITY: 118 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2" NPT Female Flanged Vertical Discharge
- MAXIMUM SOLIDS HANDLING SIZE: 2" Spherical Solid
- IMPELLER TYPE: Bronze, Non-Clogging Vortex
- CORD LENGTH: 50'
- CORD TYPE: 1 Ph: UL Listed 3-Wire Neoprene Cord and Plug.
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 130°F (54C)
Zoeller Model 293 Sewage & Dewatering Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model 293 Sewage & Dewatering Pump Product Resources
Download Zoeller Model 293 Sewage Pump Technical Data Sheet FM2792
Download Zoeller Model 293 Sewage Pump Installation FM0447
Download Zoeller Model 290 Sewage Pump Simplex System FM 0600
