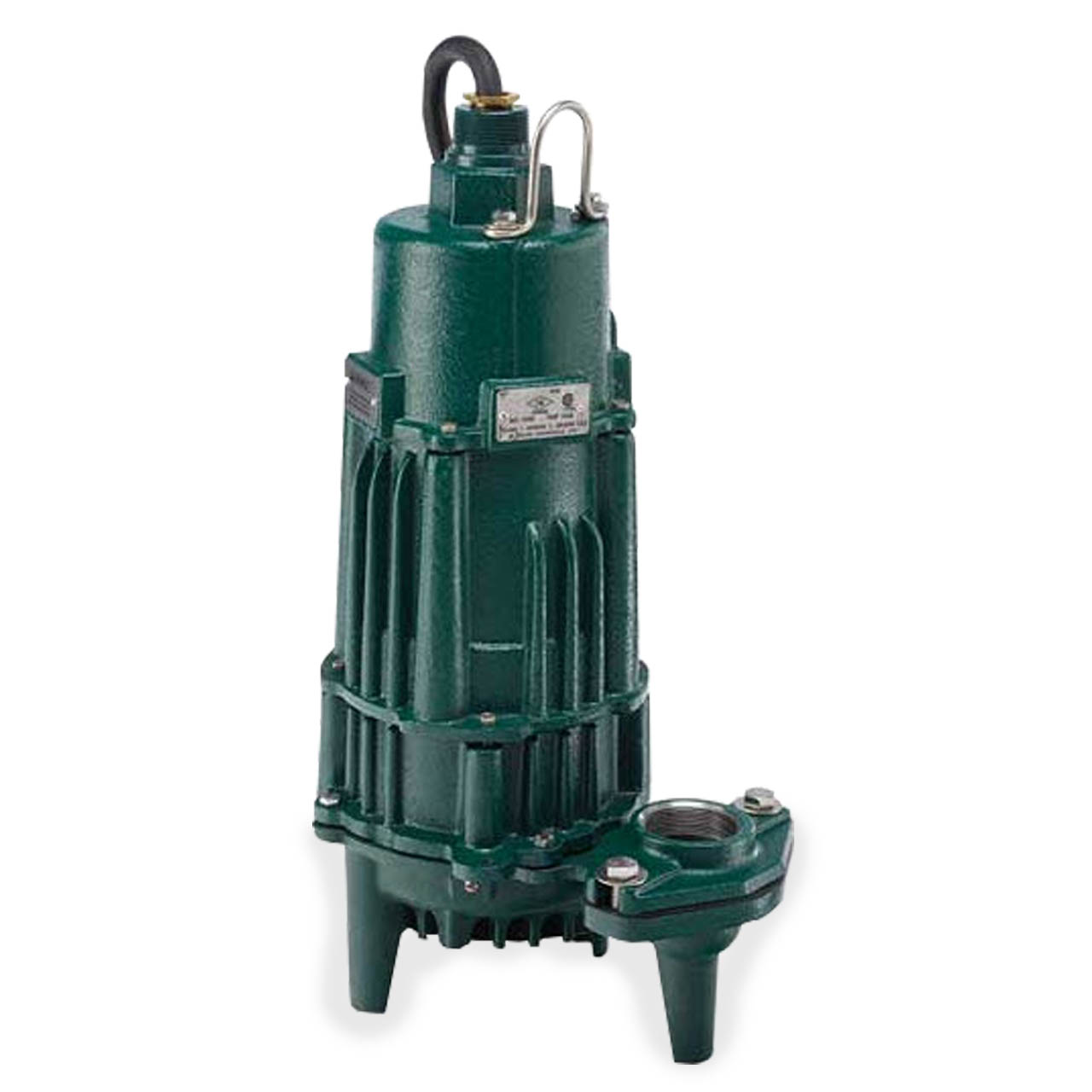

Zoeller 284-0054 Model JX284 Explosion Proof Sewage Pump 1.0 HP 200V 3PH 20' Cord Nonautomatic
Zoeller 284-0054 Model JX284 Explosion Proof Sewage Pump 1.0 HP 200V 3PH 20' Cord Nonautomatic
SKU : ZLR284-0054
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Zoeller
Zoeller Model JX284 Explosion Proof Sewage Pump Description
This series of submersible pumps is designed for use in residential or commercial wastewater applications in Class I, Division 1, Group and D environments. Each pump is FM/CSA approved and features innovative motor and electrical enclosures that are designed to reduce the risk of vapor ignition both inside and outside the pump. Should vapors inside the electrical enclosures become ignited, the enclosures are engineered to contain the event and prevent escalation. Each pump is constructed of hardware that will allow it to operate safely and efficiently in extreme conditions. As with every Zoeller pump, each one is 100% factory tested to ensure quality and reliability for years of trouble free performance!
Zoeller Model JX284 Explosion Proof Sewage Pump Features and Benefits
- cCSAus Rated Class I, Division 1, Group C & D and Class Zone 1, Groups IIA & IIB Construction
- Tested to FM Standards 3600 and 3615 by CSA
- Automatic or Non-Automatic. Automatic Units Patent No. 8,535,014
- Non-Clogging, Cast Iron, Vortex Impeller Design
- Durable Cast Construction. Cast Iron Cover, Motor Adapter and Pump Housing.
- Stainless Steel Bolts, Rotor Shaft, Handle, Guard and Float Rod Guide, Switch Arm and Actuator Assembly
- 20' (6 m), UL Listed, 5-Wire (1PH) or 8-Wire (3PH) Neoprene Cord. Extra Cord Lengths Available in 25', 35' and 50' (8 m, 11 m and 15 m) Lengths Only. Sensor Leads and Power Leads in One Cord for Easy Installation.
- Threaded Conduit Connection for Protecting Cords in Extra Heavy Duty Applications; 1-1/2" NPT
- Moisture Sensors Prewired in Motor Housing (functionality requires indicator circuit in panel)
- Control Panel with Intrinsically Safe Relays and Moisture Indicator is Required with Nonautomatic Units. (Simplex Panel 10-1242 and Duplex Panel 10-1297)
- Motor - 1750 RPM, Oil-Filled, Hermetically Sealed, Automatic Reset Thermal Overload Protected (3Ph Requires Circuit in Control Panel)
- Maximum Temperature for Sewage or Dewatering: 104°F (40°C)
- All Models Pass 2" (50 mm) Spherical Solids
- 2" NPT Female Flanged Vertical Discharge with 3” NPT FLANGE KIT Available
- Corrosion-Resistant, Powder Coated Epoxy Finish
Specifications
Specifications
Zoeller 284-0054 Explosion Proof Sewage Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 1.0 HP
- AMP DRAW (full load): 8.9
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 1750
- MAXIMUM HEAD: 35'
- MAXIMUM CAPACITY: 179 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2" or 3" NPT Female, Flanged Vertical
- MAXIMUM SOLIDS HANDLING: 2" Spherical Solid
- IMPELLER TYPE: Cast Iron, Non-Clogging Vortex
- CORD LENGTH: 20' Type UL listed 5-wire SOOW Cord
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 104°F (40C)
- HAZARDOUS DUTY: Class I, Division 1, Groups C & D and Class Zone 1, Groups IIA & IIB Construction
Zoeller Model JX284 Performance Curve
