Zoeller 284-0009 Model H284 "Waste-Mate" Pump 1.0 HP 200V 1PH 10' Cord Automatic
Zoeller 284-0009 Model H284 "Waste-Mate" Pump 1.0 HP 200V 1PH 10' Cord Automatic
SKU : ZLR284-0009
In Stock Quantity:0
:
Brand
:
Regular price
$1,500.80 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

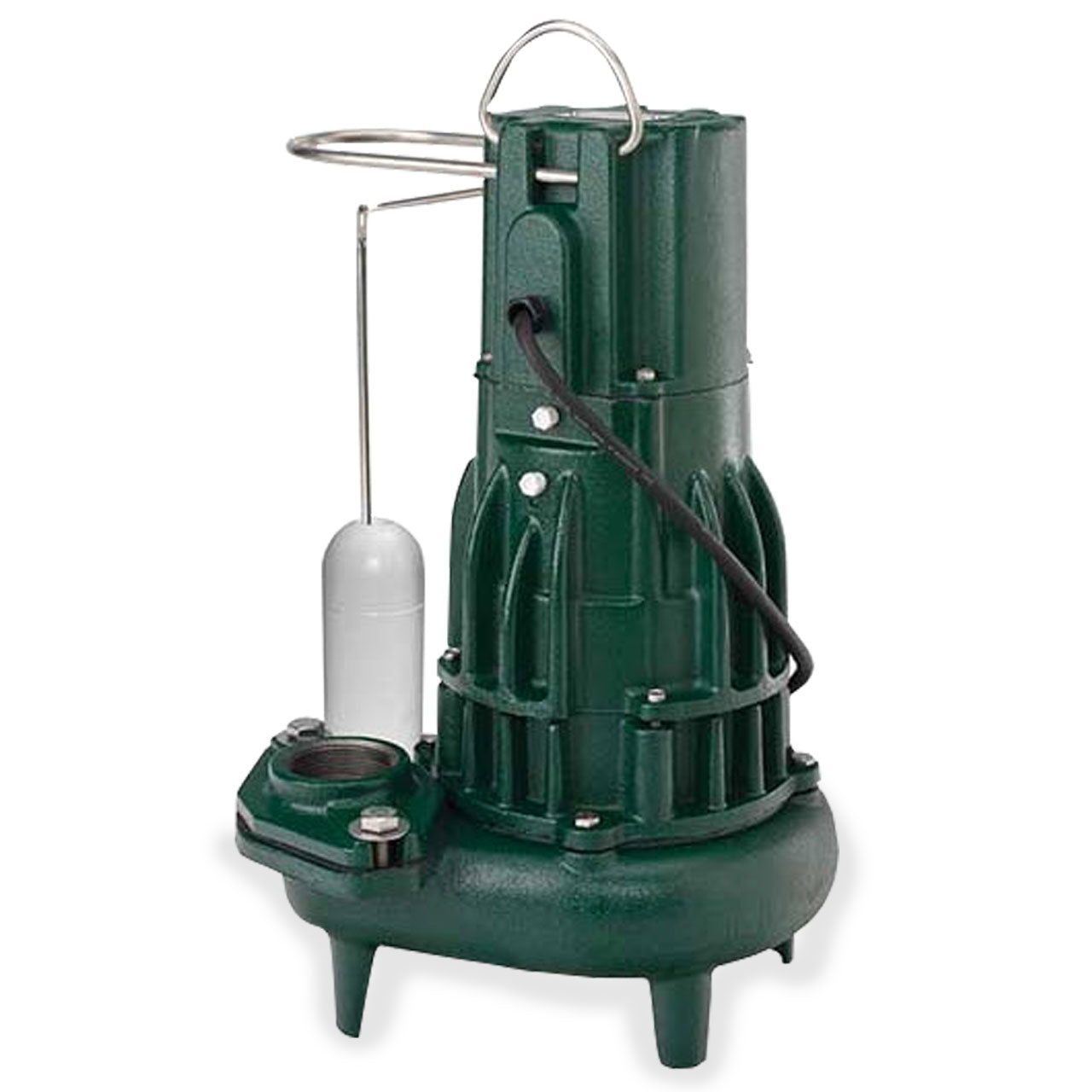

Zoeller Model H284 Submersible Pump Description
The "Waste-Mate" series of submersible pumps is designed for use in residential or light commercial dewatering and wastewater applications and can be used to transfer groundwater and effluent or unscreened raw sewage. The innovative vortex impeller design reduces the risk of clogging and allows each pump to pass a 50 mm (2") spherical solid. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion, and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance.
Zoeller Model H284 Submersible Pump Features and Benefits
- Durable Cast Iron Constructed Switch Case, Motor and Pump Housing, Base and Impeller
- All Cast Iron Class 25-30 25000# Tensile Strength
- Stainless Steel Screws, Bolts, Float Rod, Handle, Guard and Arm and Seal Assembly
- Maximum Temperature for Sewage or Dewatering: 130° F (54° C)
- Oil Filled, Hermetically Sealed, Automatic Reset Thermal Overload Protected motor
- 2” NPT Flanged Discharge Standard (3” NPT Flanged Discharge Available - Specify when Ordering)
- Available with Float Operated, Submersible (NEMA 6) Mechanical Switch
- Corrosion-Resistant, Powder Coated Epoxy Finish
- On Point: 15¼” (38.7cm)
- Off Point: 5¼” (13cm)
Specifications
Specifications
Zoeller Model H284 Submersible Pump Specifications
- VOLTAGE: 1ø, 200V, 60Hz
- HORSEPOWER: 1.0 HP
- AMPS: 9.3
- MOTOR TYPE: Permanent Split Capacitor
- RPM: 1750 RPM
- MAX HEAD: 35'
- MAX FLOW RATE: 179 GPM
- SWITCH 'ON' LEVEL: 16 1/2"
- SWITCH 'OFF' LEVEL: 5 1/4"
- DISCHARGE SIZE: 2" NPT Vertical Discharge
- SOLIDS HANDLING: 2" Spherical Solid
- IMPELLER TYPE: Cast Iron, Non-Clogging Vortex
- CORD LENGTH: 10'
- CORD TYPE: UL Listed 3-Wire Neoprene Cord and Plug
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
Zoeller Model H284 Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model H284 Product Resources
Download Zoeller Model 280 Catalog Sheet 60Hz FM0494
Download Zoeller Model 280 Technical Sheet High Head Waste-Mate,282/4282,284/4284
Download Zoeller Model 284 Parts List FM0497
Download Zoeller Installation Instructions, 1 - year warranty FM0447
