Zoeller 268-0022 Model J268 Sewage Effluent or Dewatering Pump 0.5 HP 200V 3PH 15' Cord Nonautomatic
Zoeller 268-0022 Model J268 Sewage Effluent or Dewatering Pump 0.5 HP 200V 3PH 15' Cord Nonautomatic
SKU : ZLR268-0022
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

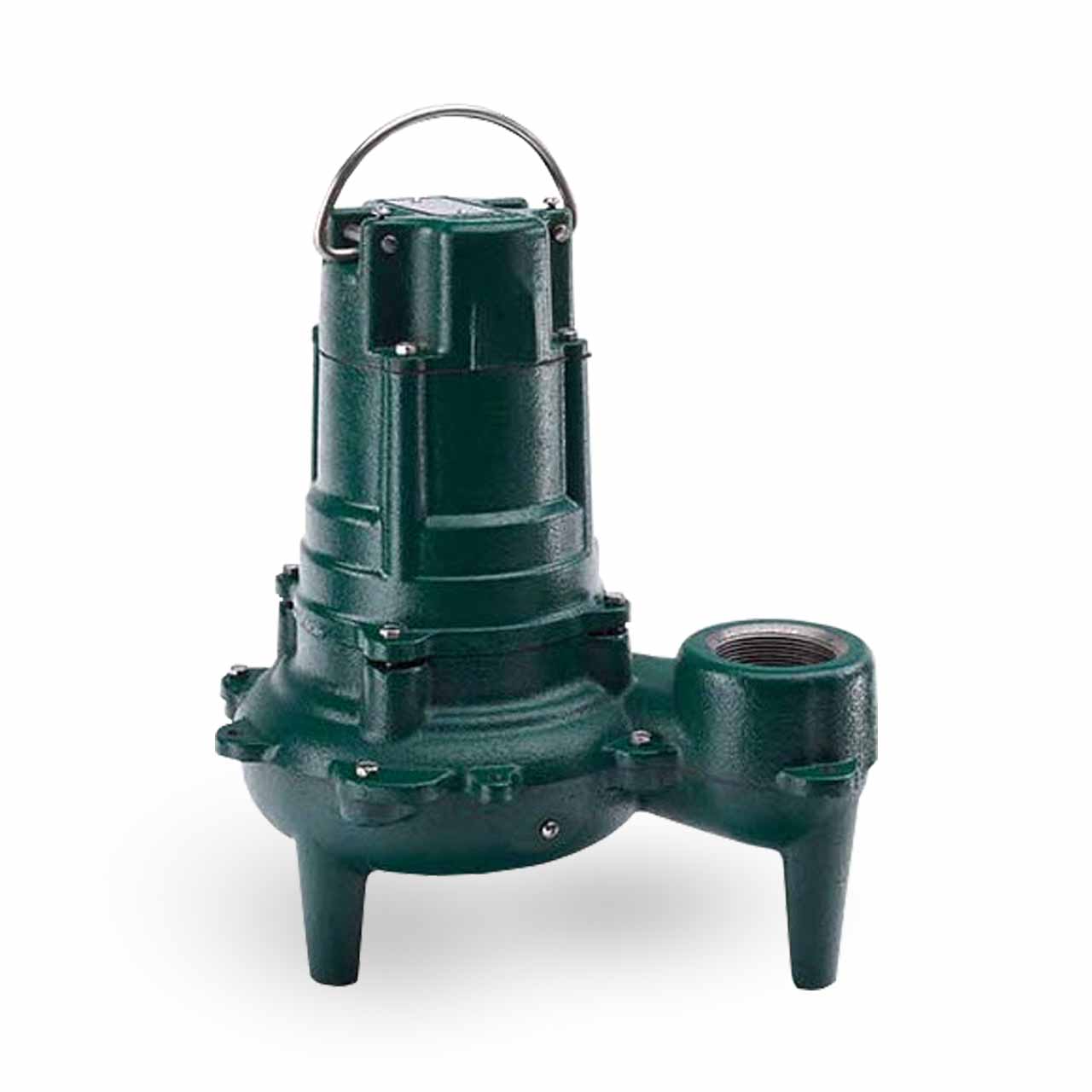

Zoeller Model J268 Submersible Pump Description
The "Waste-Mate" series of submersible pumps is designed for use in residential or light commercial dewatering and wastewater applications and can be used to transfer groundwater, effluent or raw sewage. The innovative vortex impeller design reduces the risk of clogging and allows each pump to pass 2" (50 mm) spherical solids. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance!
Zoeller Model J268 Submersible Pump Features and Benefits
-
Durable Cast Construction, ASTM Class 25 Cast Iron, Switch Case and Pump Housing
-
Cast Iron Base
-
Not Affected by Materials Normally Found in Drainage and Sewage Pumps
-
Stainless Steel Screws, Bolts, Handle, Guard and Arm and Seal Assembly
-
Oil Filled, Hermetically Sealed Motor
-
2” Female and 3" NPT Male Discharge
-
Corrosion-Resistant, Powder Coated Epoxy Finish
Specifications
Specifications
Zoeller Model J268 Submersible Pump Specifications
- VOLTAGE: 3ø, 200V, 60Hz
- HORSEPOWER: 0.5 HP
- AMPS: 5.5
- MOTOR TYPE: 3 Phase
- RPM: 1725 RPM
- MAX HEAD: 21.5'
- MAX FLOW RATE: 128 GPM
- SWITCH 'ON' LEVEL: 12"
- SWITCH 'OFF' LEVEL: 4"
- DISCHARGE SIZE: 2" NPT Vertical Discharge
- SOLIDS HANDLING: 2" Spherical Solid
- IMPELLER TYPE: Engineered Plastic w/ Metal Insert, Non-Clogging Vortex
- CORD LENGTH: 15'
- CORD TYPE: UL Listed Neoprene Cord and Plug
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
Zoeller Model J268 Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model 260 Product Resources
Download Zoeller Model 260 Catalog Sheet FM0390 Ea
Download Zoeller Model 260 Technical Sheet: Waste Mate 266,267,268
Download Zoeller Model 268 Parts List FM0518
Download Zoeller Installation Instructions, 3 - year warranty FM2676
Download Zoeller Sewage Specs, Simplex Systems FM0600
