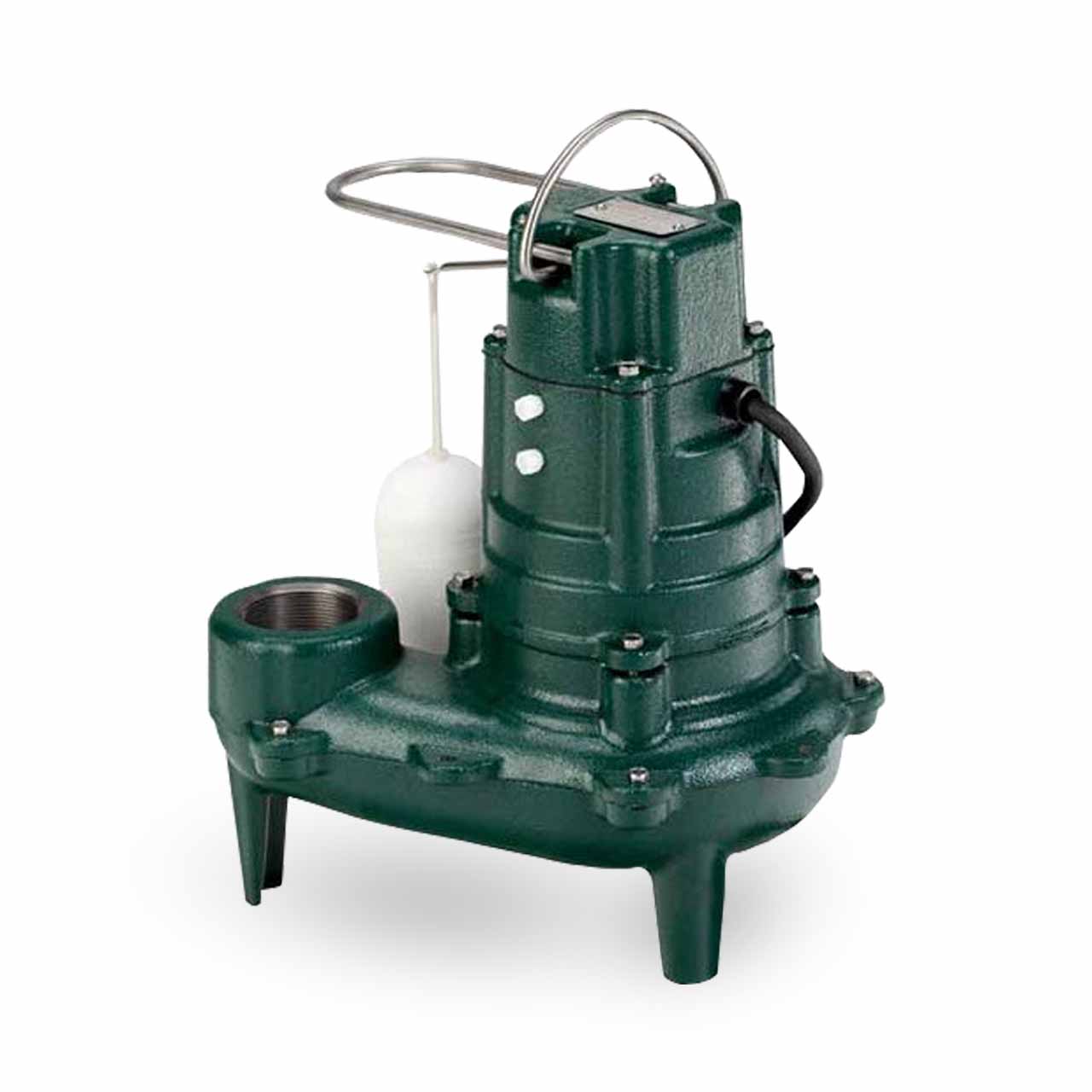

Zoeller 267-0078 Model D267 Sewage Pump 0.5 HP 230V 1PH 35' Cord Automatic
Zoeller 267-0078 Model D267 Sewage Pump 0.5 HP 230V 1PH 35' Cord Automatic
SKU : ZLR267-0078
In Stock Quantity:0
:
Brand
:
Regular price
$734.25 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Zoeller Model D267 Submersible Pump Description
The "Waste-Mate" series of submersible pumps is designed for use in residential or light commercial dewatering and wastewater applications and can be used to transfer groundwater, effluent or raw sewage. The innovative vortex impeller design reduces the risk of clogging and allows each pump to pass 2" (50 mm) spherical solids. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance!
Zoeller Model D267 Submersible Pump Features and Benefits
- Float Operated, Submersible (NEMA 6) 2-Pole Mechanical Switch
- Durable Cast Construction, ASTM Class 25 Cast Iron, Switch Case and Pump Housing
- Cast Iron Base
- Engineered Plastic Impeller with Metal Inserts on Models 266, 267 & 268 (1 PH).
- Available With Cast Iron Impeller Option.
- Not Affected by Materials Normally Found in Drainage and Sewage Pumps
- Stainless Steel Screws, Bolts, Handle, Guard and Arm and Seal Assembly
- Oil Filled, Hermetically Sealed Motor
- 2” Female NPT Discharge
- Corrosion-Resistant, Powder Coated Epoxy Finish
- Automatic Reset Thermal Overload Protection
- On point: 12” (30 cm)
- Off point: 4” (10 cm)
Specifications
Specifications
Zoeller Model D267 Submersible Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 0.5 HP
- AMPS: 5.5
- MOTOR TYPE: Permanent Split Capacitor
- RPM: 1725 RPM
- MAX HEAD: 21.5'
- MAX FLOW RATE: 128 GPM
- SWITCH 'ON' LEVEL: 12"
- SWITCH 'OFF' LEVEL: 4"
- DISCHARGE SIZE: 2" NPT Vertical Discharge
- SOLIDS HANDLING: 2" Spherical Solid
- IMPELLER TYPE: Engineered Plastic w/ Metal Insert, Non-Clogging Vortex
- CORD LENGTH: 35'
- CORD TYPE: UL Listed Neoprene Cord and Plug
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
Zoeller Model D267 Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model 260 Product Resources
Download Zoeller Model 260 Catalog Sheet FM0390 Ea
Download Zoeller Model 260 Technical Sheet: Waste Mate 266,267,268
Download Zoeller Model 267 Parts List (M,D,N,E,WM) FM0383
Download Zoeller Installation Instructions, 3 - year warranty FM2676
Download Zoeller Sewage Specs, Simplex Systems FM0600
