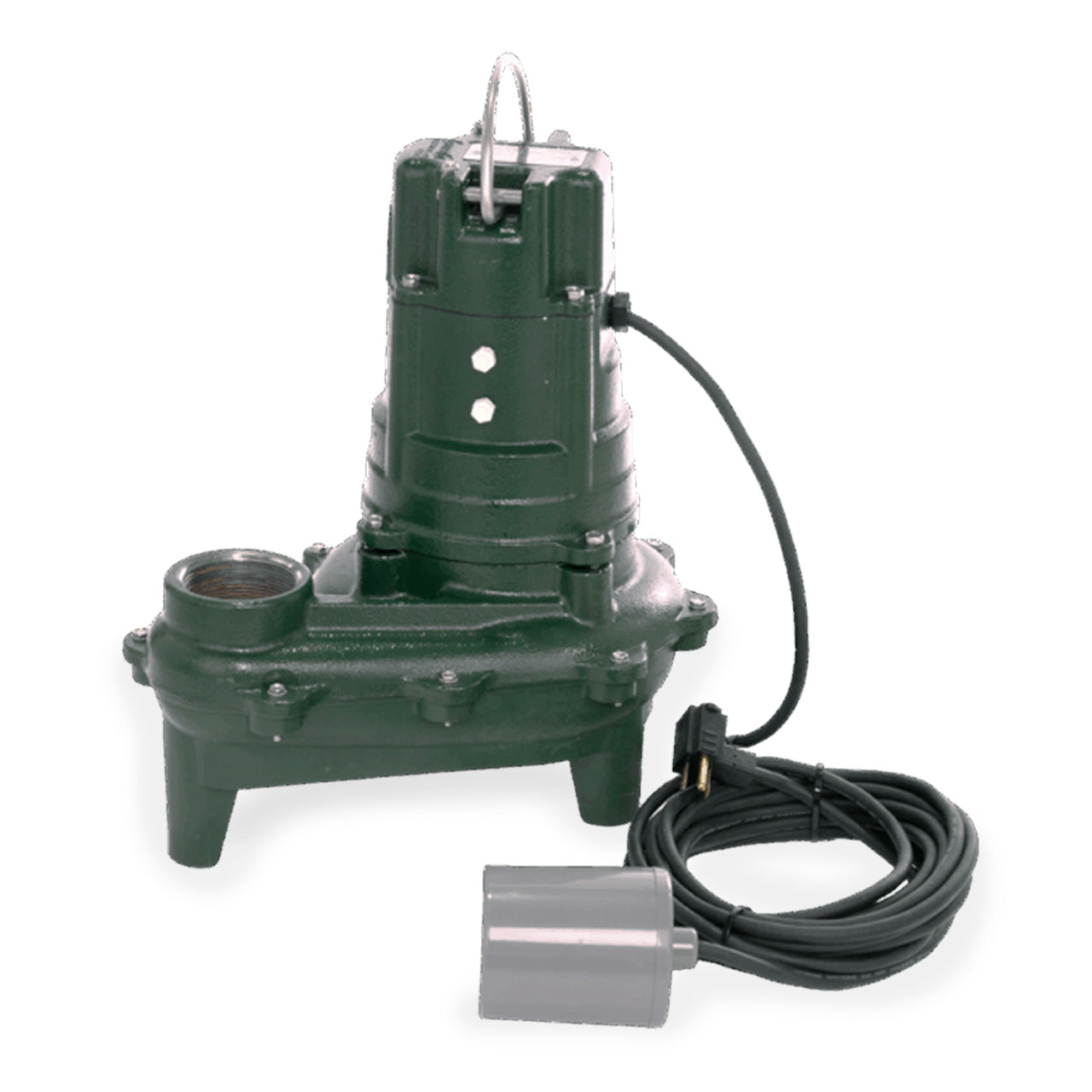

Zoeller 266-0030 Model BN266 Sewage Effluent or Dewatering Pump 0.5 HP 115V 1PH 25' Cord Automatic
Zoeller 266-0030 Model BN266 Sewage Effluent or Dewatering Pump 0.5 HP 115V 1PH 25' Cord Automatic
SKU : ZLR266-0030
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
DISCONTINUED SEE ZOELLER 266 SERIES
Zoeller Model BN266 Submersible Pump Description
The "Waste-Mate" series of submersible pumps is designed for use in residential or light commercial dewatering and wastewater applications and can be used to transfer groundwater, effluent or raw sewage. The innovative vortex impeller design reduces the risk of clogging and allows each pump to pass 2" (50 mm) spherical solids. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance!
Zoeller Model BN266 Submersible Pump Features and Benefits
- Variable Float Switch Includes Piggyback Style Plug
- Durable Cast Iron Construction, ASTM Class 25 Cast Iron, Switch Case and Pump Housing
- Engineered Plastic Base
- Engineered Plastic Impeller with Metal Inserts on Models 266, 267 & 268 (1 PH).
- Not Affected by Materials Normally Found in Drainage and Sewage Pumps
- Stainless Steel Screws, Bolts, Handle, Guard and Arm and Seal Assembly
- Oil Filled, Hermetically Sealed Motor
- Passes 2" (50 mm) Spherical Solids
- 2” Female NPT Discharge
- Corrosion-Resistant, Powder Coated Epoxy Finish
- Automatic Reset Thermal Overload Protection
Specifications
Specifications
Zoeller 266-0030 Submersible Pump Specifications
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 0.5 HP
- AMP DRAW (full load): 10.4
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 1725 RPM
- MAXIMUM HEAD: 21.5'
- MAXIMUM CAPACITY: 128 GPM
- SWITCH TYPE: Variable Level Float Switch
- SWITCH 'ON' LEVEL: 12"
- SWITCH 'OFF' LEVEL: 4"
- DISCHARGE PIPE SIZE: 2" NPT
- MAXIMUM SOLIDS HANDLING: 2" Spherical Solid
- IMPELLER TYPE: Engineered Plastic w/Metal Inserts, Non-Clogging Vortex
- CORD LENGTH: 25' Power Cord and 20' Cord and Plug
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
Zoeller Model BN266 Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model 260 Product Resources
Download Zoeller Model 260 Catalog Sheet FM0390 Ea
Download Zoeller Model 260 Technical Sheet: Waste Mate 266,267,268
Download Zoeller Model 266 Parts List (M,D,N,E,WM) FM0815
Download Zoeller Model 266 Parts List (H,I,J,F,G) FM2025
Download Zoeller Installation Instructions, 3 - year warranty FM2676
Download Zoeller Sewage Specs, Simplex Systems FM0600
