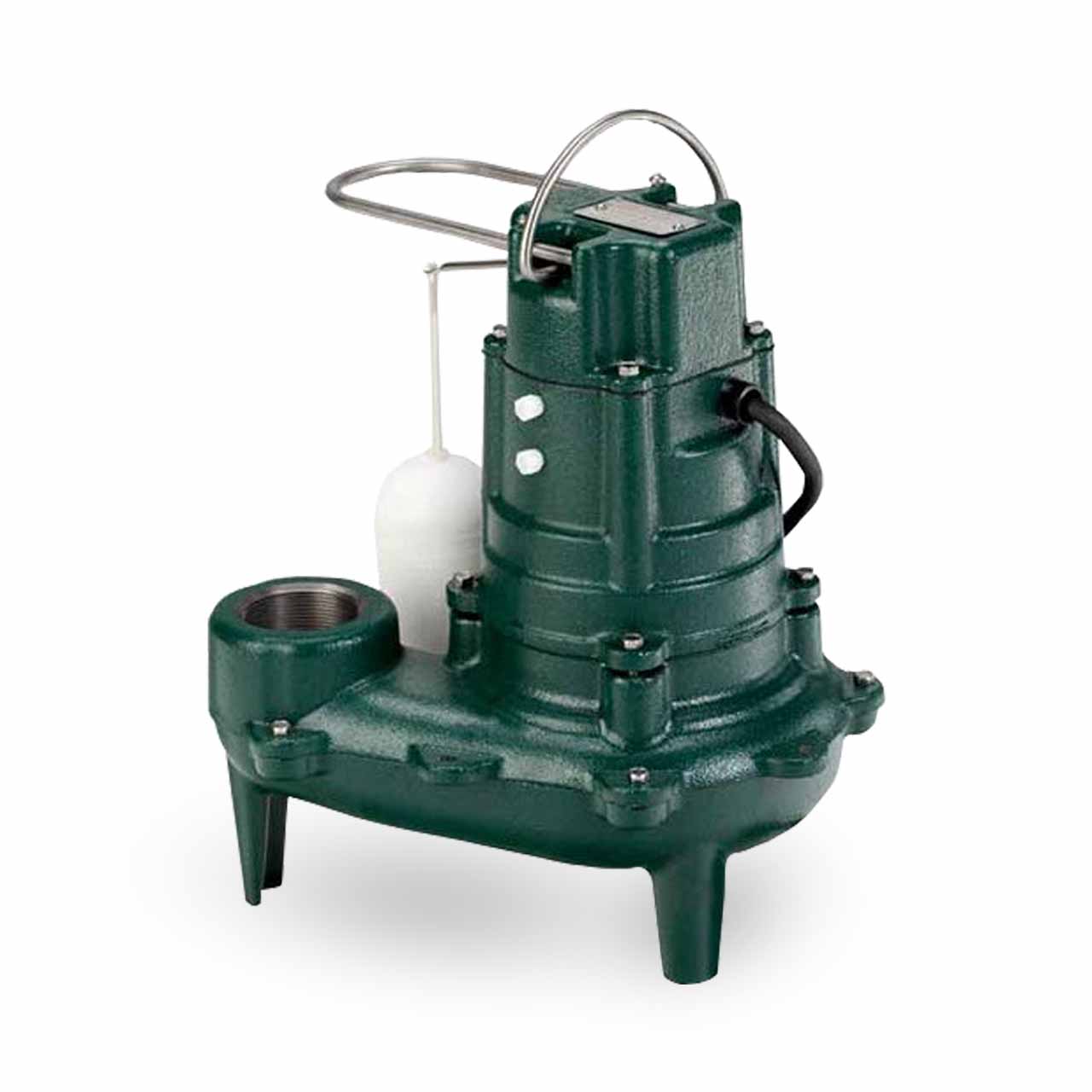

Zoeller 266-0018 Model M266 Sewage Pump 0.5 HP 115V 1PH 25' Cord Automatic

Zoeller 266-0018 Model M266 Sewage Pump 0.5 HP 115V 1PH 25' Cord Automatic

Usually ships within 3 weeks

SKU : ZLR266-0018

In Stock Quantity:0

:
Brand : Zoeller
$592.50 USD
Shipping calculated at checkout.

Description


Zoeller Model 266 Sewage Pump Description

Our Model M266 Sewage Pump with a is designed to remove raw sewage and wastewater in sewage ejector applications. The professional-grade, 1/2 HP 266 is a proven and economical sewage pump. The M266 is a fully automatic float-operated sewage pump. The white polypropylene float is solid so it cannot become waterlogged. This ensures that it is always buoyant and able to turn the pump on when necessary.

The pump’s engineered plastic vortex impeller allows it to pass 2″ spherical solids. The impeller’s smooth surface and clearance in relation to the pump housing allows water and solids to pass freely through the pump. This combination of features lessens the chance of clogging and downtime.

The Model 266’s switch case, motor housing, and pump housing are each constructed of cast iron. The pump’s identification tag, float guard, handle, switch arm, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 266 is able to withstand the demands of residential sewage ejector applications.

Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.

Zoeller Model 266 Sewage Pump Features and Benefits

  • Oil-Filled Motor and Cast Iron Motor Housing for Optimal Heat Dissipation which Prevents the Pump from Overheating
  • Automatic Pump with a Time-Tested, Reliable, Preset, Built-In Snap Action that Makes for Easy Installation
  • Corrosion Resistant Engineered Plastic Vortex Impeller to Allow Free Passage of 2" Spherical Solids which Prevents Clogging and Increases Reliability
  • Stainless Steel Float Guard that Prevents Material or Debris from Collecting on the Float Ensuring Proper Operation Every Time
  • Solid, Buoyant, Polypropylene Float to Eliminate the Possibility of Water Infiltration Allowing the Float to Remain Buoyant and Functional at all Times
  • Powder-Coated Epoxy Finish Provides Corrosion-Resistance and Extends the Life of the Pump in Harsh Environments
  • Stainless Steel Screws, Switch Arm, Guard, Handle and Hardware to Prevent Rust and Corrosion Over the Life of the Pump
  • 100% Factory Tested - Every Pump is Submerged in Water and Tested at the Factory to Ensure that it Performs as Expected When You Receive it
  • Comes with a 3-Year Limited Warranty Giving You Protection Over Your Investment and the Peace of Mind you Expect in a Quality Product

Specifications

Zoeller 266-0018 Sewage Pump Specifications

  • VOLTAGE: 1ø, 115V, 60Hz
  • HORSEPOWER: 0.5 HP
  • AMP DRAW (full load): 10.4
  • MOTOR TYPE: Permanent Split Capacitor (PSC)
  • RPM: 1725 RPM
  • MAXIMUM HEAD: 21.5'
  • MAXIMUM CAPACITY: 128 GPM
  • SWITCH TYPE: Automatic
  • SWITCH 'ON' LEVEL: 12"
  • SWITCH 'OFF' LEVEL: 4"
  • DISCHARGE PIPE SIZE: 2" NPT
  • MAXIMUM SOLIDS HANDLING: 2" Spherical Solid
  • IMPELLER TYPE: Engineered Plastic w/Metal Inserts, Non-Clogging Vortex
  • CORD LENGTH: 25' Type UL Listed, 3-Wire Neoprene Cord and Plug
  • BODY CONSTRUCTION: Cast Iron
  • MAXIMUM OPERATING TEMPERATURE: 130°F (54C)

Zoeller Model 266 Sewage Pump Performance Curve



WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Zoeller Model 266 Sewage Pump Product Resources


Download Zoeller Model 266/267 Sewage Pump Catalog Sheet FM3121

Download Zoeller Model 266/267 Sewage Pump Technical Sheet FM2789

Download Zoeller Model 266 Sewage Pump Parts List FM0815

Download Zoeller Model 266/267 Sewage Pump Installation Instructions FM2676

Download Zoeller Sewage Specs, Simplex Systems FM0600

Download Zoeller Sewage Specs, Duplex Systems FM0615
