Zoeller 185-0051 Model JX185 Explosion Proof High Head Effluent Pump 1.0 HP 200V 3PH 50' Cord Nonautomatic
Zoeller 185-0051 Model JX185 Explosion Proof High Head Effluent Pump 1.0 HP 200V 3PH 50' Cord Nonautomatic
SKU : ZLR185-0051
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued

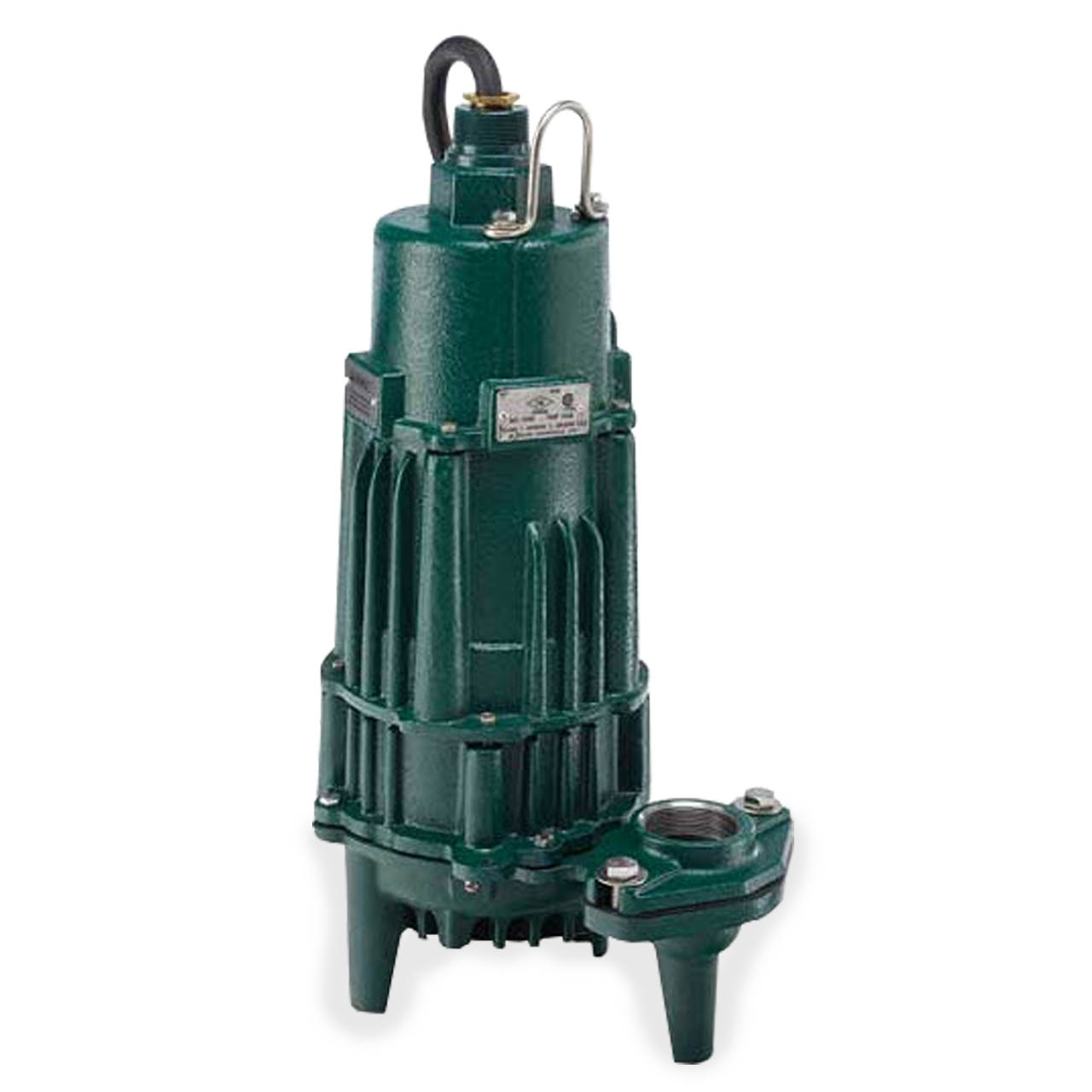

Zoeller Model JX185 Explosion Proof High Head Effluent Pump Description
This series of submersible pumps is designed for use in residential or commercial dewatering and effluent applications in Class I, Division 1, Group C and D environments. Each pump is FM/CSA approved and features innovative motor and electrical enclosures that are designed to reduce the risk of vapor ignition both inside and outside the pump. Should vapors inside the electrical enclosures become ignited, the enclosures are engineered to contain the event and prevent escalation. Each pump is constructed of hardware that will allow it to operate safely and efficiently in extreme conditions. As with every Zoeller pump, each one is 100% factory tested to ensure quality and reliability for years of trouble-free performance!
Zoeller Model JX185 Explosion Proof High Head Effluent Pump Features and Benefits
- cCSAus Rated Class I, Division 1, Groups C & D and Class Zone 1, Groups IIA & IIB Construction
- Tested to FM Standards 3600 and 3615 by CSA
- Automatic or Non-Automatic. Automatic Units Patent No. 8,535,014
- Non-Clogging Vortex Impeller Design, Bronze Class 88-8-0-4
- Sensor Leads and Power Leads in One Cord for Easy Installation
- Durable Cast Iron (class 30, 30000# tensile strength) Constructed Cover, Motor Adapter and Pump Housing
- 1-1/4" NPT (nonauto), 1-1/2" NPT (auto): Threaded Conduit Connection for Protecting Cords in Extra Heavy Duty Applications
- Stainless Steel Plate, Bolts, Handle, Guard and Float Rod Guide, Switch Arm, Rotor Shaft and Actuator Assembly
- Moisture Sensors Prewired in Motor Housing (functionality requires indicator circuit in panel)
- Zoeller Control Panel with Intrinsically Safe Relays and Moisture Indicator is Required with Nonautomatic Units. (Simplex Panel 10-1242 and Duplex Panel 10-1297)
- Oil-Filled, Hermetically Sealed Motor, Automatic Reset Thermal Overload Protected
- Maximum Temperature for Effluent or Dewatering: 104°F (40°C)
- Model X180 Pumps Pass 3/4" Spherical Solids; Model X191 Pumps Pass 5/8" Spherical Solids
- 1 ½” NPT Discharge Standard 2” NPT FLANGE KIT or 3” NPT FLANGE KIT Available
- Corrosion-Resistant, Powder Coated Epoxy Finish
Specifications
Specifications
Zoeller 185-0051 Explosion Proof High Head Effluent Pump Specifications
- VOLTAGE: 3ø, 200V, 60Hz
- HORSEPOWER: 1.0 HP
- AMP DRAW (full load): 7.5
- MOTOR TYPE: 3 Phase
- RPM: 3450
- MAXIMUM HEAD: 73'
- MAXIMUM CAPACITY: 84 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 1-1/2" NPT
- MAXIMUM SOLIDS HANDLING: 3/4" Spherical Solid
- IMPELLER TYPE: Bronze, Non-Clogging Vortex
- CORD LENGTH: 50' Type UL listed 8-wire SOOW Cord
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 104°F (40C)
- HAZARDOUS DUTY: Class I, Division 1, Groups C & D and Class Zone 1, Groups IIA & IIB Construction
Zoeller Model JX185 Performance Curve
