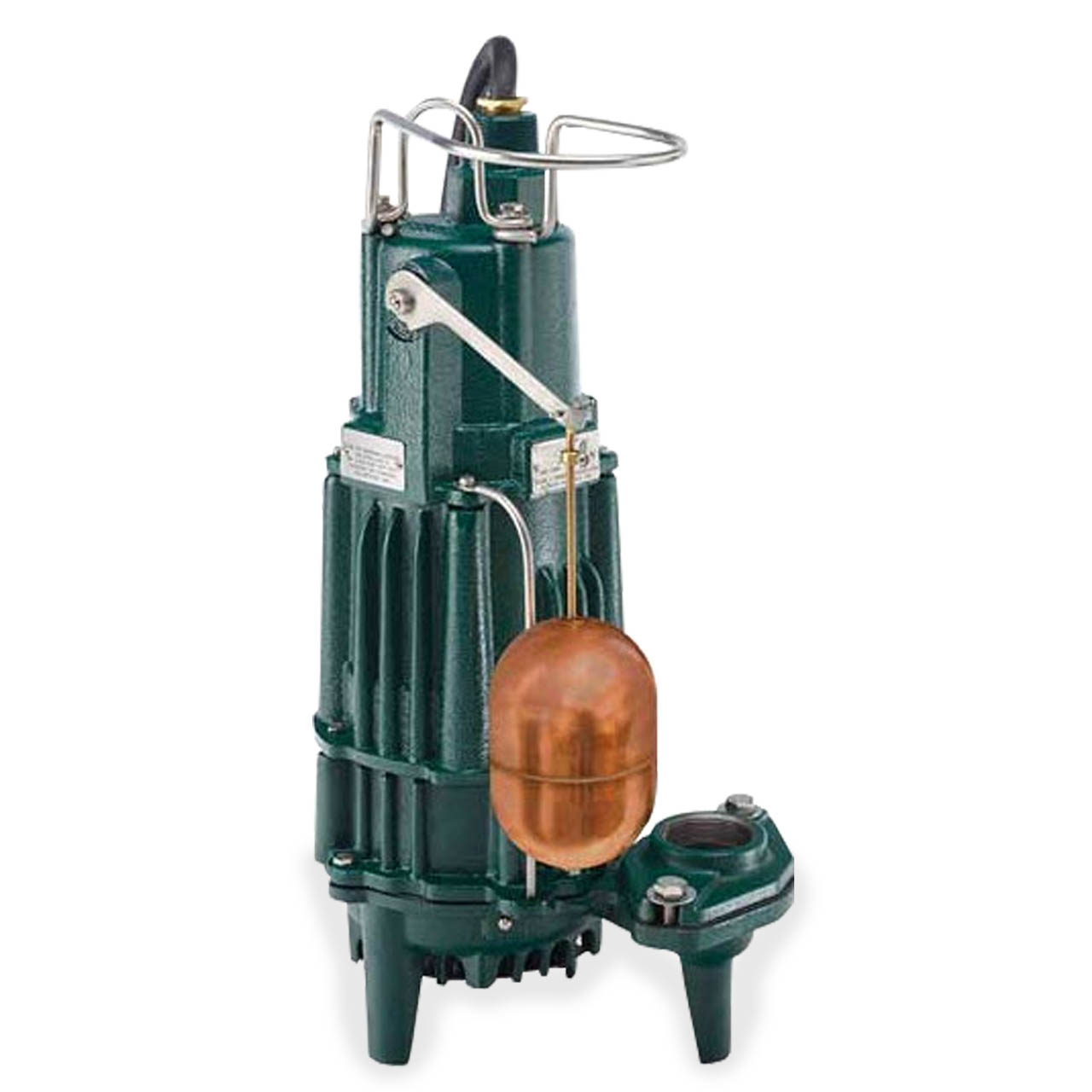

Zoeller 185-0040 Model DX185 Explosion Proof High Head Effluent Pump 1.0 HP 230V 1PH 50' Cord Automatic
Zoeller 185-0040 Model DX185 Explosion Proof High Head Effluent Pump 1.0 HP 230V 1PH 50' Cord Automatic
SKU : ZLR185-0040 50
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued
Zoeller Model DX185 High Head Effluent Pump Description
This series of submersible pumps is designed for use in residential or commercial dewatering and effluent applications in Class I, Division 1, Group C and D environments. Each pump is FM/CSA approved and features innovative motor and electrical enclosures that are designed to reduce the risk of vapor ignition both inside and outside the pump. Should vapors inside the electrical enclosures become ignited, the enclosures are engineered to contain the event and prevent escalation. Each pump is constructed of hardware that will allow it to operate safely and efficiently in extreme conditions. As with every Zoeller pump, each one is 100% factory tested to ensure quality and reliability for years of trouble-free performance!
Zoeller Model DX185 High Head Effluent Pump Features and Benefits
- Durable Cast Iron (class 30, 30000# tensile strength) Constructed Cover, Motor Adapter and Pump Housing
- Stainless Steel Plate, Bolts, Handle, Guard and Float Rod Guide, Switch Arm, Rotor Shaft and Actuator Assembly
- Brass Float and Float Rod
- Moisture Sensors Prewired in Motor Housing (functionality requires indicator circuit in panel)
- Simplex Seal-Fail Panel #10-1031 Available for Automatic Units.
- Oil-Filled, Hermetically Sealed Motor, Automatic Reset Thermal Overload Protected
- Maximum Temperature for Effluent or Dewatering: 104°F (40°C)
- 1 ½” NPT Discharge Standard with a 2” NPT FLANGE KIT or 3” NPT FLANGE KIT Available, Specify when Ordering
- Corrosion-Resistant, Powder Coated Epoxy Finish
Specifications
Specifications
Zoeller Model DX185 High Head Effluent Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 1.0 HP
- AMPS: 9.8
- MOTOR TYPE: Permanent Split Capacitor
- RPM: 3450 RPM
- MAX HEAD: 73'
- MAX FLOW RATE: 84 GPM
- SWITCH 'ON' LEVEL: 19 1/2"
- SWITCH 'OFF' LEVEL: 9 3/4"
- DISCHARGE SIZE: 1 1/2" NPT
- SOLIDS HANDLING: 3/4" Spherical Solid
- IMPELLER TYPE: Bronze, Non-Clogging Vortex
- CORD LENGTH: 50'
- CORD TYPE: UL listed 5-wire (1 Ph) or 8-wire (3 Ph) SOOW
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 104°F (40C)
Zoeller Model DX185 Performance Curve
