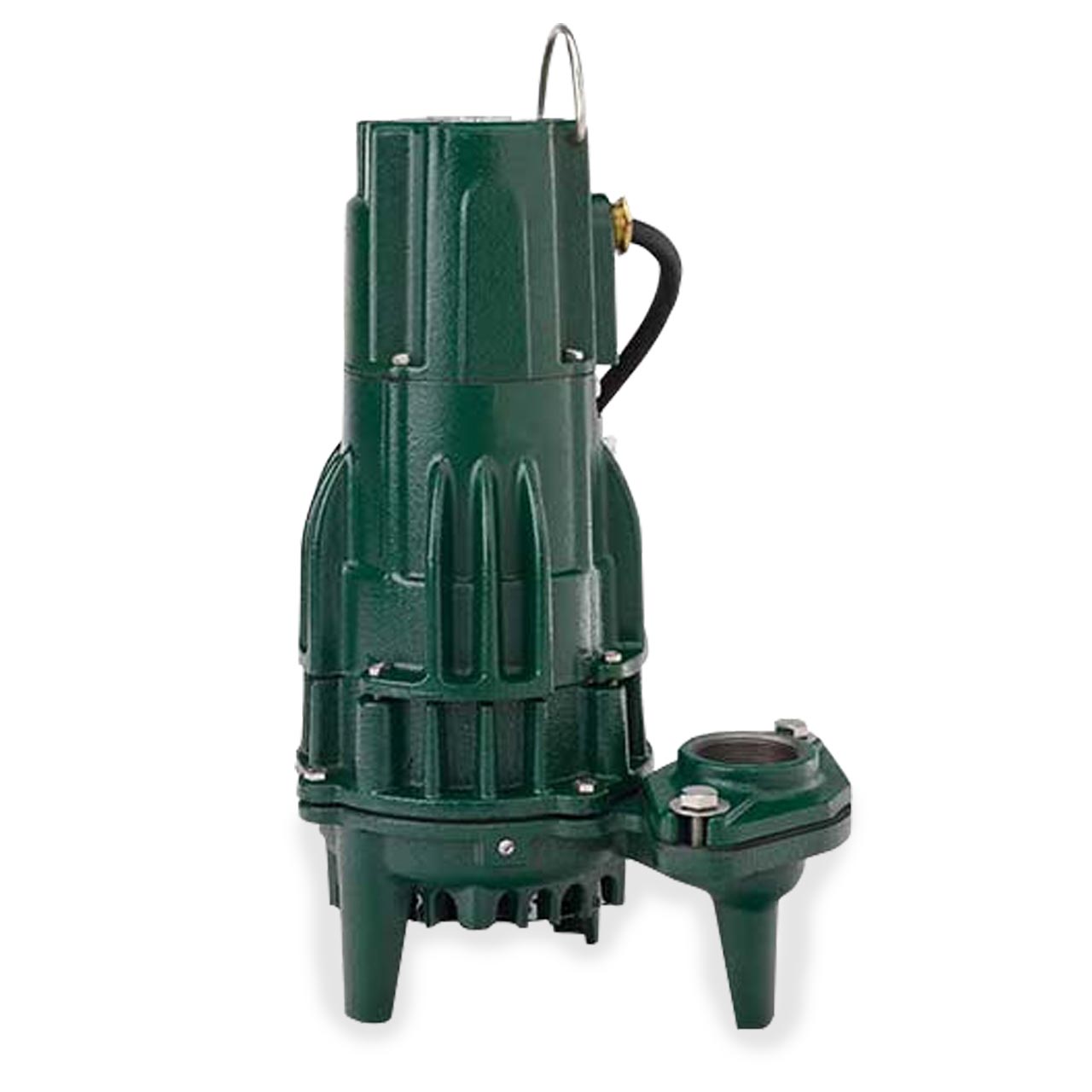

Zoeller 185-0006 Model F185 High Head Effluent Pump 1.0 HP 230V 3PH 20' Cord Nonautomatic
Zoeller 185-0006 Model F185 High Head Effluent Pump 1.0 HP 230V 3PH 20' Cord Nonautomatic
SKU : ZLR185-0006
In Stock Quantity:0
:
Brand
:
Regular price
$1,498.40 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Zoeller Model F185 High Head Effluent Pump Description
The Flow-Mate series of submersible pumps is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater or effluent. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion, and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller® pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance!
Zoeller Model F185 High Head Effluent Pump Features and Benefits
- Cast Iron Switch Case, Base, Motor and Pump Housing
- Stainless Steel Screws, Bolts, Float Rod, Handle, Guard, Arm and Seal Assembly
- Oil Filled, Hermetically Sealed, Automatic Reset Thermal Overload Protection
- Maximum Temperature for Effluent or Dewatering: 130°F (54°C)
- Stainless Steel Carbon and Ceramic Rotary Shaft Seal
- 1 ½” NPT Discharge Standard, Optional 2” NPT FLANGE KIT or 3” NPT FLANGE KIT Available
- Corrosion-Resistant, Powder Coated Epoxy Finish
Specifications
Specifications
Zoeller Model F185 High Head Effluent Pump Specifications
- VOLTAGE: 3ø, 230V, 60Hz
- HORSEPOWER: 1 HP
- AMPS: 7.4
- MOTOR TYPE: 3 Phase
- RPM: 3450 RPM
- MAX HEAD: 73'
- MAX FLOW RATE: 85 GPM
- SWITCH 'ON' LEVEL: 15 3/4"
- SWITCH 'OFF' LEVEL: 5 1/4"
- DISCHARGE SIZE: 1 1/2" NPT Vertical Discharge
- SOLIDS HANDLING: 3/4" Spherical Solid
- IMPELLER TYPE: Bronze, Non-Clogging Vortex
- CORD LENGTH: 20'
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
Zoeller Model F185 Performance Curve
