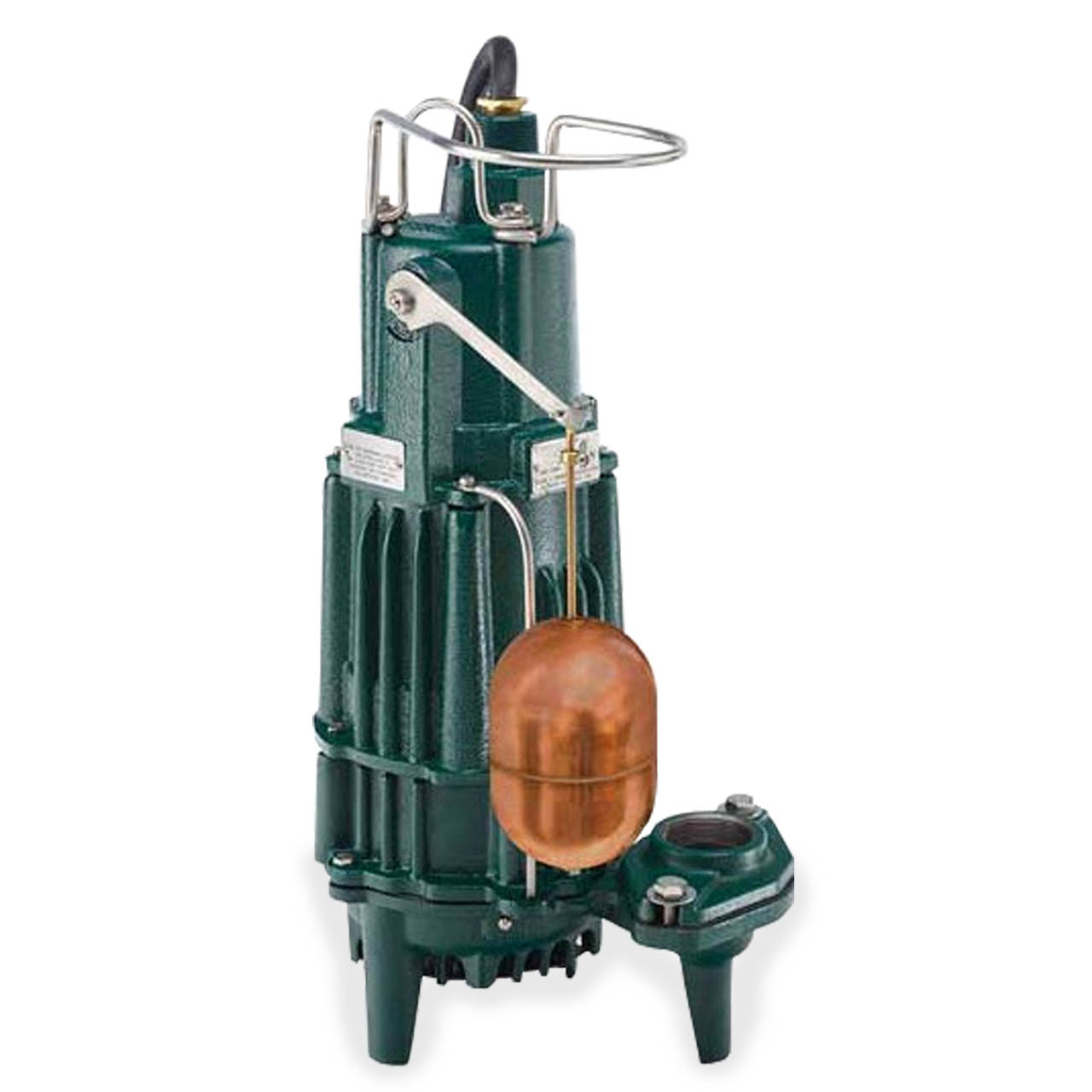

Zoeller 165-0057 Model DX165 Explosion Proof High Head Effluent Pump 1.0 HP 230V 1PH 20' Cord Automatic
Zoeller 165-0057 Model DX165 Explosion Proof High Head Effluent Pump 1.0 HP 230V 1PH 20' Cord Automatic
SKU : ZLR165-0057
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
DISCONTINUED - Sump and Effluent Pumps
Zoeller Model DX165 Explosion Proof High Head Effluent Pump Description
This series of submersible pumps is designed for use in residential or commercial dewatering and effluent applications in Class I, Division 1, Group C and D environments. Each pump is FM/CSA approved and features innovative motor and electrical enclosures that are designed to reduce the risk of vapor ignition both inside and outside the pump. Should vapors inside the electrical enclosures become ignited, the enclosures are engineered to contain the event and prevent escalation. Each pump is constructed of hardware that will allow it to operate safely and efficiently in extreme conditions. As with every Zoeller pump, each one is 100% factory tested to ensure quality and reliability for years of trouble-free performance!
Zoeller Model DX165 Explosion Proof High Head Effluent Pump Features and Benefits
- cCSAus Rated Class I, Division 1, Groups C & D and Class Zone 1, Groups IIA & IIB Construction
- Tested to FM Standards 3600 and 3615 by CSA
- WARNING: Not for use in Acidic, Methanol, or Ethyl Acetate Atmospheres
- Non-Clogging Vortex Impeller Design, Bronze Class 88-8-0-4
- Stainless Steel Rotor Shaft
- Durable Cast Construction: Cast Iron Cover, Motor Adapter and Pump Housing All Cast Iron Class 30, 30000# Tensile Strength
- 20' (6 m), UL Listed, 5-Wire (1PH) or 8-Wire (3PH) Neoprene Cord. Extra Cord Lengths Available in 25', 35' and 50' (8, 11 and 15 m) Sensor Leads and Power Leads in One Cord for Easy Installation
- Stainless Steel Plate, Bolts, Handle, Guard and Float Rod Guide, Switch Arm and Actuator Assembly
- Brass Float and Float Rod (automatic only)
- Threaded Conduit Connection for Protecting Cords in Extra Heavy-Duty Applications: 1-1/2" NPT
- Moisture Sensors Prewired in Motor Housing (functionality requires indicator in panel)
- Zoeller Control Panel with Intrinsically-Safe Relays and Moisture Indicator is Required with Nonautomatic Units (Simplex panel 10-1218 and Duplex panel 10-1224)
- Motor - 3450 RPM, Oil Filled, Hermetically Sealed, Automatic Reset Thermal Overload Protected (3 Phase requires circuit in control panel)
- Maximum Temperature for Effluent or Dewatering: 104°F (40°C)
- All Models Pass 3/4" (19 mm) Spherical Solids
- 1 ½” NPT Discharge Standard 2” NPT FLANGE KIT or 3” NPT FLANGE KIT Available
- Corrosion-Resistant, Powder Coated Epoxy Finish with Stainless Steel Screws and Handle
Specifications
Specifications
Zoeller 165-0057 Explosion Proof High Head Effluent Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 1.0 HP
- AMP DRAW (full load): 10.2
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3450
- MAXIMUM HEAD: 86.5'
- MAXIMUM CAPACITY: 62 GPM
- SWITCH TYPE: Automatic
- SWITCH 'ON' LEVEL: 19-1/2"
- SWITCH 'OFF' LEVEL: 9-3/4"
- DISCHARGE PIPE SIZE: 1-1/2" NPT
- MAXIMUM SOLIDS HANDLING: 3/4" Spherical Solid
- IMPELLER TYPE: Bronze, Non-Clogging Vortex
- CORD LENGTH: 20' Type UL listed 5-wire SOOW Cord
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 104°F (40C)
- HAZARDOUS DUTY: Class I, Division 1, Groups C & D and Class Zone 1, Groups IIA & IIB Construction
Zoeller Model DX165 Performance Curve
